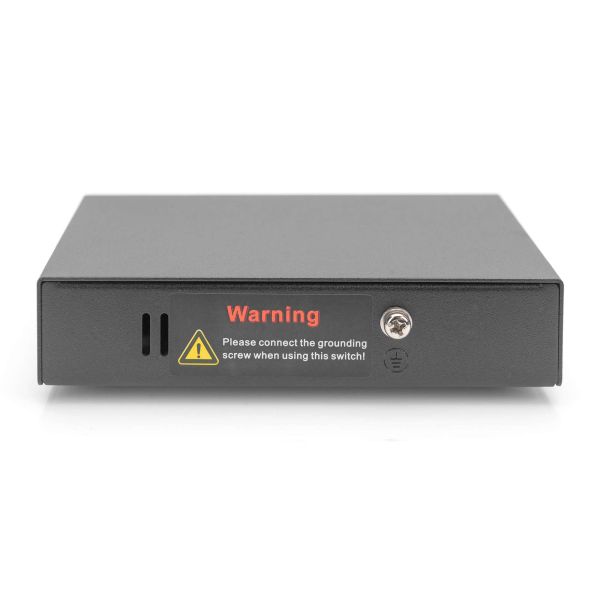

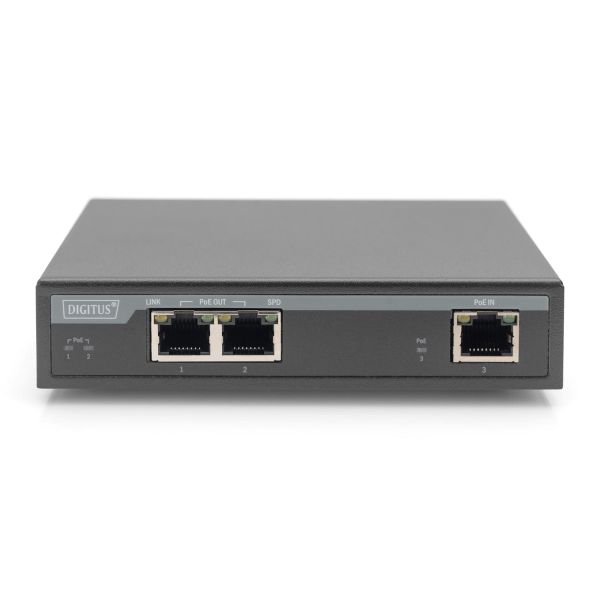

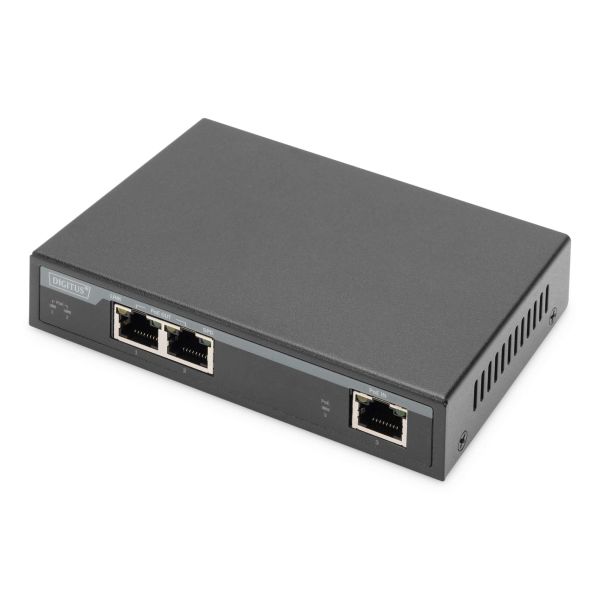

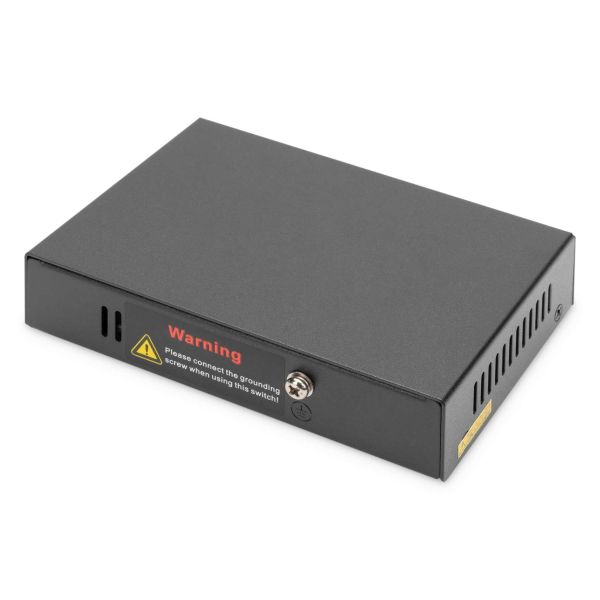

Digitus DN-95127-1 PoE adapter & injector Gigabit Ethernet 57 V

Digitus DN-95127-1, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, Volledig, Cat5e, Zwart

Ruim op voorraad

Fabrikant Digitus
MPN DN-95127-1
EAN 4016032486114
€ 55,00 excl. BTW

Digitus DN-95127-1 PoE adapter & injector Gigabit Ethernet 57 V

Extends the range of your PoE network by up to 100 m

- Supports 1 / 2 ports with PoE+, PoE
- Transmits data and power via a network cable to your (PoE) network devices
- No additional power adaptor required
- Automatic detection of PoE network devices
- Easy plug-and-play installation
- Full bandwidth over the entire PoE distance

The DIGITUS® Gigabit 4PPoE Extender supports the latest networking technology to extend your Ethernet signal to up to 100 metres. The amplifier is powered by 4PPoE (4-Pair Power over Ethernet or lower), so you do not need an additional power adaptor and can use the device, even where there are no power cables or sockets, to significantly increase the network range. With the PoE+ and 4PPoE support, you can also connect devices with higher power consumption, such as access points, POS systems or video telephones. Choose future-orientated 4PPoE technology with the Gigabit 4PPoE Extender from DIGITUS®.
  • PoE inputs: 1x 10/100/1000Base-T RJ45
  • PoE outputs: 2x 10/100/1000Base-T RJ45
  • PoE input voltage: 50 – 57 V/DC, up to 60 W (max. class 5 - 4PPoE)
  • PoE output voltage: 44 – 57 V/DC, up to 30 W per port, max. 60 W
  • PoE power budget: 45 W @ IEEE 802.3at for 4PPoE input
  • PoE power budget: 20 W @ IEEE 802.3at for PoE+ input
  • PoE power budget: 10 W @ IEEE 802.3af for PoE input
  • PoE input PIN assignment: 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
  • PoE output PIN assignment: 1/2 (-), 3/6 (+)
  • Meets the following standards: IEEE802.3af (PoE), IEEE802.3at (PoE+), IEEE802.3at (4PPoE)
  • LED indicators: PoE active / link active
  • Recommended network cables: CAT 5e or higher
  • Max. forwarding rate: 1.488 Mpps per port / 7.44 Mpps total
  • Switch architecture: Store and forward
  • MAC addresses: 2K
  • Backplane bandwidth: 6 Gbps
  • Buffer: 2 Mbps
  • IEEE 802.3x full-duplex flow control
  • Operation temperature: 0 °C – 40°C
  • Operating humidity: max. 90% (non-condensing)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Ethernet interface type
Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3af, IEEE 802.3at
Duplex systeem
Volledig
Ondersteundende kabel types
Cat5e

Kenmerken

Kleur van het product
Zwart
Gemakkelijk te installeren
Ja
Maximale afstand
100 m
LED-indicatoren
Link, Power over Ethernet (PoE)
Pintoewijzing & polariteit
1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
Land van herkomst
China

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
3
RJ-45 invoer ports
1
RJ-45 uitgang ports
2

Energie

Stroom via Ethernet (PoE)*
57 V
Uitgangsvermogen
60 W
Totaal Power over Ethernet (PoE)-budget
45 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Verpakking

Breedte verpakking
127 mm
Diepte verpakking
50 mm
Hoogte verpakking
167 mm
Gewicht verpakking
428,333 g
Verpakkingsvolume
1060,45 cm³

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Snelle installatiehandleiding
Ja

Logistieke gegevens

Code UK-handelstarief
85176200
