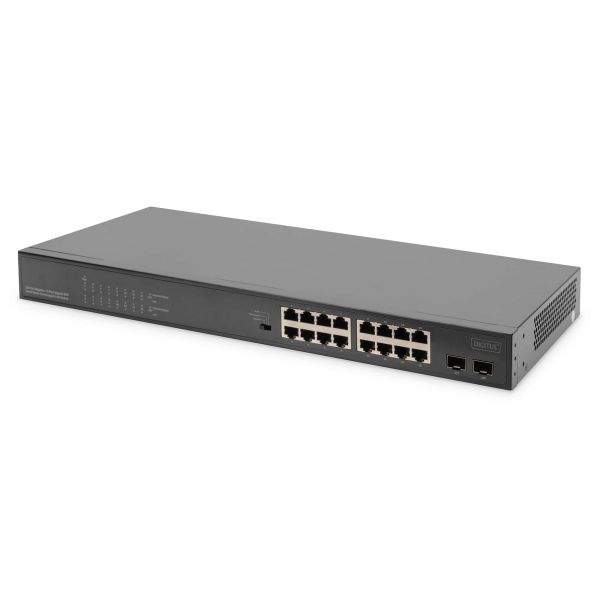

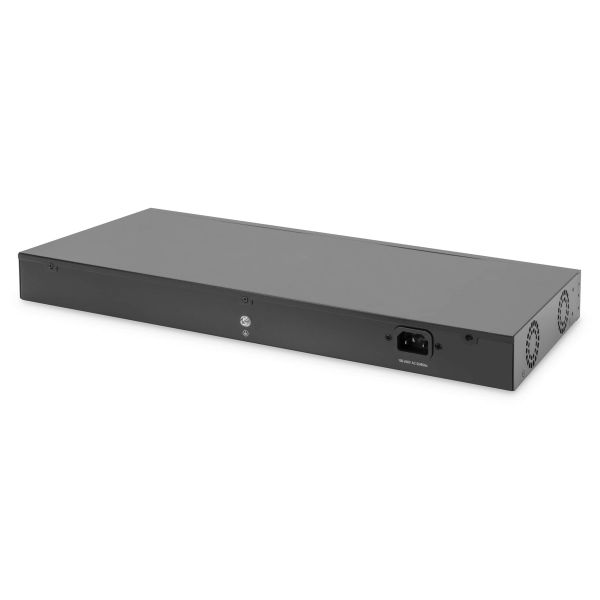

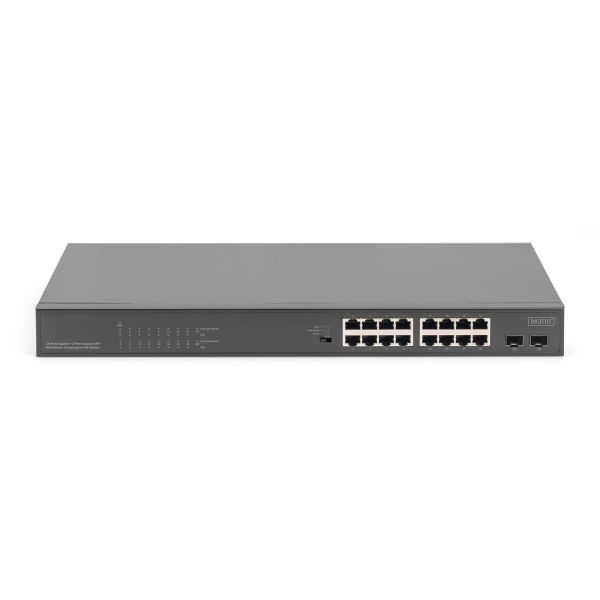

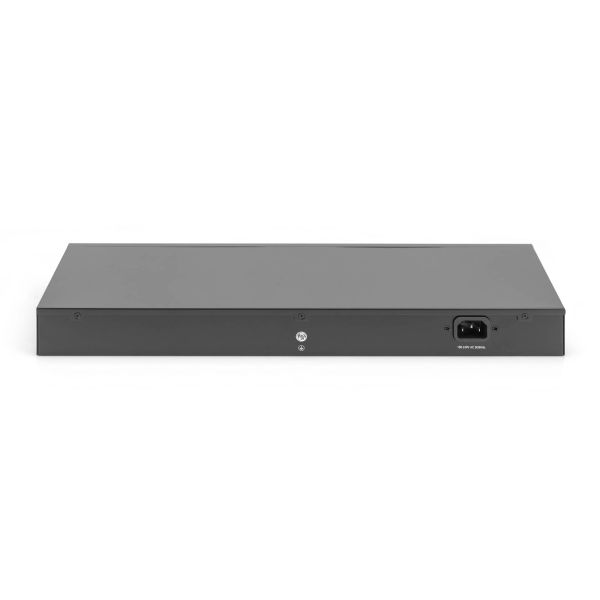

Digitus DN-95347-1 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Grijs

Digitus DN-95347-1, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Rack-montage, 1U

Nog slechts 6 beschikbaar

Fabrikant Digitus
MPN DN-95347-1
EAN 4016032480853
€ 255,00 excl. BTW

Digitus DN-95347-1 netwerk-switch Unmanaged Gigabit Ethernet (10/100/1000) 1U Grijs

Gigabit Ethernet PoE Switch 16-port PoE + 2-port SFP, 247W PoE budget

- Thanks to the PoE function, no additional power supply unit is required for the connected devices
Minimize cabling for wireless APs, IP telephones, and any other PoE capable device
- Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
- PoE power budget: 247 Watts
- Gigabit Ethernet Speed
- Additional 2 port SFP-Uplink for Fiber Technology
- Rack mountable in system rack (1U)
- 2 adaptive 1000 Mbps fiber optic ports;
- The UTP port supports the auto-negotiation function and automatically configures the transmission mode and the transmission rate;
- Use of Store-and-Forward architecture

"The DIGITUS 16-Port Gigabit Rack mount Switch with sixteen Power over Ethernet ports and two additional SFP Fiber Port, offers your network significant improvement in terms of performance and efficiency. Thanks to PoE support, you only need a single (network) cable for power and data transfer. This switch makes it much easier to connect devices such as access points, network cameras, and IP telephones, and requires far less cabling than alternatives. It also allows you to extend your network in places where there are no power supply cables or sockets available. The switch does not require any configuration and therefore guarantees quick and seamless integration into the network.

Moreover, can be manually switched to a Normal mode, or Flow Control mode, or VLAN mode to suitable for various occasions flexibly. Based on Gigabit Ethernet Technology, it is essential to helping solve network bottlenecks that frequently develop as more advanced computer users and newer applications continue to demand greater network resources.
  • Comply with IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3az standards
  • Support IEEE802.3af, IEEE802.3at standards
  • Supporting Normal mode, VLAN mode and Extend mode, flexible to switch
  • The maximum output power of a single port is 30W, and the total output power of PoE is 247W
  • Flow control method: Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard
  • Support MAC address self-learning
  • 16 x 10/100 /1000 Mbps self-adaptive RJ45 ports, support port auto flip (Auto MDI / MDIX)
  • The UTP port supports the auto-negotiation function and automatically adjusts the transmission mode and transmission rate
  • Use store-and-forward architecture
  • Backplane: 36Gbps
  • Packet forwarding rate: 26.784Mbps
  • Packet Cache: 4.1Mbit
  • Mac address table: 8K
  • Jumbo frame: 10K Bytes
  • LED indicators for monitoring power, link/activity
  • Working Mode-Normal mode: Enable Flow Control and all ports can communicate with each other.
  • Working Mode-Flow Control mode: Disable Flow Control and all ports can communicate with each other.
  • Working Mode-VLAN mode: Port 1-16 cannot communicate with each other, but can communicate with the uplink port 17F-18F.
  • Power supply: AC 100-240V 50 / 60Hz Built-in power
  • Power consumption: Max (full load on the port): 297W (220V / 50Hz)
  • Dimensions: 440 * 240 * 44mm

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Unmanaged

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
16
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal Gigabit Ethernet (koper)-poorten
16
Aantal geïnstalleerde SFP modules*
2
Netstekker
AC-in-aansluiting

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
Nee
Full duplex
Ja
Half-duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Auto-negotiation
Ja
VLAN=ondersteuning
Nee

Data-uitwisseling

Switchingcapaciteit*
36 Gbit/s
Verzending snelheid
26,784 Mpps
MAC-adrestabel*
8000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Packet buffergeheugen
4,1 MB

Design

Rack-montage*
Ja
Stapelbaar*
Nee
Vormfactor
1U
Kleur van het product
Grijs

Design

Materiaal behuizing
Metaal
LED-indicatoren
Ja
Vandaalbestendig
Nee
Geschikt voor buitengebruik
Nee
Land van herkomst
China

Energie

Stroombron*
AC
Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
297 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Nee
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
247 W

Gewicht en omvang

Breedte
440 mm
Diepte
240 mm
Hoogte
44 mm

Verpakking

Meegeleverde kabels
AC
Snelstartgids
Ja
Breedte verpakking
555 mm
Diepte verpakking
295 mm
Hoogte verpakking
88 mm
Verpakkingsvolume
14407,8 cm³
Gewicht verpakking
3,9 kg

Logistieke gegevens

Code UK-handelstarief
85176200
