Digitus DN-95417 energiedistributie 6 AC-uitgang(en) 0U/1U Zwart, Zilver

Digitus DN-95417, Basis, 0U/1U, Aluminium, Kunststof, Zwart, Zilver, 6 AC-uitgang(en), Type F

Nog slechts 9 beschikbaar

Fabrikant Digitus
MPN DN-95417
EAN 4016032456636
€ 32,00 excl. BTW

Digitus DN-95417 energiedistributie 6 AC-uitgang(en) 0U/1U Zwart, Zilver

Safety, order and flexibility in the server rack - the DIGITUS® 482.6 mm (19") socket strips.

- Orderly power supply in the 19" rack
- Mounting bracket for 19" mounting included
- Variable fixing of the bracket in 8 positions (4 x 45°/4 x 90°)
- Clever, space-saving 45° arrangement of sockets
- No blocking of adjacent sockets

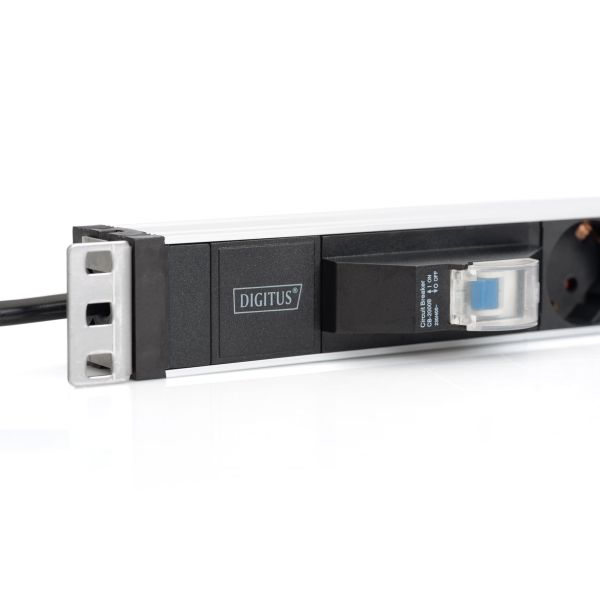

- Safety through the integrated circuit breaker

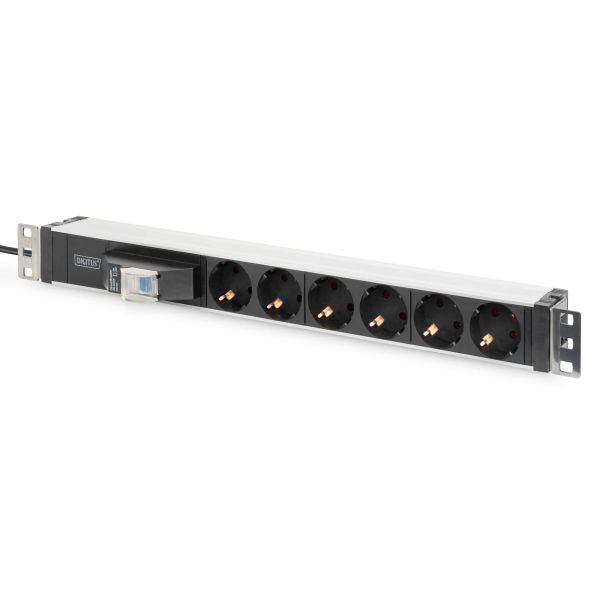

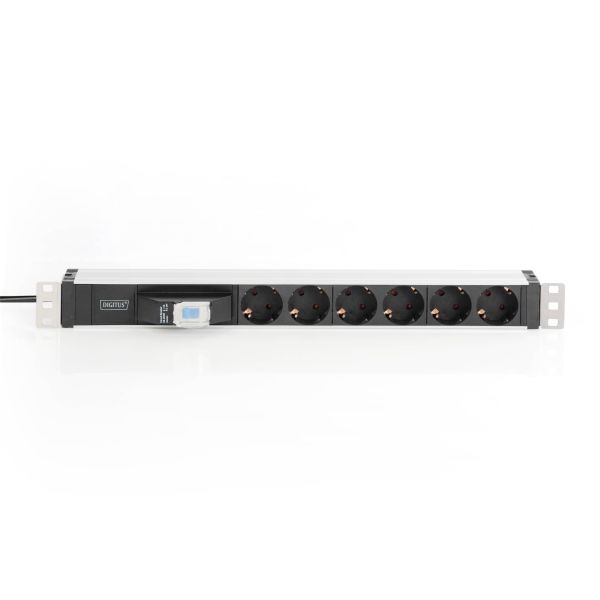

Order and flexibility in the server rack with the DIGITUS® professional socket strips. Plug your devices centrally into the 45° arranged shockproof sockets. Therefore, blocked or obscured adjacent sockets are a thing of the past. The socket strips are perfectly suited for 482.6 mm (19") server racks and network cabinets and offer sophisticated features. With the supplied mounting brackets, the socket strip fits easily into the 482.6 mm (19") grid of your network cabinet and looks neatly arranged. Designed for horizontal mounting, with vertical mounting being possible as well. In addition, the mounting bracket can be fixed on the socket strip in 8 different positions, 45° and 90° in 4 directions. The supply lines to the socket strip are protected by the integrated circuit breaker, which prevents overloading of the feed cabling.
  • 6 child safety outlets 250VAC 50/60Hz / 16A / 4000W

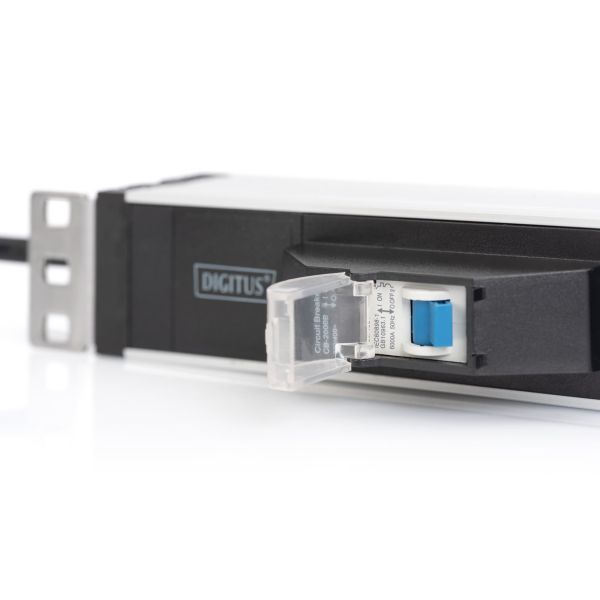

  • Circuit Breaker: 16 A, Type-C
  • Circuit breaker: Short-circuit breaking capacity (Icn & Ics) - 6000A
  • 45° arranged sockets: No blocking or obscuring of adjacent sockets
  • Mounting bracket for 482.6 mm (19") mounting
  • Mounting brackets are variably fixed in 8 positions, 90° and 45° in 4 directions
  • High quality aluminum casing
  • Child safety device: Plastic covers close the contacts on the socket
  • Input voltage: 230 V/AC
  • Frequency: 50 ~ 60 Hz

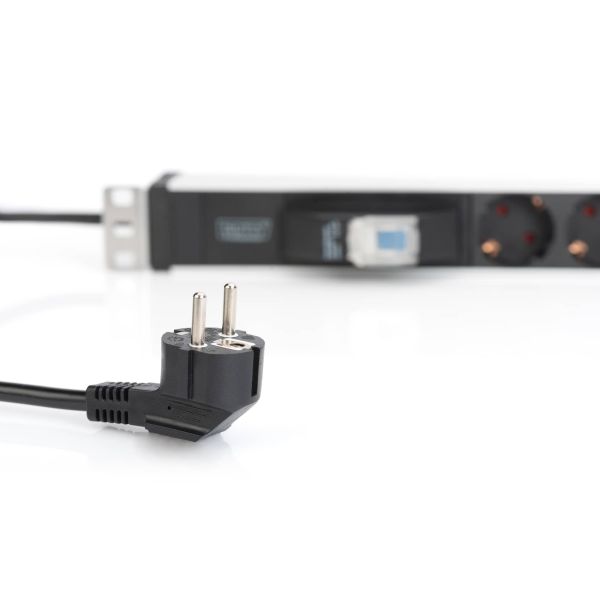

  • Mains supply line with earthing contact plug: 1.8 m, 3G x 1.5 mm²
  • Measurements: L 48,1 x B 4,5 x H 8,3 cm
  • Weight: 800 g
  • Color: silver/black

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Basis
Rackcapaciteit*
0U/1U
Materiaal behuizing
Aluminium, Kunststof
Kleur van het product
Zwart, Zilver

Poorten & interfaces

Aantal AC uitgangen*
6 AC-uitgang(en)
Stekker
Type F
Stopcontacttypes*
Type F

Kenmerken

Snoerlengte
1,8 m

Energie

Nominale input voltage*
250 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom (max.)*
16 A
Netspanning, in bedrijf
230 V
Laad-capaciteit
3600 VA
Aantal fases
1

Energie

Stroomspanning bescherming
Kortsluiting
Maximaal vermogen
4000 W

Gewicht en omvang

Breedte
45 mm
Diepte
481 mm
Hoogte
83 mm
Gewicht
800 g
Maat
48,3 cm (19")

Verpakking

Gewicht verpakking
800 g
Breedte verpakking
120 mm
Diepte verpakking
780 mm
Verpakkingsvolume
7956 cm³

Logistieke gegevens

Code UK-handelstarief
85444290
Land van herkomst
China
