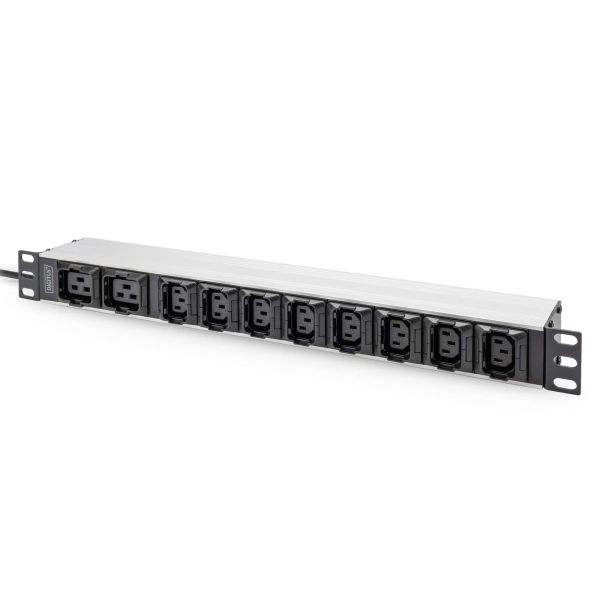

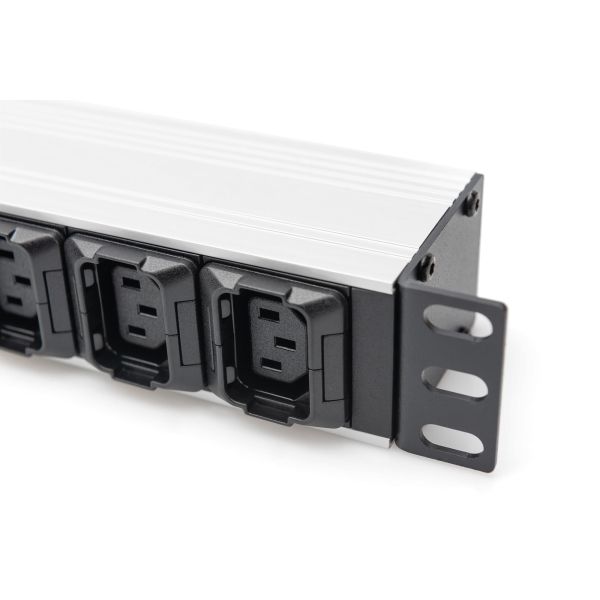

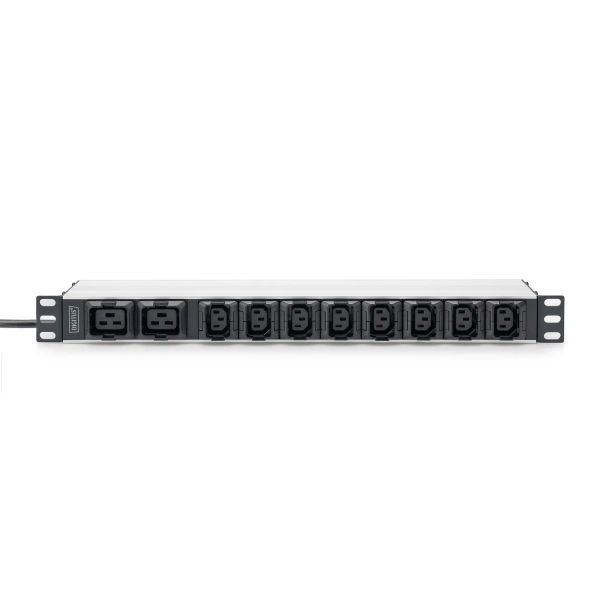

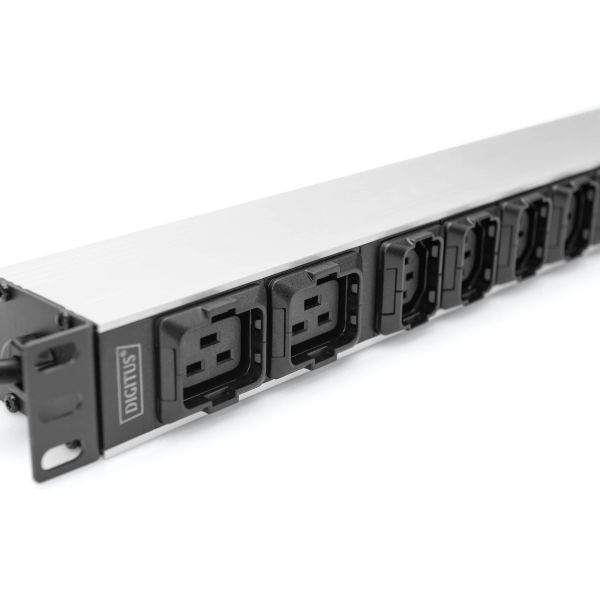

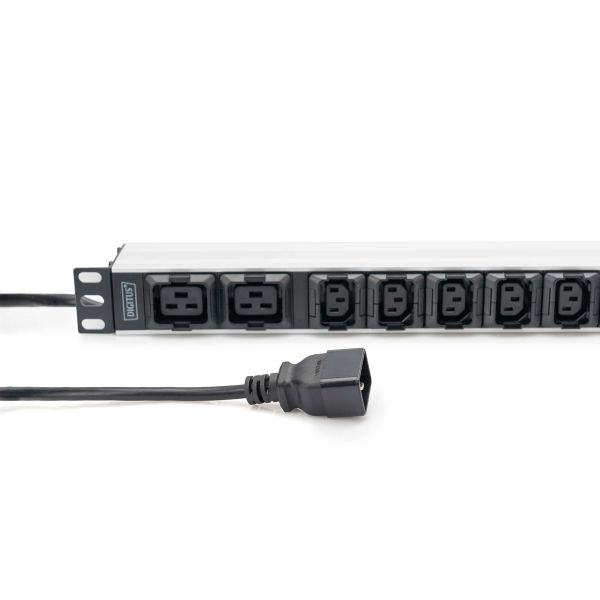

Digitus DN-95427 energiedistributie 10 AC-uitgang(en) 1U
Digitus DN-95427, 1U, Eenfasig, Aluminium, Kunststof, 10 AC-uitgang(en), C13 stekker, C19 stekker, C20 stekker
Nog slechts 4 beschikbaar
Fabrikant
Digitus
MPN
DN-95427
EAN
4016032483533
€ 41,00
excl. BTW
€ 41,00
excl. BTW
excl. BTW
Digitus DN-95427 energiedistributie 10 AC-uitgang(en) 1U
Safe and professional current supply in the 19" range
- Perfect current distribution for your network and IT rack
- Optimal current distribution for connection to a UPS (IEC-60320 C20 input connector)
- The jacks offer optimal space management and easy access
- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® socket strips are the perfect solution for your network or server cabinet. With regard to current distribution, the PDU fulfills the requirements of many applications in IT, network technology and laboratories. The PDU can be used ideally with your input connector IEC60320 C13 and C19 as additional 19" distribution for UPS. The individual C13 and C19 outputs are equipped with extraction protection.
- Perfect current distribution for your network and IT rack
- Optimal current distribution for connection to a UPS (IEC-60320 C20 input connector)
- The jacks offer optimal space management and easy access
- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® socket strips are the perfect solution for your network or server cabinet. With regard to current distribution, the PDU fulfills the requirements of many applications in IT, network technology and laboratories. The PDU can be used ideally with your input connector IEC60320 C13 and C19 as additional 19" distribution for UPS. The individual C13 and C19 outputs are equipped with extraction protection.
- Extraction protection at each output (for C13 and C19 standard cables)
- Horizontal 19" installation in the rack
- Housing: Aluminum profile
- Plastic components made of ABS UL-94V-0
- Input: Plug IEC60320 C20, 230 Vac / 16 A
- Output: Device sockets 8 x IEC60320 C13, 2 x IEC60320 C19, extraction protection integrated for every output
- Cable: Cable cross section: 1.5 mm², length: 2 m
- Dimensions: 482.6 (19") x 45 (1U) x 60 mm (HxWxD)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Soort
Eenfasig
Rackcapaciteit*
1U
Materiaal behuizing
Aluminium, Kunststof
Poorten & interfaces
Aantal AC uitgangen*
10 AC-uitgang(en)
Stekker
C20 stekker
Stopcontacttypes*
C13 stekker, C19 stekker
Aantal masterstopcontacten
8
Aantal slavestopcontacten
2
Kenmerken
Snoerlengte
2 m
Energie
Nominale input voltage*
230 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom (max.)*
16 A
Energie
Spanning
250 V
Laad-capaciteit
3600 VA
Aantal fases
1
Gewicht en omvang
Breedte
45 mm
Diepte
60 mm
Hoogte
482,6 mm
Gewicht
850 g
Maat
48,3 cm (19")
Inhoud van de verpakking
Gebruikershandleiding
Ja
Rekbevestigingspakket
Ja
Logistieke gegevens
Land van herkomst
China
