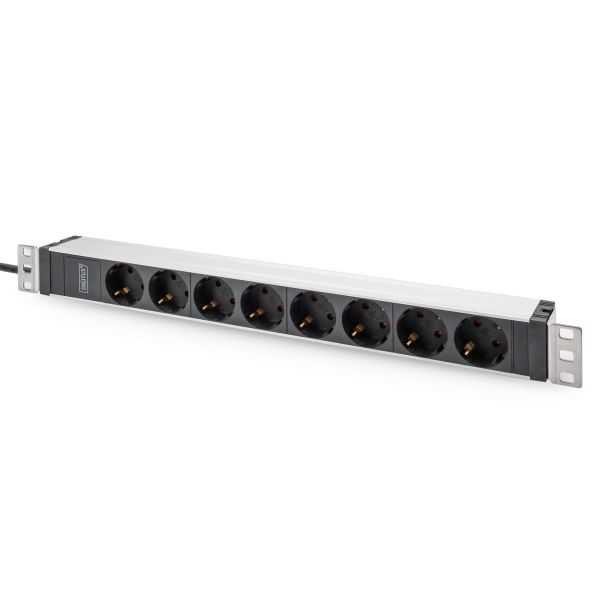

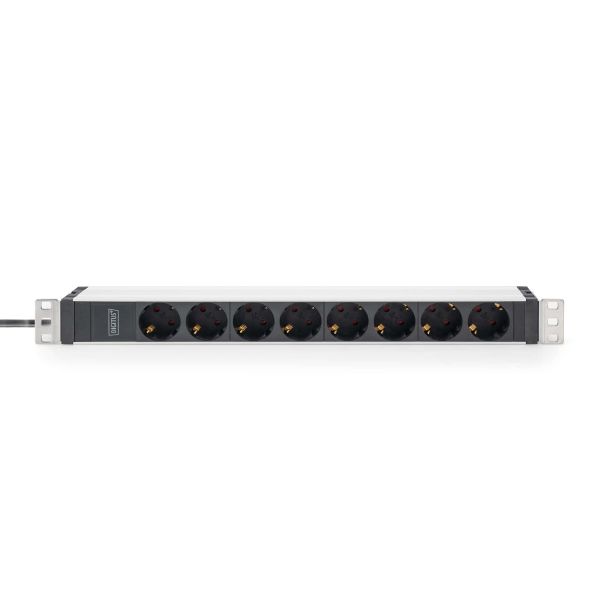

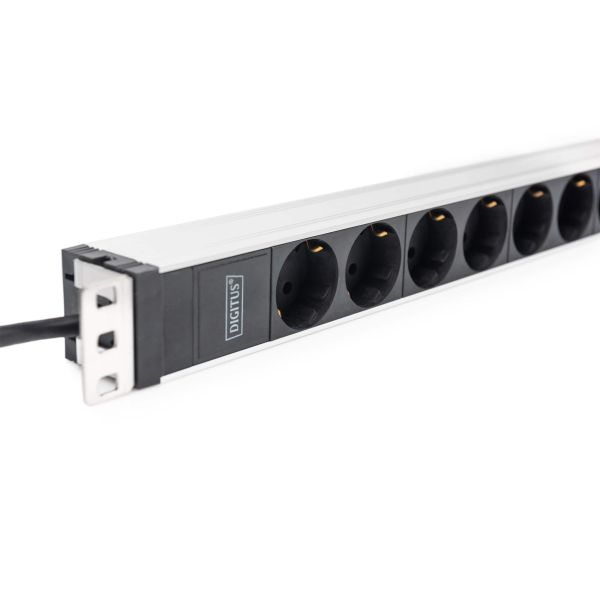

Digitus DN-95428 energiedistributie 8 AC-uitgang(en) 1U
Digitus DN-95428, 1U, Eenfasig, Horizontaal, Aluminium, Kunststof, 8 AC-uitgang(en), C20 stekker
Ruim op voorraad
Fabrikant
Digitus
MPN
DN-95428
EAN
4016032483540
€ 50,00
excl. BTW
€ 50,00
excl. BTW
excl. BTW
Digitus DN-95428 energiedistributie 8 AC-uitgang(en) 1U
Safe and professional current supply in the 19" range
- Perfect current distribution for your network and IT rack
- Compact construction, 19" 1U housing
- Optimal current distribution for connection to a UPS (IEC-60320 C20 input connector)
- Jacks are rotated by up to 35°, which offers optimal space management and easy access
The DIGITUS® socket strips are the perfect solution for your network or server cabinet. With regard to current distribution, the PDU fulfills the requirements of many applications in IT, network technology, laboratories and also home use. The socket strip can be compactly mounted in the cabinet in the 19" area of 1U.
- Perfect current distribution for your network and IT rack
- Compact construction, 19" 1U housing
- Optimal current distribution for connection to a UPS (IEC-60320 C20 input connector)
- Jacks are rotated by up to 35°, which offers optimal space management and easy access
The DIGITUS® socket strips are the perfect solution for your network or server cabinet. With regard to current distribution, the PDU fulfills the requirements of many applications in IT, network technology, laboratories and also home use. The socket strip can be compactly mounted in the cabinet in the 19" area of 1U.
- Horizontal 19" installation in the rack
- Socket rotation: 35°
- Housing: Aluminum profile
- Plastic components made of ABS UL-94V-0

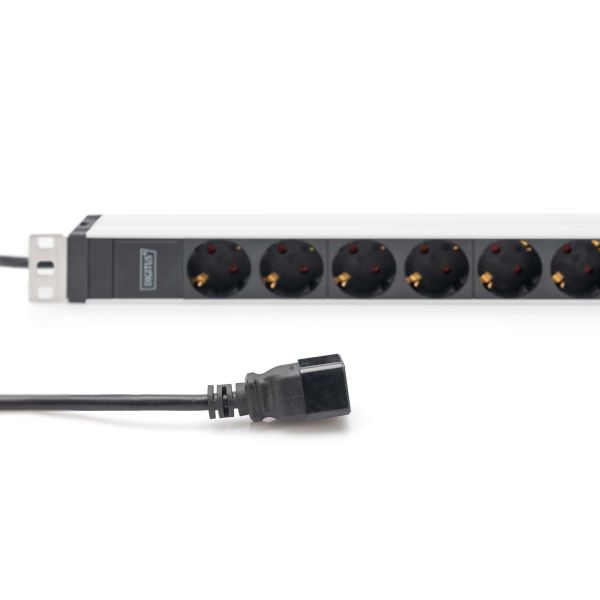

- Input: Plug IEC60320 C20, 230 Vac / 16 A
- Output: Device socket 8 x grounding contact DIN 49440, max. 16 A per output
- Cable: Cable cross section: 1.5 mm², length: 2 m
- Dimensions: 482.6 mm (19") x 45 (1U) x 45 mm (HxWxD)
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
Soort
Eenfasig
Rackcapaciteit*
1U
Montage
Horizontaal
Materiaal behuizing
Aluminium, Kunststof
Poorten & interfaces
Aantal AC uitgangen*
8 AC-uitgang(en)
Stekker
C20 stekker
Stopcontacttypes*
C20 stekker
Aantal masterstopcontacten
8
Kenmerken
Snoerlengte
2 m
Soort kabel
1.5 mm²
Energie
Nominale input voltage*
230 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom (max.)*
16 A
Energie
Spanning
230 V
Laad-capaciteit
3600 VA
Aantal fases
1
Gewicht en omvang
Breedte
45 mm
Diepte
45 mm
Hoogte
482,6 mm
Maat
48,3 cm (19")
Verpakking
Gewicht verpakking
1 kg
Inhoud van de verpakking
Gebruikershandleiding
Ja
Rekbevestigingspakket
Ja
Logistieke gegevens
Land van herkomst
China
