Digitus DN-95433 energiedistributie 5 AC-uitgang(en) 1U

Digitus DN-95433, Geschakeld, 1U, Aluminium, Kunststof, 5 AC-uitgang(en), Type F, Type F

Nog slechts 6 beschikbaar

Fabrikant Digitus
MPN DN-95433
EAN 4016032483595
€ 37,00 excl. BTW

Digitus DN-95433 energiedistributie 5 AC-uitgang(en) 1U

Safe and professional current supply in the 19" network / server cabinet range

- Perfect current distribution for your network and IT rack

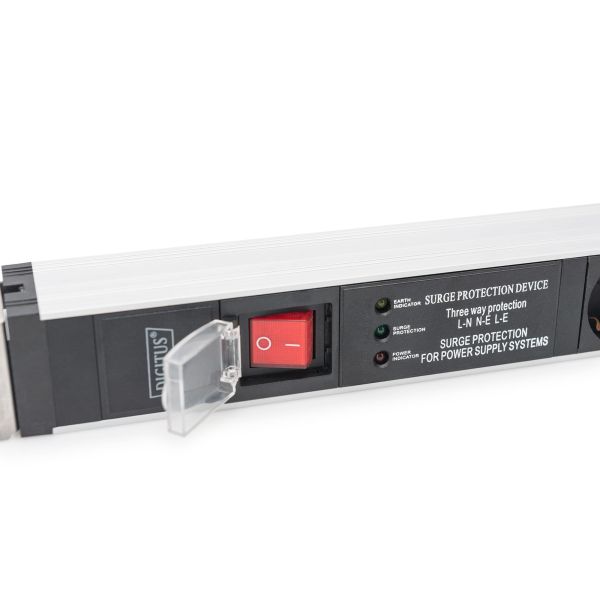

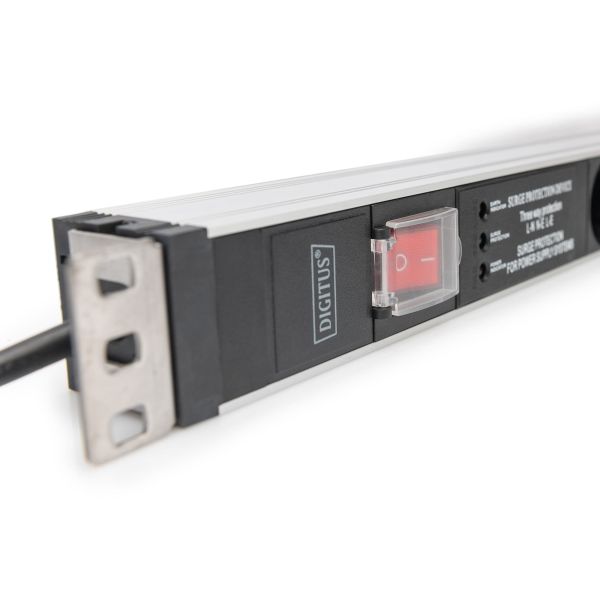

- The illuminated switch is protected against accidentally being switched off
- Integrated line filter and surge protection module protect the connected consumers against disruptions from the grid
- Jacks are rotated by up to 35°, which offers optimal space management and easy access

The DIGITUS® socket strips are the perfect solution for your network or server cabinet. With regard to current distribution, the PDU fulfills the requirements of many applications in IT, network technology, laboratories and also home use. The socket strip can be compactly mounted in the cabinet in the 19" area of 1U. An integrated line filter and surge protection protect the connected consumers against disruptions from the grid. It is possible, depending on the type of cabinet, to mount the power strip with the taps facing right or left.
  • Illuminated switch - protected against accidentally being switched off
  • Integrated line filter
  • Integrated surge protection: Nominal
  • discharge current (In) - 10 kA
  • Socket rotation: 35°
  • Housing: Aluminum
  • Plastic components made of ABS UL-94V-0
  • Input: Plug grounding contact CEE 7/7, 230 Vac / 16 A
  • Output: Device socket 5 x grounding contact DIN 49440, max. 16 A per output
  • Cable: H05VV-F 3G 1.5 mm², length: 2 m
  • Dimensions: 482.6 (19") x 45 (1U) x 45 mm (HxWxD)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Design

PDU types*
Geschakeld
Rackcapaciteit*
1U
Materiaal behuizing
Aluminium, Kunststof
Aan/uitschakelaar
Ja

Poorten & interfaces

Aantal AC uitgangen*
5 AC-uitgang(en)
Stekker
Type F
Stopcontacttypes*
Type F
Aantal masterstopcontacten
5

Kenmerken

Spanningsbeveiliging
Ja
Snoerlengte
2 m

Energie

Nominale input voltage*
230 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom (max.)*
16 A
Spanning
230 V

Gewicht en omvang

Breedte
45 mm
Diepte
45 mm
Hoogte
482,6 mm
Gewicht
850 g
Maat
48,3 cm (19")

Verpakking

Gewicht verpakking
1,18 kg
Breedte verpakking
510 mm
Diepte verpakking
97 mm
Hoogte verpakking
58 mm

Inhoud van de verpakking

Gebruikershandleiding
Ja
Rekbevestigingspakket
Ja

Logistieke gegevens

Land van herkomst
China
