Digitus DN-95450 energiedistributie 27 AC-uitgang(en) 0U Zwart
Digitus DN-95450, Basis, 0U, Eenfasig, Verticaal, ABS kunststof, Aluminium, Zwart
Nog 20 beschikbaar
Fabrikant
Digitus
MPN
DN-95450
EAN
4016032485957
€ 111,00
excl. BTW
€ 111,00
excl. BTW
excl. BTW
Digitus DN-95450 energiedistributie 27 AC-uitgang(en) 0U Zwart
Safe and professional power distribution solution for highly demanding IT requirements in network and server racks
- Optimal design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets
- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® PDU are the perfect solution for your network or server cabinet. With regard to power distribution, it fulfills the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with extract protection. It is optimally designed for vertical installation providing the advantage of saving rack spaces for more equipments. The 27 outlet PDU has excellent physical characteristics and is engineered for an output of up to 4,000 W (250 V AC / 16 A) which helps in achieving best performances with the appropriate load.
- Optimal design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets
- Integrated extraction protection at each output, protects C13 and C19 standard cables against unintentional unplugging
The DIGITUS® PDU are the perfect solution for your network or server cabinet. With regard to power distribution, it fulfills the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with extract protection. It is optimally designed for vertical installation providing the advantage of saving rack spaces for more equipments. The 27 outlet PDU has excellent physical characteristics and is engineered for an output of up to 4,000 W (250 V AC / 16 A) which helps in achieving best performances with the appropriate load.

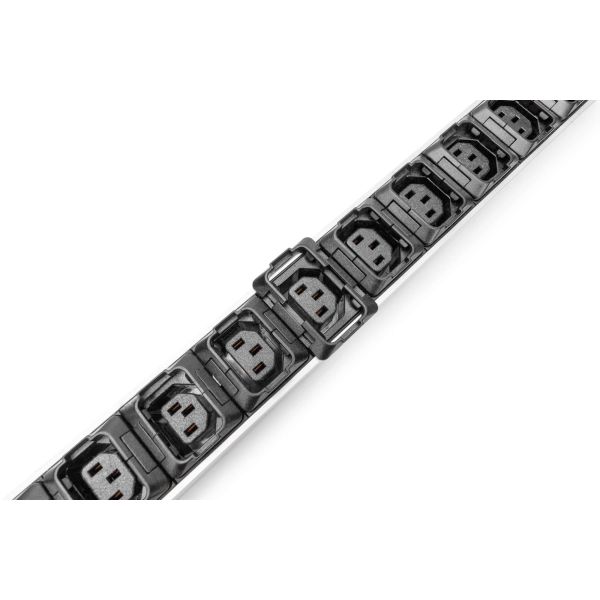

- Extraction protection at each output (for C13 and C19 standard cables)
- Vertical installation
- Housing: Aluminum
- Plastic components made of ABS UL-94V-0

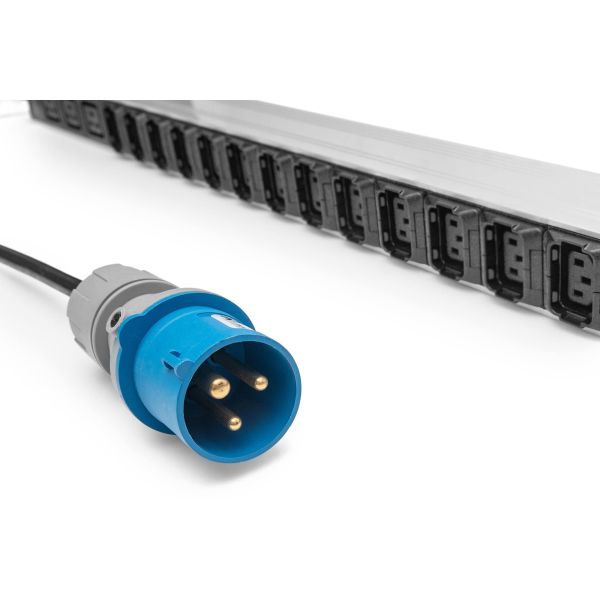

- Mains plug: 2.5 mm², IEC60309 16 A plug
- Cable: 3 m
- Max. Load: 4000 W / 250 V AC / 16 A (50/60Hz)

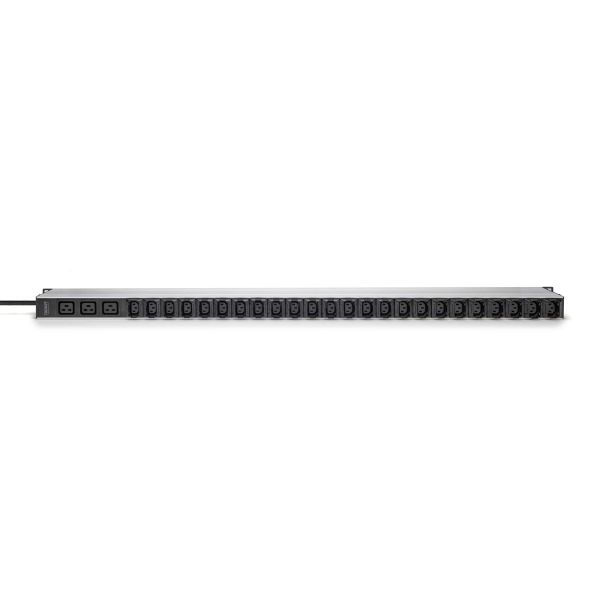

- Outlets: 24 x IEC60320 C13, 3 x IEC60320 C19
- Output power: C13 (10A), C19 (16A)
- Dimensions (L × W × D): 1140,5 x 45 x 60 mm
- Colour: Black
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Design
PDU types*
Basis
Soort
Eenfasig
Rackcapaciteit*
0U
Montage
Verticaal
Materiaal behuizing
ABS kunststof, Aluminium
Kleur van het product
Zwart
Poorten & interfaces
Aantal AC uitgangen*
27 AC-uitgang(en)
Stekker
IEC 60309
Stopcontacttypes*
C13 stekker, C19 stekker
Aantal masterstopcontacten
24
Aantal slavestopcontacten
3
Kenmerken
Snoerlengte
3 m
Energie
Nominale input voltage*
250 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom (max.)*
16 A
Poort 1 uitgangsstroom
10 A
Poort 2 uitgangsstroom
16 A
Energie
Netspanning, in bedrijf
230 V
Spanning
230 V
Laad-capaciteit
3600 VA
Aantal fases
1
Maximaal vermogen
4000 W
Gewicht en omvang
Breedte
45 mm
Diepte
1140,5 mm
Hoogte
60 mm
Verpakking
Gewicht verpakking
3,05 kg
Breedte verpakking
145 mm
Diepte verpakking
1400 mm
Verpakkingsvolume
14210 cm³
Inhoud van de verpakking
Gebruikershandleiding
Ja
Logistieke gegevens
Code UK-handelstarief
85444290
Land van herkomst
China
