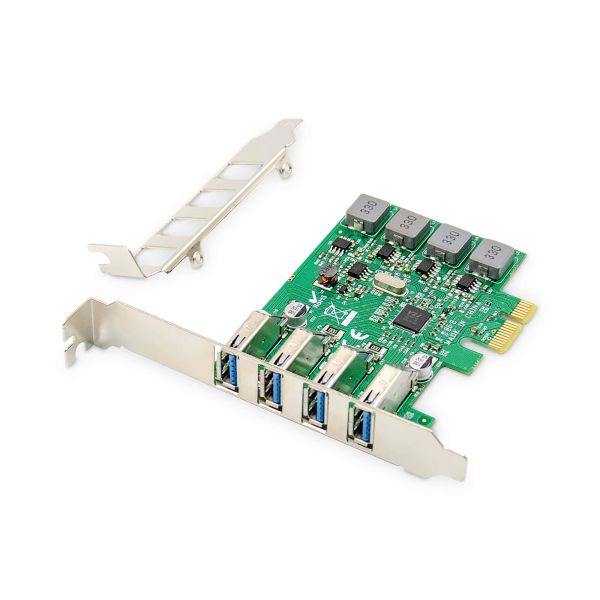

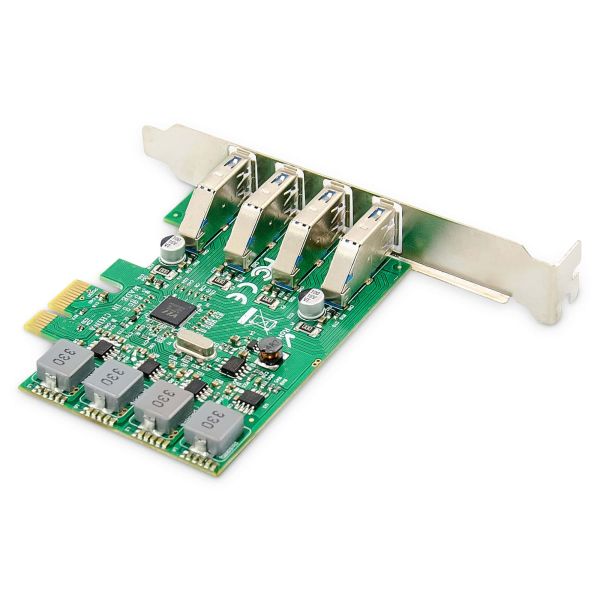

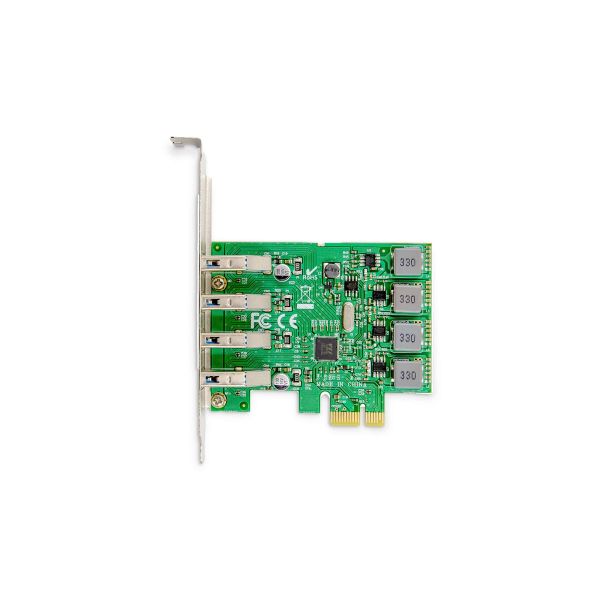

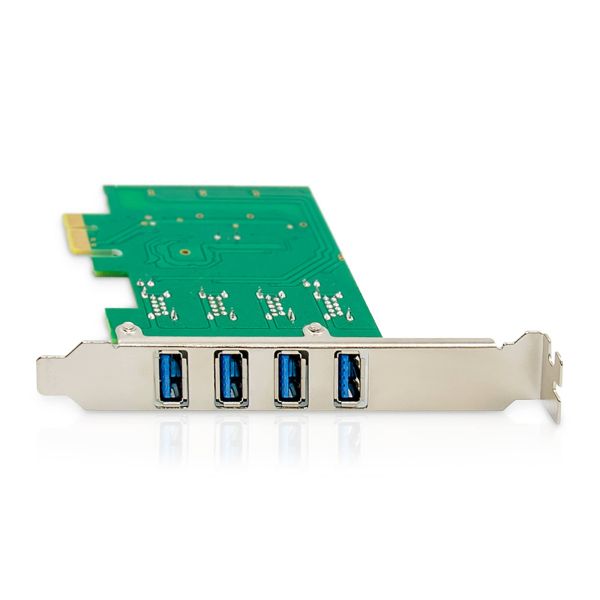

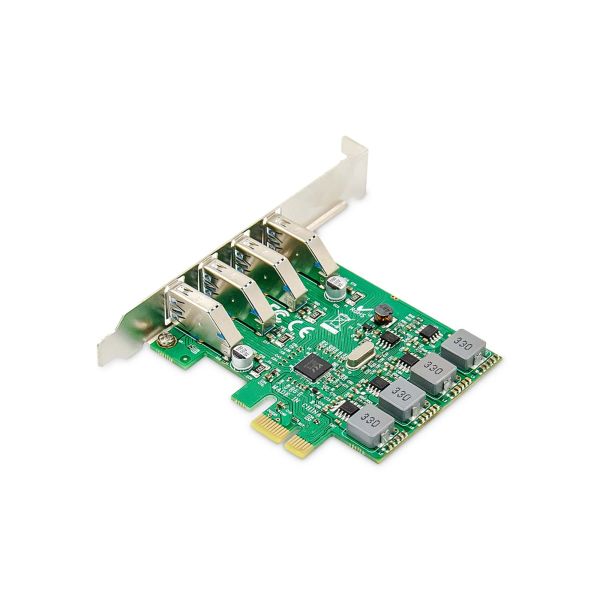

Digitus DS-30226 interfacekaart/-adapter Intern USB 3.2 Gen 1 (3.1 Gen 1)

Digitus DS-30226, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Volledige hoogte / Laag profiel, PCIe 2.0, Groen, China

Ruim op voorraad

Fabrikant Digitus
MPN DS-30226
EAN 4016032464396
€ 51,00 excl. BTW

Digitus DS-30226 interfacekaart/-adapter Intern USB 3.2 Gen 1 (3.1 Gen 1)

Extend your PC with PCIe slots by 4 full USB 3.0 ports (USB A) with up to 3000 mA

- Data transfer in SuperSpeed with up to 5 Gbps, backwards compatible
- Power supply: 5 V / 3000 mA per port max.
- Chipset: VIA / VL805
- Supports USB legacy function
- USB Attached SCSI Protocol (USAP) Mode
- Plug and Play - no driver installation required
- No external power adapter required
- Supports hot plugging
- Low-profile slot bracket

This full USB 3.0 host controller extends your PC with PCI slots by four USB 3.0 connections. Power supply is provided via the PCI express slot and supplies a maximum power output of 3,000 mA for each USB port. Use bus speeds of up to 5 Gbps with USB SuperSpeed, backwards compatible for older USB devices with Hi-Speed, Full Speed & Low Speed. Connect USB devices such as printers, scanners, cameras or an external hard drive. Supports hot plugging & Plug and Play - no driver installation required. Enjoy the fastest SuperSpeed data transfers with the DIGITUS® USB 3.0 PCIe card and copy large quantities of data in a very short time.
  • Connections: 4 x USB A (USB 3.0)
  • USB data transfer rates: SuperSpeed (5 Gbps), Hi-Speed (480 Mbps), Full Speed (12 Mbps) & Low Speed (1.5 Mbps)
  • Power supply: 5 V / 3000 mA per port max.
  • Chipset: VIA / VL805
  • For PCIe slots: x1/x4/x8/x16
  • No external power adapter required, power supply via PCIe slot
  • Complies with Universal Serial Bus 3.0 specification (Rev. 1), backwards compatible with 2.0
  • Complies with Extensible Host Controller Interface Specification Rev. 1.0
  • Complies with PCI Express Specification 2.0, backwards compatible with 1.0
  • Supports USB legacy function
  • USB Attached SCSI Protocol (USAP) Mode
  • Plug and Play - no driver installation required
  • Supported operating systems: Windows 10/8.1/8/7, Linux (32/64Bit)
  • Dimensions: 10 x 12.1 x 2 cm (W x D x H)
  • Weight: 60 g

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
USB 3.2 Gen 1 (3.1 Gen 1)
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
Uitbreidingskaartstandaard
PCIe 2.0
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
4

Design

Intern*
Ja
Kleur van het product
Groen
Hot-plug ondersteuning
Ja
Land van herkomst
China

Kenmerken

Type processor
Ja
Processorfabrikant
VIA Technologies
Processormodel
VL805
Data transfer snelheid (max)
5 Gbit/s
Plug and play
Ja

Energie

Spanning
5 V
Output current
3 A

Minimale systeemeisen

Ondersteunt Windows
Windows 10, Windows 7, Windows 8, Windows 8.1
Ondersteunt Linux
Ja

Gewicht en omvang

Breedte
140 mm
Diepte
130 mm
Hoogte
30 mm
Gewicht
110 g

Verpakking

Aantal
1

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
