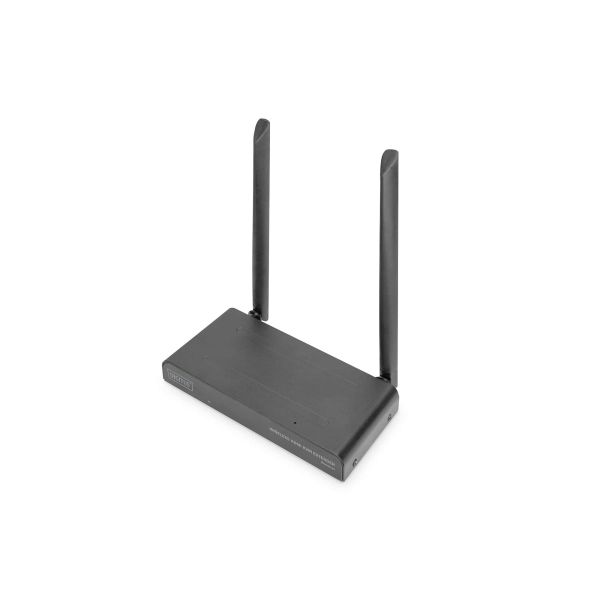

Digitus DS-55321 KVM-extender Zender en ontvanger

Digitus DS-55321, Zender en ontvanger, Draadloos, 200 m, Wi-Fi 5 (802.11ac), 1920 x 1080 Pixels, Zwart

Nog slechts 5 beschikbaar

Fabrikant Digitus
MPN DS-55321
EAN 4016032478812
€ 198,00 excl. BTW

Digitus DS-55321 KVM-extender Zender en ontvanger

Wirelessly transmits HDMI video and audio signals in Full HD over a distance of up to 200 m with an unobstructed view and offers KVM functionality

- Wireless HDMI signal transmission up to 200 m (with unobstructed view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports transmissions resolutions up to Full HD (1080p / 60 Hz)
- KVM functionality for connection to mouse and keyboard
- Touch Screen Back Control - Supports touch screen panels (via USB connection on the receiver)
- Supports input signals with up to 4K/60Hz
- HDMI loop-out for connection of a local monitor to the transmitter unit
- Auto-pairing function - No configuration required
- AES 128 bit encryption
- WPA2 protocol

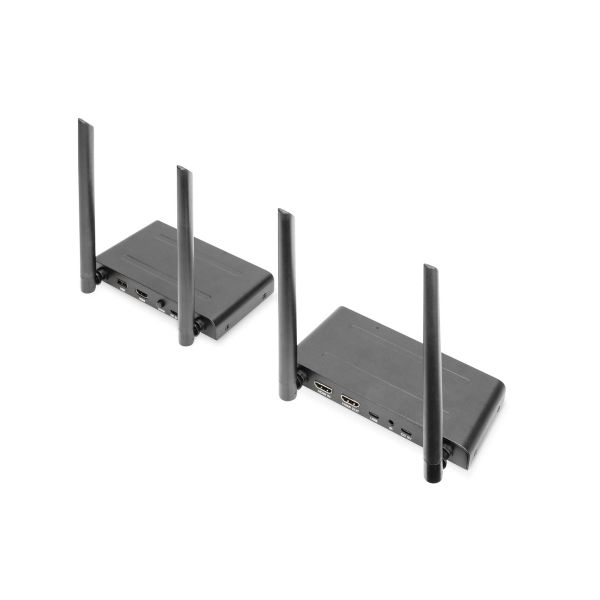

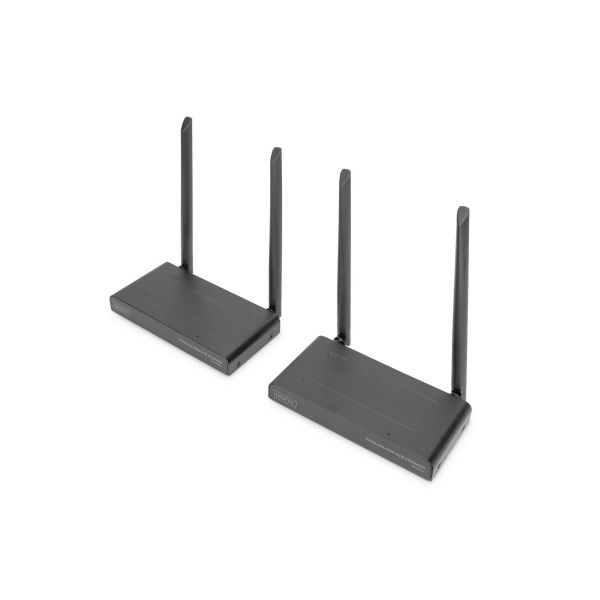

The Wireless HDMI® KVM Extender Set transfers your HDMI® video and audio signals in Full HD without a cable over a distance of up to 200 m (unobstructed view). Thanks to KVM functionality, the mouse/keyboard can be connected to the receiver unit, which makes it possible to control the signal source directly on the output device. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to control the output to the receiver. The auto-pairing function ensures straightforward installation.
  • Wireless HDMI signal transmission up to 200 m (unobstructed view)
  • Supports transmission resolutions up to 1920x1080p
  • Wireless channel: IEEE 802.11ac, 5 GHz, 2T2R
  • Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)

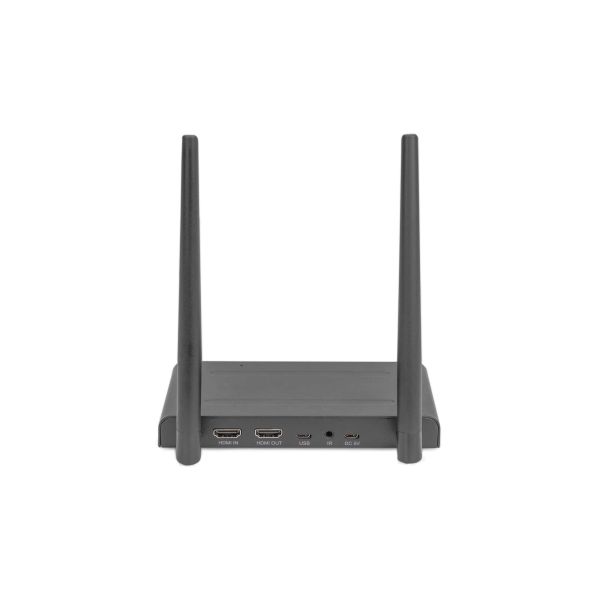

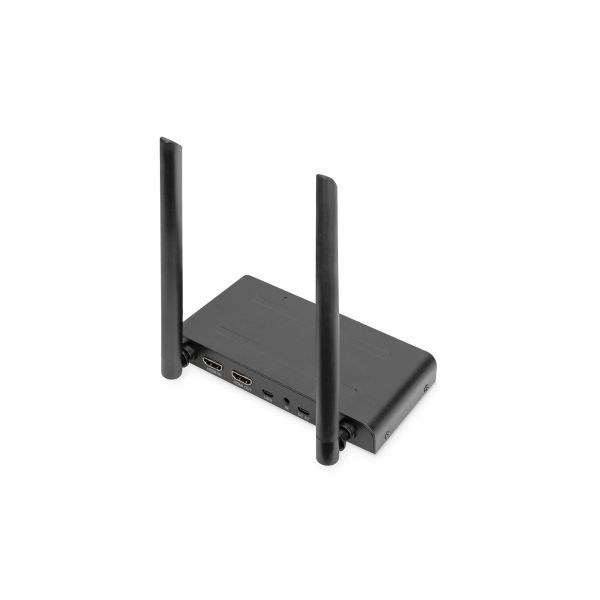

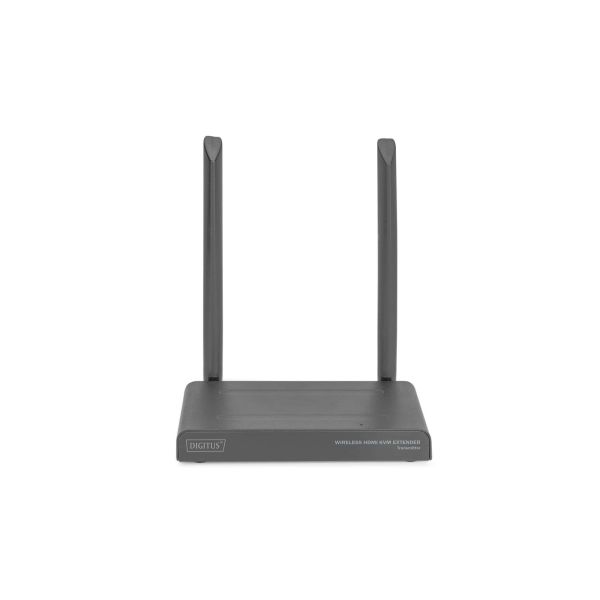

  • Transmitter unit connections:
  • 1x HDMI input (signal source, 4K/60Hz)
  • 1x HDMI loop-out / output
  • 1x Micro USB input (power supply, DC 5V/1A)
  • 1 x IR input - Connection of IR transmitter for control of output monitor
  • 1x Micro USB input - Data connection of source for use of KVM function

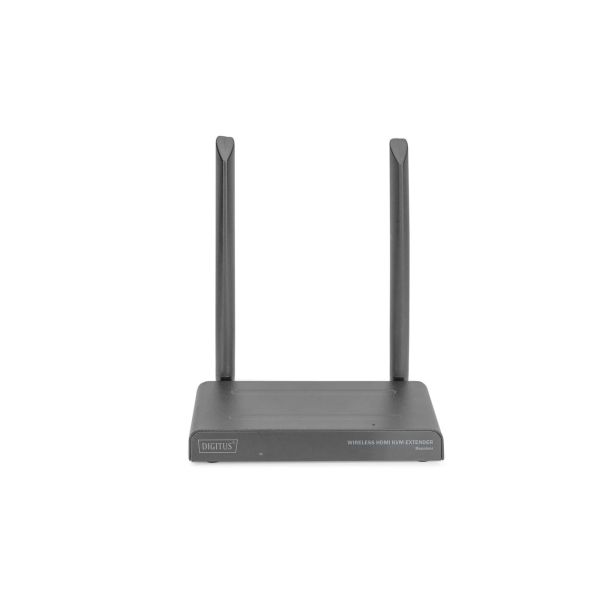

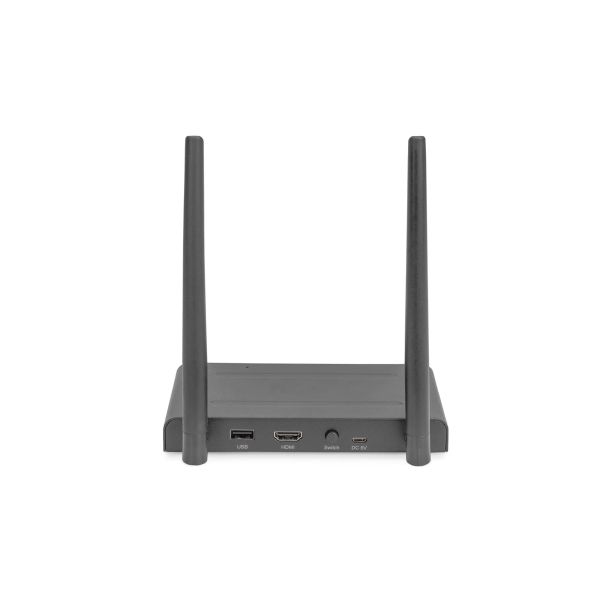

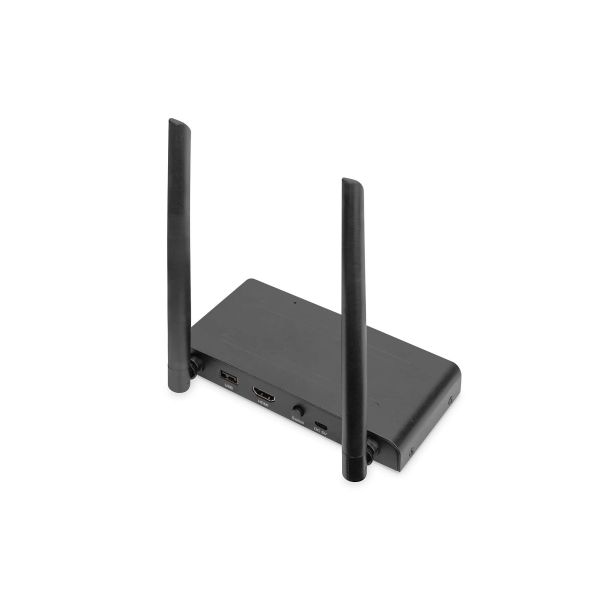

  • Receiver unit connections:
  • 1x HDMI output (output device, 1080p/60Hz)
  • 1x USB-A input (connection of mouse/keyboard)
  • 1x Reset button
  • Power consumption: 2.5W
  • Operating temperature: 0-40 °C
  • Dimensions (1 unit): L 7.9 x W 15.5 x H 2.2 cm
  • Weight (1 unit): 326 g
  • Color: Black
  • The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed.
  • Walls, glass etc. shorten the signal range or cause signal losses.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Soort*
Zender en ontvanger
Connectiviteitstechnologie*
Draadloos
Maximaal bereik
200 m
Wi-Fi-standaarden
Wi-Fi 5 (802.11ac)
Resolutie (maximum digitaal)
1920 x 1080 Pixels
Kleur van het product
Zwart
Land van herkomst
Taiwan
Gemakkelijk te installeren
Ja
Plug and play
Ja

Zender

Poorttype zender video
HDMI
Poorttype zender lokale video
HDMI
Poorttype zender lokaal toetsenbord/muis
USB

Ontvanger

Poorttype ontvanger lokale video
HDMI
Poorttype ontvanger lokaal toetsenbord/muis
USB

Energie

Stroomverbruik (zender) (max)
2,5 W
Stroomverbruik (ontvanger) (max)
2,5 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Gewicht en omvang

Zender breedte
15,5 cm
Zender diepte
7,9 cm

Gewicht en omvang

Zender hoogte
2,2 cm
Transmitter gewicht
326 g
Receiver breedte
15,5 cm
Diepte van de receiver
7,9 cm
Receiver hoogte
2,2 cm
Receiver gewicht
326 g

Verpakking

Breedte verpakking
230 mm
Diepte verpakking
250 mm
Hoogte verpakking
66 mm
Gewicht verpakking
1,16 kg

Technische details

Verpakkingsvolume
3795 cm³

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Meegeleverde kabels
USB Type-A naar Micro-USB Type-B
Gebruikershandleiding
Ja

Poorten & interfaces

USB-poorttype
USB Type A/USB Type-C

Logistieke gegevens

Code UK-handelstarief
85176200
Code geharmoniseerd systeem (HS)
84733080
