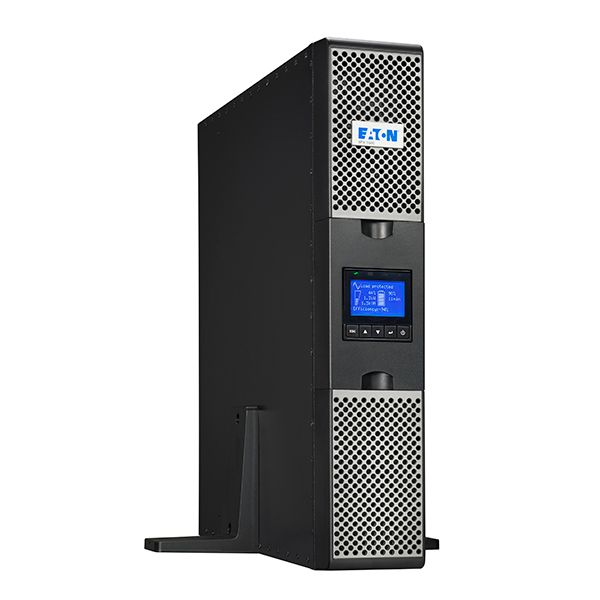

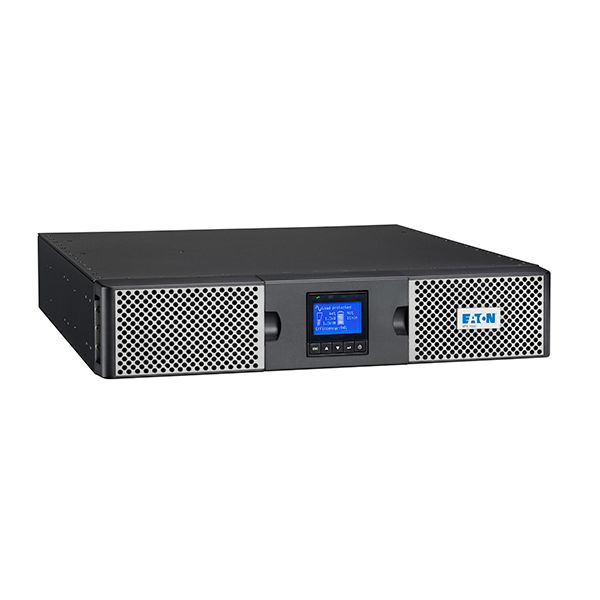

Eaton 9PX1500IRTM UPS Dubbele conversie (online) 1,5 kVA 1500 W 8 AC-uitgang(en)

Eaton 9PX1500IRTM, Dubbele conversie (online), 1,5 kVA, 1500 W, Zuivere sinus, 176 V, 276 V

Nog 3 beschikbaar (bel voor reservering)

Fabrikant Eaton
MPN 9PX1500IRTM
EAN 0743172081230
€ 2.369,00
€ 1.936,00 excl. BTW

Eaton 9PX1500IRTM UPS Dubbele conversie (online) 1,5 kVA 1500 W 8 AC-uitgang(en)

The Eaton 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS. Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
1,5 kVA
Uitgangsvermogen*
1500 W
Golfvorm*
Zuivere sinus
Ingang operation voltage (min)*
176 V
Ingang operation voltage (max)*
276 V
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
200 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Aantal input fases
1
Efficientie
92,5 procent
Power factor
1
Geluidsniveau
35 dB

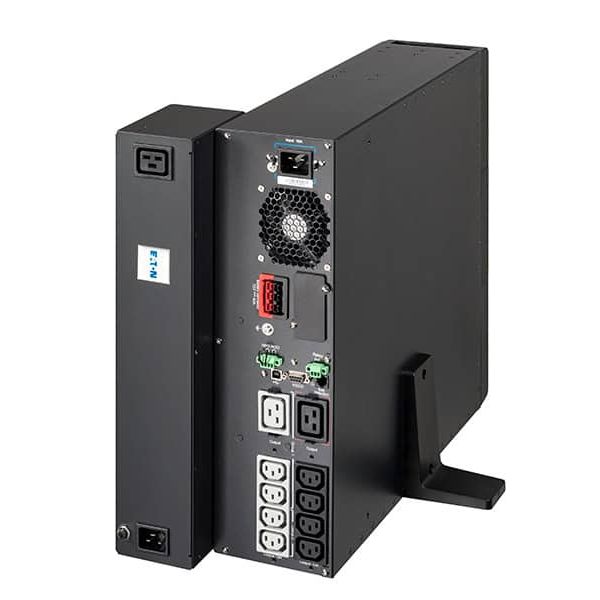

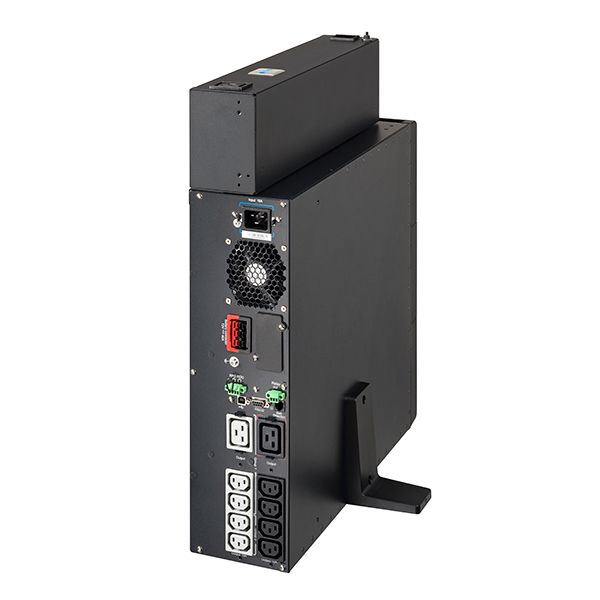

Poorten & interfaces

Stopcontacttypes
C13 stekker
Stekker
C14 stekker
Aantal AC uitgangen
8 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
Seriële interface
Ja
Soort serieële aansluiting
RS-232
RS-232 port
1

Accu/Batterij

Batterijtechnologie
Sealed Lead Acid (VRLA)
Typische backup tijd op halve lading
14 min
Hot-swap batterij
Ja
Automatische batterij test
Ja

Design

Vormfactor*
Rackmontage/toren
Rackcapaciteit
2U
Kleur van het product*
Zwart
Type beeldscherm
LCD
LED-indicatoren
Ja
Veiligheid
IEC/EN 62040-1, UL 1778, CSA 22.2
Certificering
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C

Technische details

Duurzaamheidscertificaten
ENERGY STAR

Gewicht en omvang

Breedte
440 mm
Diepte
450 mm
Hoogte
86,5 mm
Gewicht
18,9 kg

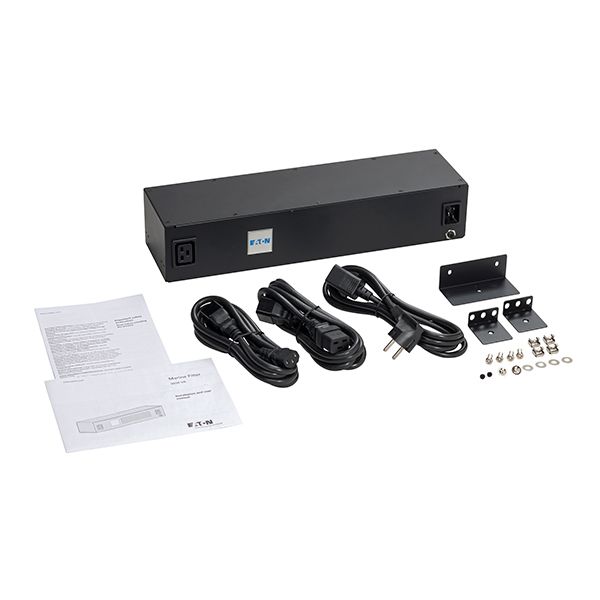

Verpakking

Rekbevestigingspakket
Ja
Beheerskaart inbegrepen
Nee
Meegeleverde software
Intelligent Power Software suite

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000

Overige specificaties

Netspanning, in bedrijf
230 V
Nominale input voltage
230 V
