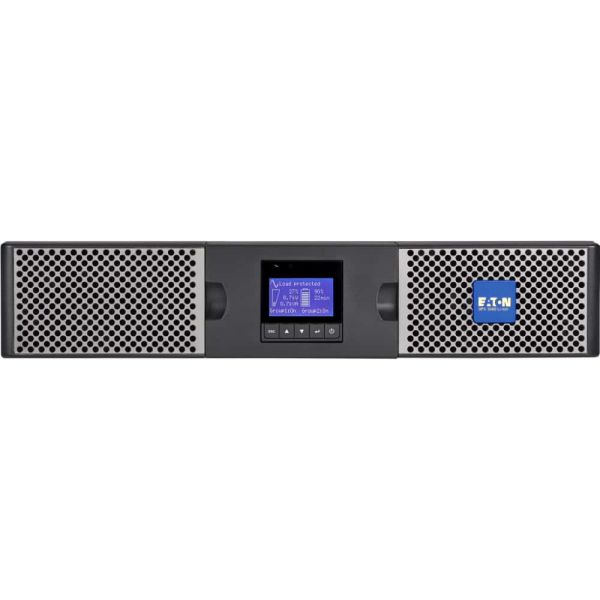

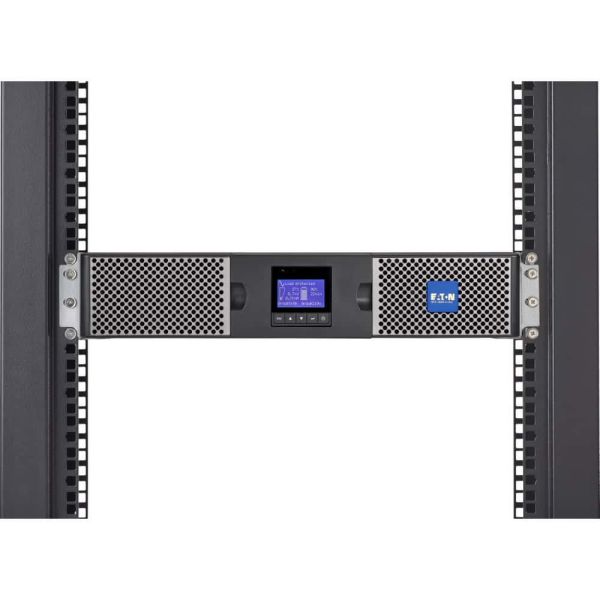

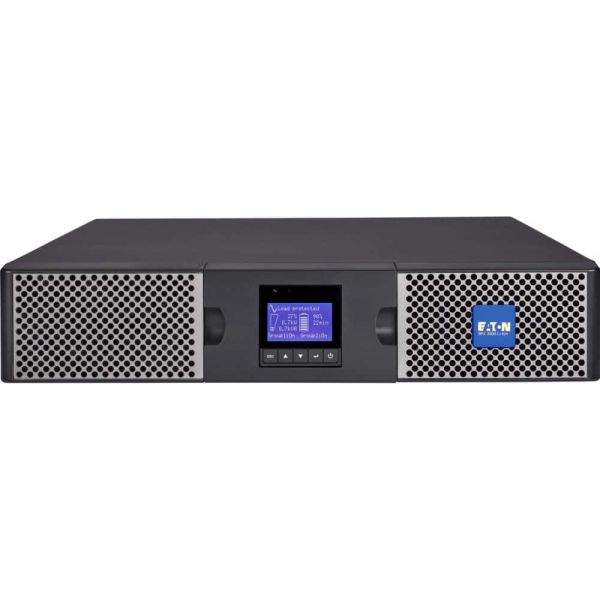

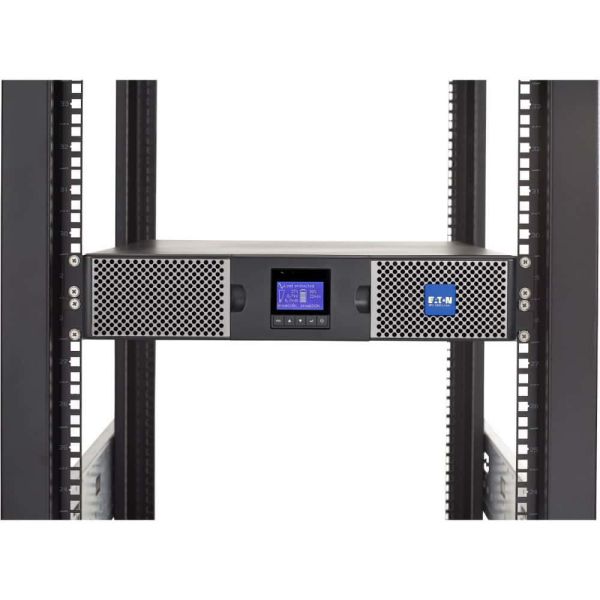

Eaton 9PX 3000i RT2U Li-Ion Dubbele conversie (online) 3 kVA 2400 W 10 AC-uitgang(en)

Eaton 9PX 3000i RT2U Li-Ion, Dubbele conversie (online), 3 kVA, 2400 W, Sinus, 176 V, 276 V

Niet op voorraad

Fabrikant Eaton
MPN 9PX3000IRT2U-L
EAN 0743172105325
€ 5.225,00 excl. BTW

Eaton 9PX 3000i RT2U Li-Ion Dubbele conversie (online) 3 kVA 2400 W 10 AC-uitgang(en)

Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

UPS-topologie*
Dubbele conversie (online)
Output power capacity*
3 kVA
Uitgangsvermogen*
2400 W
Golfvorm*
Sinus
Ingang operation voltage (min)*
176 V
Ingang operation voltage (max)*
276 V
Frequentie*
40/70 Hz
Uitgang operation voltage (min)
200 V
Uitgang operation voltage (max)
240 V
Output frequentie
50/60 Hz
Aantal input fases
1
Aantal output fases
1
Efficientie
94 procent
Input vermogensfactor
0,99
Output vermogensfactor
1
Geluidsniveau
40 dB
Stroomspanning bescherming
Batterij-ontlading

Poorten & interfaces

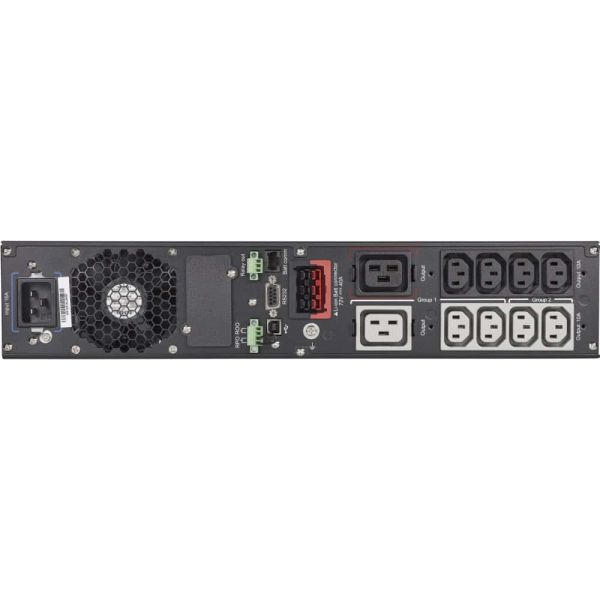

Stopcontacttypes
C13 stekker, C19 stekker
Stekker
C20 stekker
Aantal AC uitgangen
10 AC-uitgang(en)
USB-poort
Ja
Aantal USB 2.0-poorten
1
USB-poorttype
USB Type-B
Seriële interface
Ja
Soort serieële aansluiting
RS-232
RS-232 port
1

Accu/Batterij

Batterijtechnologie
Lithium-Ion (Li-Ion)
Typische backup tijd op volledige lading
10 min
Hot-swap batterij
Ja
Automatische batterij test
Ja

Design

Vormfactor*
Rackmontage/toren
Rackcapaciteit
2U
Kleur van het product*
Zwart, Zilver
Type beeldscherm
LCD
LED-indicatoren
Ja
Veiligheid
IEC/EN 62040-1, UL 1778, CSA 22.2
Certificering
IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 96 procent
Hoogte, in bedrijf
0 - 3000 m

Technische details

Duurzaamheidscertificaten
CE, ENERGY STAR

Gewicht en omvang

Breedte
440 mm
Hoogte
86,5 mm

Verpakking

Rekbevestigingspakket
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85078000
