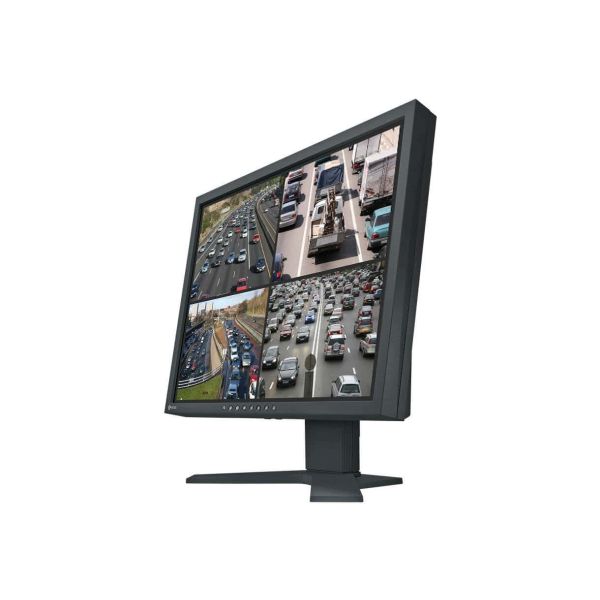

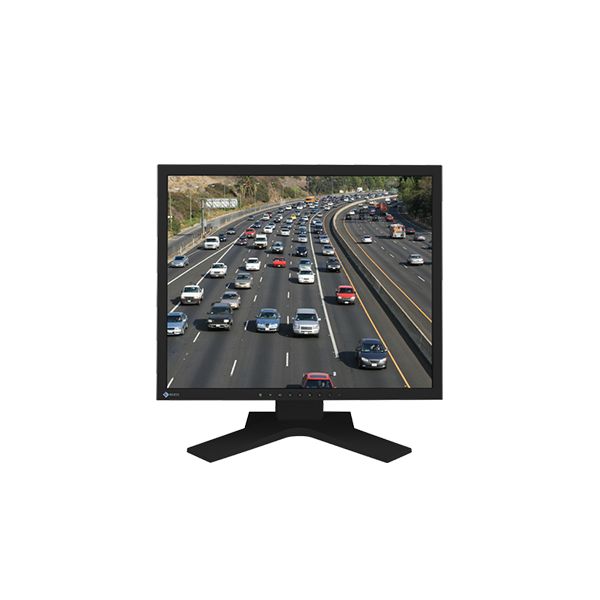

EIZO DuraVision FDS1903-ABK computer monitor 48,3 cm (19") 1280 x 1024 Pixels SXGA LED Zwart

EIZO DuraVision FDS1903-ABK, 48,3 cm (19"), 1280 x 1024 Pixels, SXGA, LED, 10 ms, Zwart

Niet op voorraad

Fabrikant Eizo
MPN FDS1903-A-BK
EAN 4995047053965
€ 717,00 excl. BTW

EIZO DuraVision FDS1903-ABK computer monitor 48,3 cm (19") 1280 x 1024 Pixels SXGA LED Zwart

The DuraVision FDS1903-A is equipped with an HDMI connector for receiving signals from a digital source, such as an HDD recorder. It also has a composite (BNC) input for connection to video surveillance equipment, such as closed-circuit televisions (CCTV) and security cameras. The monitor supports NTSC, PAL, and SECAM signals for connecting to a variety of other surveillance equipment.

Flexible Screen Display
The monitor can accept a full HD (1920 x 1080) signal via HDMI and display at its native resolution of 1280 x 1024. Multiple screen setting options are available for analog or digital signals that allow operators to display images to fit to the screen, stretch to fill, or enlarge while maintaining aspect ratio.

Included Remote Control
A remote control is included for operating the monitor from a distance.

Underscan and Overscan Display Functions
Underscan is a function that shows 100% of an image and is ideal for video signals while overscan displays approximately 95% of an image, eliminating extraneous TV broadcasting data that sometimes appears at the edges of the screen.

Clear View from Below
When viewing an LCD screen from below, colors typically appear washed out. The DuraVision FDS1903-A includes an Up View function which minimizes color wash-out for maintaining a clear view. This is ideal for environments where the monitor is installed above eye level.

Reduced Noise and Flicker
A 3D Y/C separation circuit is built in and separates the brightness signal from the color information. This effectively reduces color flickering and noise that is typically characteristic of analog signals.

Built-In Stereo Speakers
The DuraVision FDS1903-A comes equipped with built-in 0.5 W + 0.5 W stereo speakers for environments that require sound output from the monitor.

24-Hour Use, 2-Year Warranty
The monitor is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
48,3 cm (19")
Resolutie*
1280 x 1024 Pixels
HD type*
SXGA
Oorspronkelijke beeldverhouding*
5:4
Display technologie*
LED
Soort paneel*
TN
Backlight type
LED
Touchscreen*
Nee
Helderheid (typisch)
350 cd/m²
Responstijd
10 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
1280 x 1024 (SXGA)
Typische contrastverhouding*
1000:1
Kijkhoek, horizontaal
170°
Kijkhoek, verticaal
160°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Pixel pitch
0,294 x 0,294 mm
Frequentiebereik horizontaal
15 - 68 kHz
Frequentiebereik verticaal
50 - 61 Hz
Grootte beeld (horizontaal)
37,6 cm
Grootte beeld (verticaal)
30,1 cm
3D
Nee

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde luidsprekers*
Ja
Ingebouwde camera*
Nee
Aantal luidsprekers
2
Gemiddeld vermogen
1 W

Design

Markt positionering*
Bedrijf
Kleur van het product*
Zwart
Certificering
CE, CB, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE

Poorten & interfaces

Ingebouwde USB-hub*
Nee
DVI-poort
Nee
Aantal HDMI-poorten
1

Poorten & interfaces

Audio-ingangen
Nee
Hoofdtelefoon uit*
Ja
Hoofdtelefoonuitgangen
1
Type aansluitplug
3,5 mm
HDCP
Ja
Composiet video-ingang
1

Ergonomie

VESA-montage*
Ja
In hoogte verstelbaar*
Ja
In hoogte verstelbaar
10 cm
Scharnier
Ja
Pivot hoek
0 - 90°
Draaibaar
Ja
Horizontaal draaibaar
-35 - 35°
Bereik kantelhoek
0 - 30°
On Screen Display (OSD)
Ja
Aantal On Screen Display-talen
9
kantel aanpassingen
Ja

Energie

Stroomverbruik (in standby)*
0,4 W
Vermogensverbruik (max)
23 W
Stroomverbruik (PowerSave)
2,5 W
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent

Inhoud van de verpakking

Gebruikershandleiding
Ja

Gewicht en omvang

Breedte apparaat (met standaard)
405 mm
Diepte apparaat (met standaard)
205 mm
Hoogte apparaat (met standaard)
506,5 mm
Breedte ( zonder voet )
40,5 cm
Gewicht (zonder voet)
5,9 kg

Overige specificaties

Formaat analoog signaal
NTSC, PAL, SECAM
