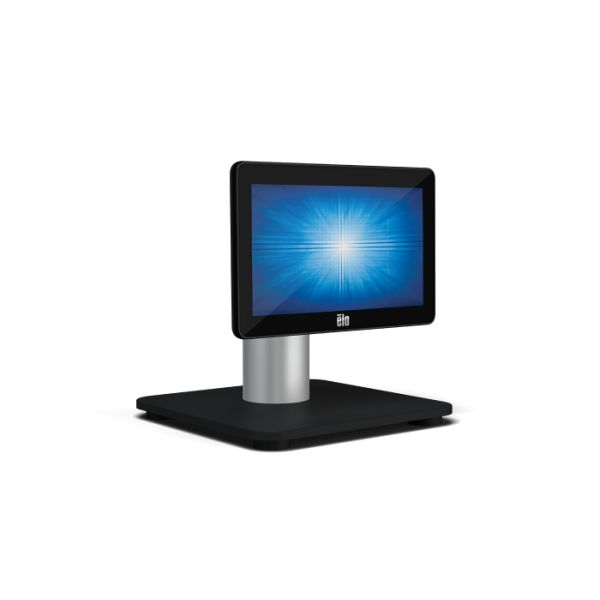

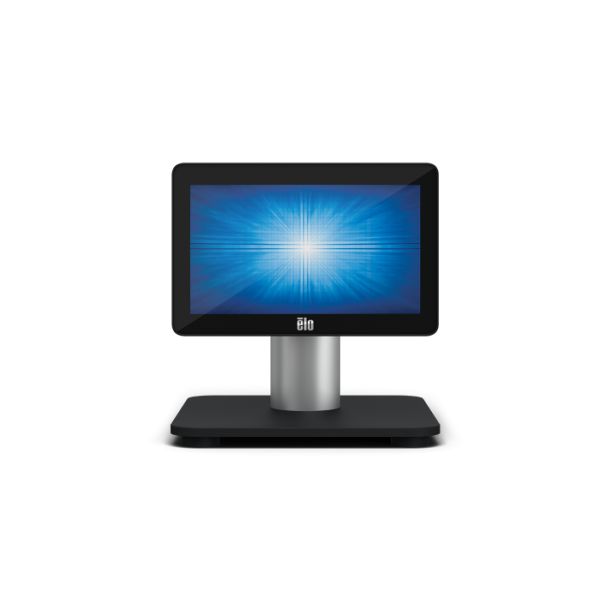

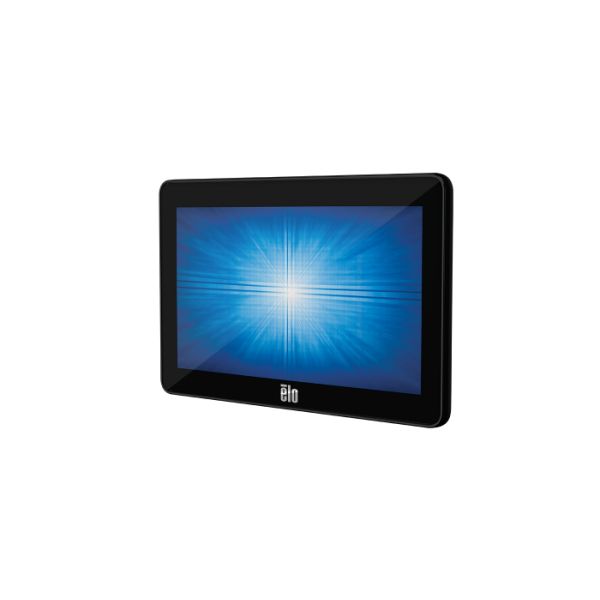

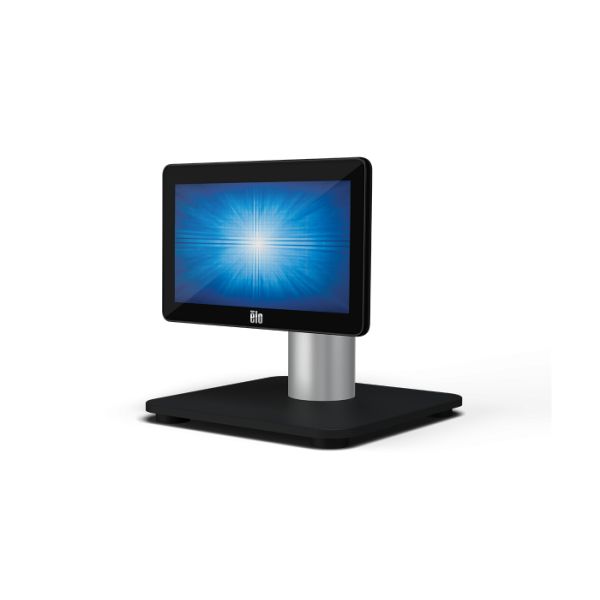

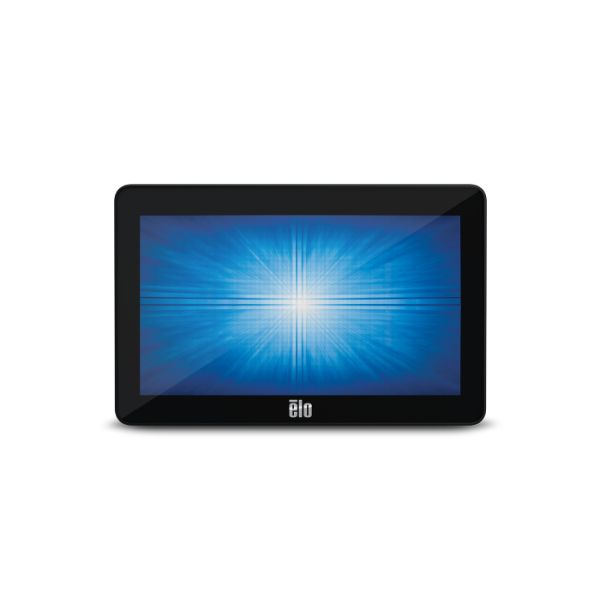

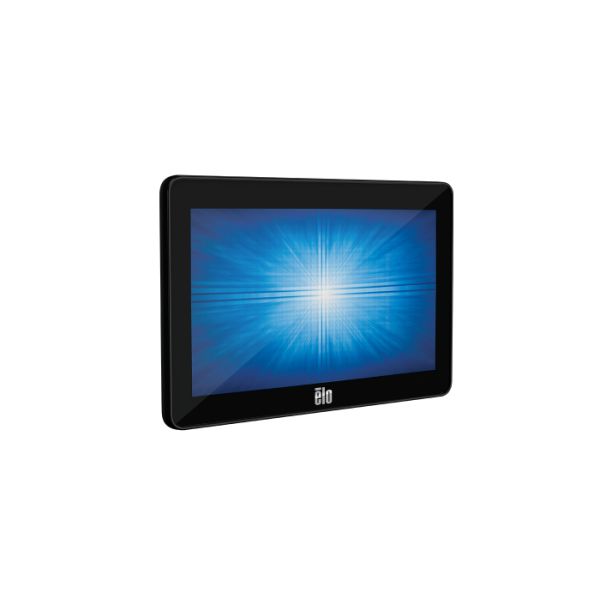

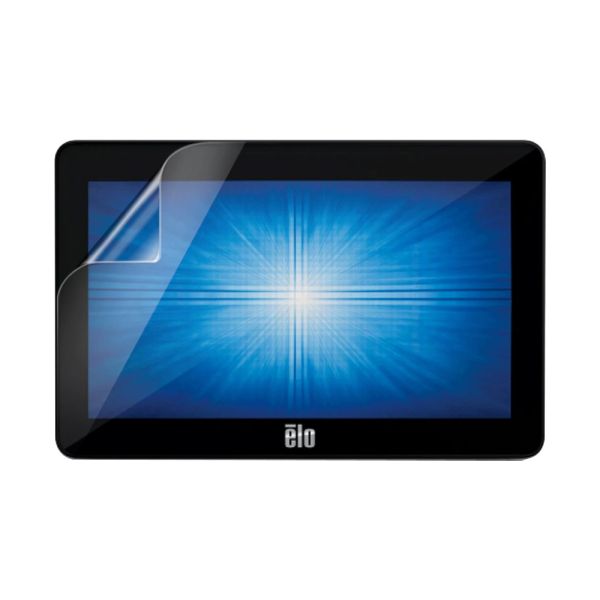

Elo Touch Solutions 0702L 17,8 cm (7") 800 x 480 Pixels LCD/TFT Touchscreen Multi-gebruiker Zwart

Elo Touch Solutions 0702L, 17,8 cm (7"), 800 x 480 Pixels, LCD/TFT, 25 ms, Zwart

Ruim op voorraad

Fabrikant Elo
MPN E796382
EAN 0843173110721
€ 256,00 excl. BTW

Elo Touch Solutions 0702L 17,8 cm (7") 800 x 480 Pixels LCD/TFT Touchscreen Multi-gebruiker Zwart

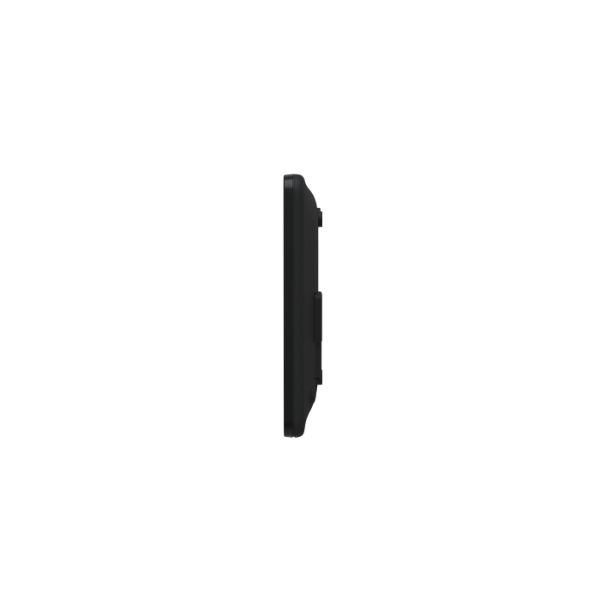

Touchscreen Monitor The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.

Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again. DisplayLink technology supports Windows, Android and Linux operating systems.

Well-Suited for…
Every business is different. Whether you need a customer-facing, point-of-sale touchscreen to display a transaction or an interactive display in a restaurant to enable guests to view the menu and make their orders, the 0702L provides the features to meet your installation needs with a modern, sleek aesthetic.

Mount With Flexibility

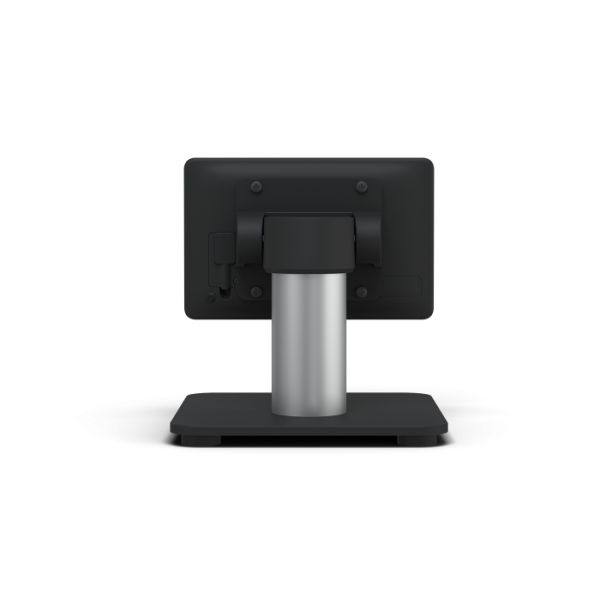

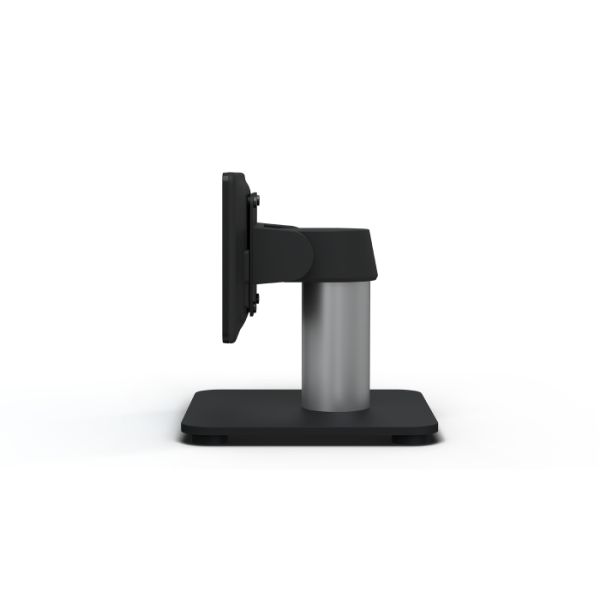

Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.

Brilliant Displays from 7 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.

EloCareSM – We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.


Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5 years. We pride ourselves on being one of the best manufacturers in the market—we design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our products, and your maximum ROI.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
17,8 cm (7")
Resolutie*
800 x 480 Pixels
Display technologie*
LCD/TFT
Touchscreen*
Ja
Touch screen type
Multi-gebruiker
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Hoeveelheid simultane aanraakpunten
10
Responstijd
25 ms
Beeldscherm vorm*
Flat
Beeldverhouding
5:3
Typische contrastverhouding*
500:1
Maximale refresh snelheid*
60 Hz
Kijkhoek, horizontaal
150°
Kijkhoek, verticaal
120°
Beeldscherm, aantal kleuren*
16,2 miljoen kleuren
Helderheid
500 cd/m²

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee
OmniTapps Multitouch compatibiliteit
Nee

Design

Kleur van het product*
Zwart
Internationale veiligheidscode (IP)
IP54, IP65
Certificering
cUL, IC, CCC, CE, FCC, UL, VCCI, CB, RCM, NOM

Poorten & interfaces

Aantal micro-USB-poorten
1
USB Touch port
Ja

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
75 x 75 mm
Ophangsysteem voor aan de muur
Ja

Energie

Stroomverbruik (typisch)*
3,7 W
Stroomverbruik (indien uit)
1,9 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 95 procent

Inhoud van de verpakking

Meegeleverde kabels
Micro-USB
Snelstartgids
Ja

Gewicht en omvang

Breedte ( zonder voet )
18,1 cm
Diepte ( zonder voet )
11,7 cm
Hoogte (zonder voet )
1,77 cm
Gewicht (zonder voet)
350 g

Verpakking

Breedte verpakking
232 mm
Diepte verpakking
95 mm
Hoogte verpakking
170 mm
Gewicht verpakking
650 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Effectieve beelddiameter
154,08 x 85,92 mm
