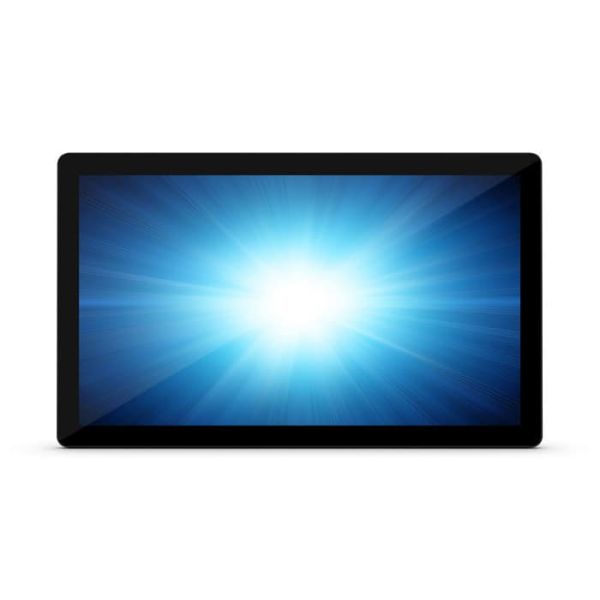

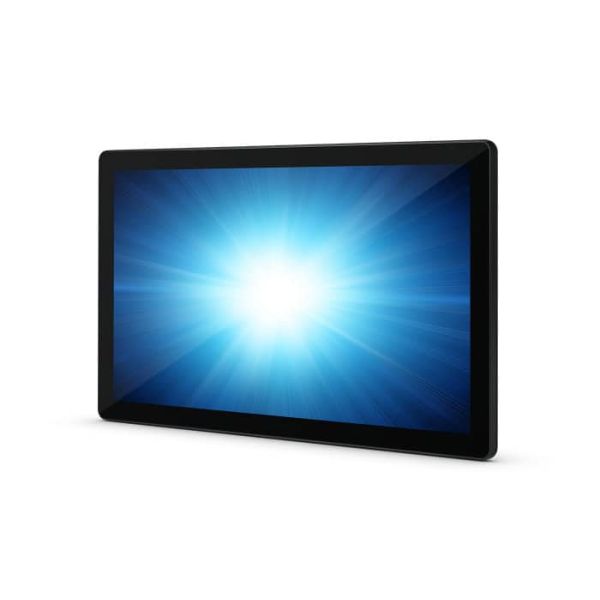

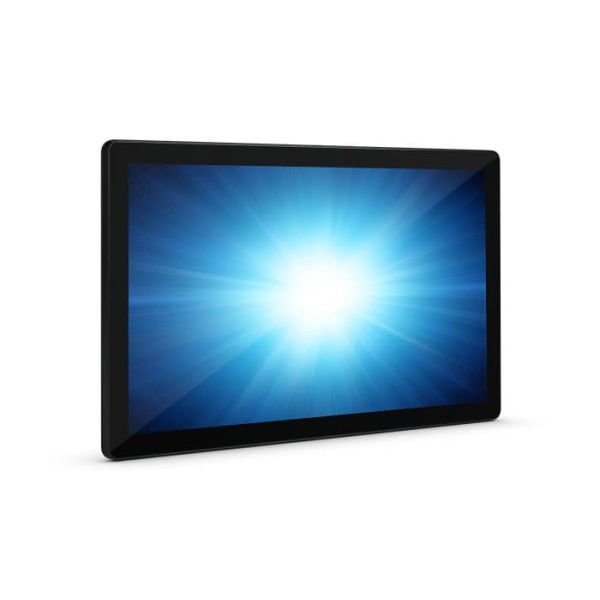

Elo Touch Solutions I-Series E693022 All-in-One PC/workstation Intel® Core™ i5 54,6 cm (21.5") 1920 x 1080 Pixels Touchscreen 8 GB DDR4-SDRAM 128 GB SSD All-in-One tablet PC Windows 10 Wi-Fi 5 (802.11ac) Zwart
I-Series for Windows Elo's I-Series for Windows delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful, Windows-based platform—all in a sleek, yet durable fixed tablet form factor.
Built on a modular platform and available with either 15-inch or 22-inch displays, the I-Series for Windows can be found in installations across the globe, from in-store interaction and point-of-sale to self-service, hospitality and corporate office environments. The uses are virtually unlimited.
Endless Versatility
The Elo I-Series offers versatility across environments. From retail and entertainment to corporate offices and signage, the I-Series is an excellent choice to meet the demands of continuous public use.
Configure with Elo Edge Connect Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripherals that seamlessly attach to the edge of the touchscreen. And you can add or swap them out later as your needs change.

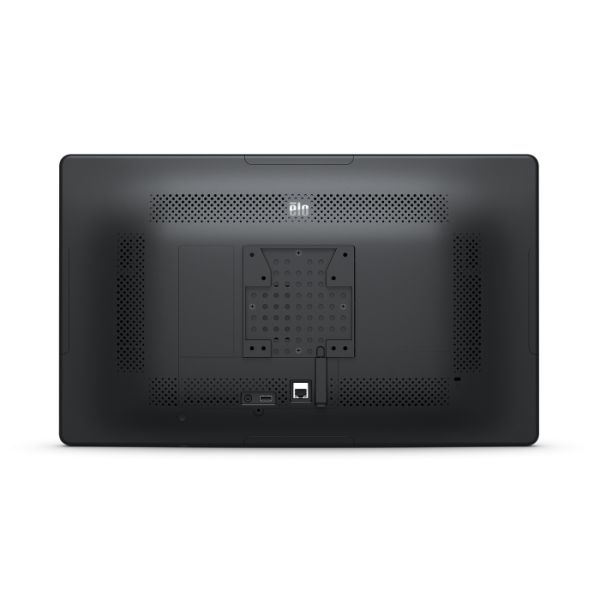

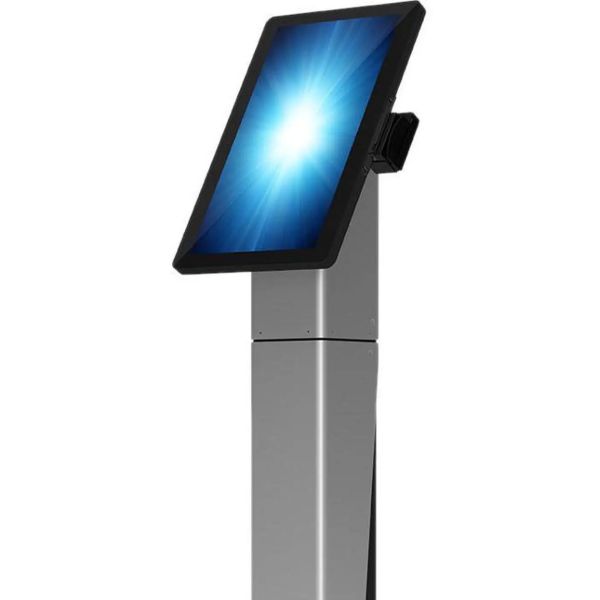

Stands & Mounts With a standard VESA mount, we give you the flexibility to mount our products however you want.
Windows or Linux. You Choose.
Elo's I-Series utilizes the reliability-tested performance and security of Intel's 8th-generation processors and vPro™ platform. Available with Windows 10 or, for added flexibility, the I-Series offers models with no OS-all pretested with Linux SuSE, Ubuntu and Red Hat operating systems-allowing businesses to get the solution best suited for them.
Get Peace of Mind With EloCare EloCare is service and support from the people who know your Elo products best. From extended warranties and on-site exchange to advance unit replacement and field services, the highly skilled Elo technical specialists will get you up and running.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Beeldscherm
Beeldschermdiagonaal*
54,6 cm (21.5")
Resolutie*
1920 x 1080 Pixels
Touchscreen*
Ja
HD type*
Full HD
LED backlight
Ja
Touch technologie
Multi-touch
Oorspronkelijke beeldverhouding
16:9
Helderheid
225 cd/m²
Responstijd
14 ms
Beeldscherm vorm
Flat
Beeldscherm, aantal kleuren
16.78 miljoen kleuren
Processor
Processorfabrikant*
Intel
Processorgeneratie
Intel® 8de generatie Core™ i5
Processormodel*
i5-8500T
Processorfamilie*
Intel® Core™ i5
Frequentie van processor*
2,1 GHz
Maximale turbofrequentie van processor
3,5 GHz
Aantal processorkernen
6
Processor aantal threads
6
Processor cache
9 MB
Processor cache type
Smart Cache
Systeembus
8 GT/s
64-bit computing
Ja
Thermal Design Power (TDP)
35 W
Configureerbare TDP-downfrequentie
1,6 GHz
Configureerbare TDP-down
25 W
PCI Express slots versie
3.0
Processor socket
LGA 1151 (Socket H4)
Processor lithografie
14 nm
Processor operating modes
64-bit
Stepping
U0
Bus type
DMI3
Codenaam processor
Coffee Lake
Maximaal aantal PCI Express-lijnen
16
PCI Express configuraties
1x16, 1x8+2x4, 2x8
Processorcode
SR3XD
Tjunction
100 °C
Maximaal intern geheugen ondersteund door processor
64 GB
Conflictvrije processor
Ja
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
2666 MHz
Geheugenbandbreedte ondersteund door de processor ( max)
