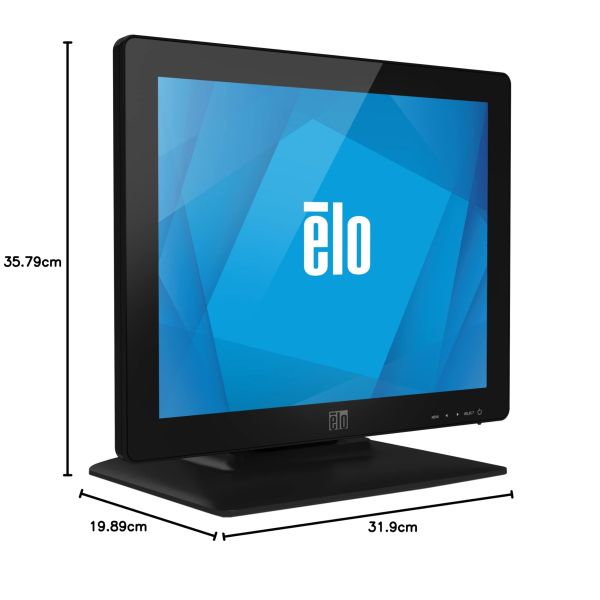

Elo Touch Solutions 1523L computer monitor 38,1 cm (15") 1024 x 768 Pixels LCD Touchscreen Zwart

Elo Touch Solutions 1523L, 38,1 cm (15"), 1024 x 768 Pixels, LCD, 16 ms, Zwart

Nog 20 beschikbaar

Fabrikant Elo Touch Solutions
MPN E738607
EAN 0741149333115
€ 980,00 excl. BTW

Elo Touch Solutions 1523L computer monitor 38,1 cm (15") 1024 x 768 Pixels LCD Touchscreen Zwart

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.

The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.

Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
38,1 cm (15")
Resolutie*
1024 x 768 Pixels
Oorspronkelijke beeldverhouding*
4:3
Display technologie*
LCD
Touchscreen*
Ja
Touchscreen technologie
Projected capacitive-systeem
Responstijd
16 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
640 x 480 (VGA), 1024 x 768 (XGA), 720 x 400, 800 x 600 (SVGA)
Beeldverhouding
4:3
Typische contrastverhouding*
700:1
Kijkhoek, horizontaal
160°
Kijkhoek, verticaal
140°
Beeldscherm, aantal kleuren*
16,2 miljoen kleuren
Grootte beeld (horizontaal)
30,5 cm
Grootte beeld (verticaal)
22,9 cm
Digitale horizontale frequentie
31 - 80 kHz
Digitale verticale frequentie
56 - 75 Hz
Helderheid
270 cd/m²
LED backlight
Ja

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde luidsprekers*
Ja
Aantal luidsprekers
2
Gemiddeld vermogen
4 W

Design

Kleur van het product*
Zwart

Poorten & interfaces

Type USB-upstreampoort
USB Type-B
Aantal upstream-poorten
1

Poorten & interfaces

Aantal USB Type-A downstream-poorten
2
DVI-poort
Ja
DVI-D poorten
1

Ergonomie

Paneelmontage-interface
75 x 75 mm
Ophangsysteem voor aan de muur
Ja

Energie

Stroomverbruik (typisch)*
10,5 W
Stroomverbruik (in standby)*
1,2 W
Stroomverbruik (indien uit)
0,2 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-20 - 60 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 80 procent
Luchtvochtigheid bij opslag
10 - 95 procent

Gewicht en omvang

Breedte apparaat (met standaard)
358,1 mm
Diepte apparaat (met standaard)
199,1 mm
Hoogte apparaat (met standaard)
318,5 mm
Gewicht (met standaard)
4,2 kg

Verpakking

Breedte verpakking
447 mm
Diepte verpakking
207 mm
Hoogte verpakking
380 mm
Gewicht verpakking
7 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Afmetingen (B x D x H) met voet
358,1 x 199,1 x 318,5 mm
Effectieve beelddiameter
229,1 x 305,1 mm
Mean time between failures (MTBF)
50000 uur
