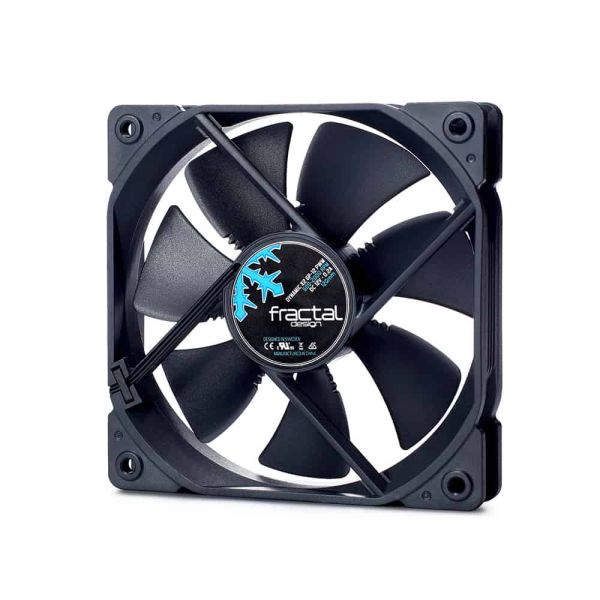

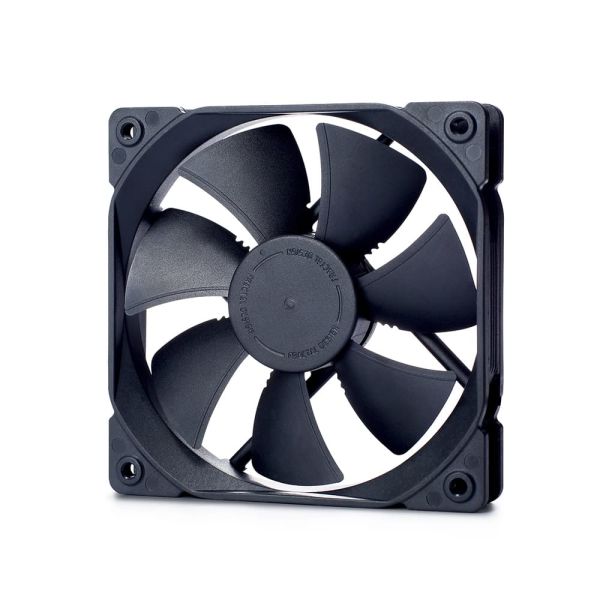

Fractal Design Dynamic X2 GP-12 PWM Computer behuizing Ventilator 12 cm Zwart 1 stuk(s)

Fractal Design Dynamic X2 GP-12 PWM, Ventilator, 12 cm, 500 RPM, 2000 RPM, 32,2 dB, 87,6 cfm

Nog slechts 4 beschikbaar

Fabrikant Fractal Design
MPN DYN-X2-GP12-PWM-BK
EAN 7340172701880
€ 14,00 excl. BTW

Fractal Design Dynamic X2 GP-12 PWM Computer behuizing Ventilator 12 cm Zwart 1 stuk(s)

The Fractal Design Dynamic X2 series are true all-purpose fans, offering excellent airflow and outstanding 100,000-hour life expectancy thanks to the new LLS (Long Life Sleeve) bearing.

Added PWM support offers precise fan control via a wide speed adjustment range of 500 to 2,000 RPM allowing users to select their ideal mix of silent operation and maximum airflow.

The customized design of the Dynamic X2 results in a beautiful fan that helps to keep your system cool, yet quiet. Designed together with Fractal Design's high-end Venturi Series, the Dynamic X2 incorporates aerodynamic elements of airplane wing designs for significant noise reduction.

Available in multiple colors including black, white, and the classic Fractal Design white-on-black combination, the Dynamic X2 series are the perfect choice for those seeking an expertly balanced fan with exceptional dependability.
  • High-grade LLS bearing with 100,000-hour MTBF delivers long-lasting dependability
  • PWM support offers a wide 500 to 2,000 RPM speed adjustment range for silent operation under lighter loads and maximum airflow during more demanding activity. (120 mm versions)
  • Counter-balanced magnet reduces axial tension on the bearing, resulting in less wear over time
  • Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
  • Aerodynamic stator with embedded wiring helps reduce noise and unwanted turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts
  • “Trip wire” technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quiet fan environment
  • Customized design contributes to a cool running and beautiful looking build
  • Available in 120mm and 140mm sizes and multiple colors including black, white or the signature Fractal Design white-on-black combination

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

Geschikte locatie*
Computer behuizing
Soort*
Ventilator
Ventilator diameter
12 cm
Rotatiesnelheid ( min)
500 RPM
Rotatiesnelheid ( max)
2000 RPM
Geluidsniveau (lage snelheid)
10 dB
Geluidsniveau (hoge snelheid
32,2 dB
Minimum luchtstroom
30,5 cfm
Maximum luchtstroom
87,6 cfm
Minimum luchtdruk
0,51 mmH2O
Maximum luchtdruk
2,3 mmH2O
Aantal per verpakking
1 stuk(s)
Mean time between failures (MTBF)
100000 uur

Design

Kleur van het product*
Zwart
Aantal ventilatoren
1 ventilator(en)
Aantal ventilatorbladen
7
Fan connector
4-pin

Energie

Spanning
12 V
Startspanning
6 V
Nominale netspanning
0,2 A

Gewicht en omvang

Breedte
120 mm
Diepte
25 mm
Hoogte
120 mm
Gewicht
159 g
Snoerlengte
0,5 m
Gewicht verpakking
200 g

Inhoud van de verpakking

Inclusief schroeven
Ja

Overige specificaties

Land van herkomst
Zweden

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
