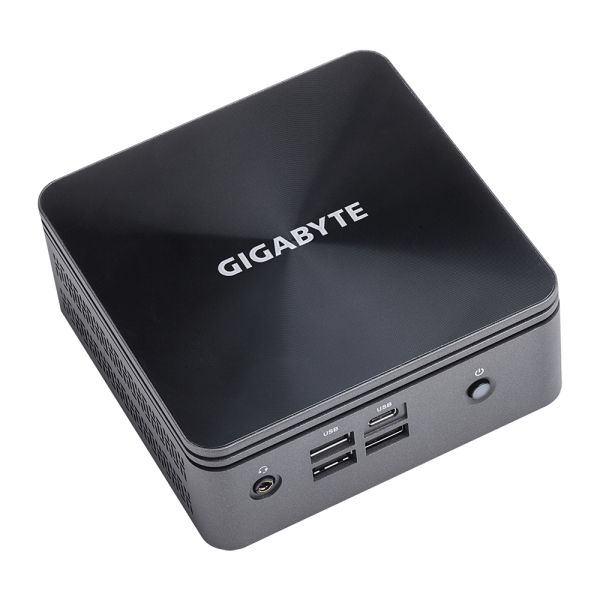

GIGABYTE GB-BRI3H-10110 PC/workstation barebone Zwart i3-10110U BGA 1528 2,1 GHz

GIGABYTE GB-BRI3H-10110, Mini PC barebone, BGA 1528, M.2, PCI Express, SATA, Ethernet LAN, Wi-Fi 5 (802.11ac), 90 W

Ruim op voorraad

Fabrikant Gigabyte
MPN BRI3H-10110
EAN 4719331191474
€ 360,00 excl. BTW

GIGABYTE GB-BRI3H-10110 PC/workstation barebone Zwart i3-10110U BGA 1528 2,1 GHz

Gigabyte BRIX s GB-BRi3H-10110 (rev. 1.0) - Barebone - Ultra Compact PC Kit - 1 x Core i3 10110U / 2,1 GHz - RAM 0GB - UHD Graphics - GigE (BRI3H-10110)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant
Intel
Processorfamilie
Intel® Core™ i3
Processorgeneratie
Intel® 10de generatie Core™ i3
Processormodel
i3-10110U
Aantal processorkernen
2
Processor aantal threads
4
Maximale turbofrequentie van processor
4,1 GHz
Frequentie van processor
2,1 GHz
Type processor*
Ja
Processor lithografie
14 nm
Thermal Design Power (TDP)
15 W
Codenaam processor
Comet Lake
CPU configuratie (max)
1

Geheugen

Geheugen slots type*
SO-DIMM
Aantal geheugenslots*
2
Maximum intern geheugen
64 GB
Supported memory clock speeds
2666 MHz

Opslagmedia

Ondersteunde types opslag-drives*
HDD & SSD
Opslagschijf afmetingen ondersteund*
2.5"
SSD-vormfactor
2.5"
Opslag schijf-interface
M.2, PCI Express, SATA
Aantal storage drives ondersteund
1

Grafisch

Ingebouwde grafische adapter*
Ja
Grafische adapter-familie
Intel
On-board graphics adapter model
Intel® UHD Graphics
Maximum resolutie
4096 x 2304 Pixels

Netwerk

Wi-Fi-standaarden
Wi-Fi 5 (802.11ac)
Ethernet LAN*
Ja
Wifi*
Ja
LAN controller
Realtek RTL8111HS
Bluetooth
Ja
Bluetooth-versie
4.2

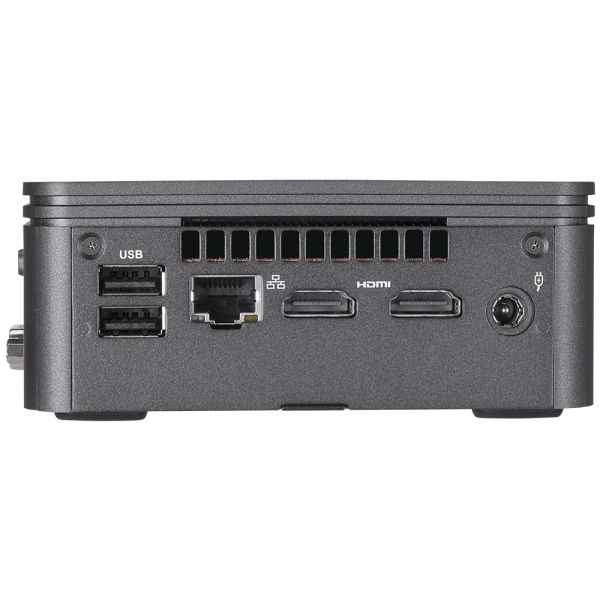

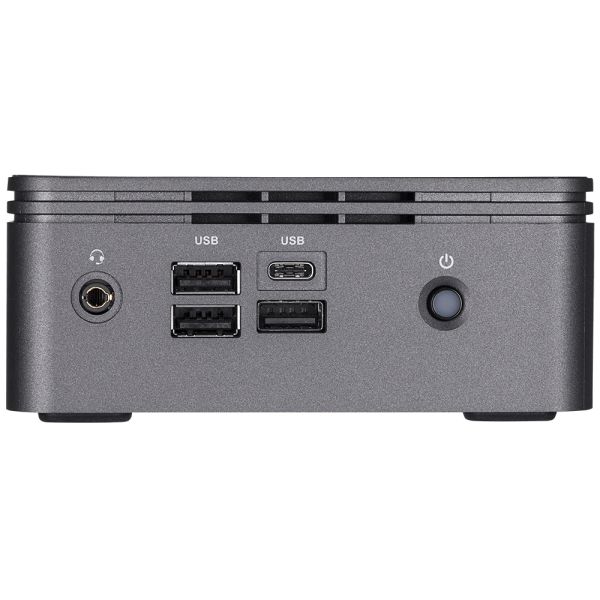

Poorten & interfaces

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A
5
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C
1
Aantal HDMI-poorten*
2
Combo koptelefoon/microfoon port
Ja
Aantal Ethernet LAN (RJ-45)-poorten*
1

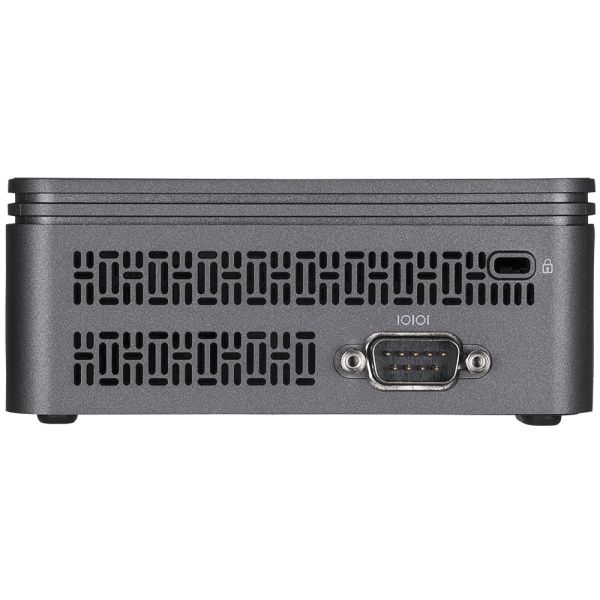

Aantal COM-poorten
1
Aansluiting voor netstroomadapter
Ja

Uitbreidingsmodules

PCI Express slots versie
3.0
PCI-slots
1
Aantal M.2 (M) slots
1
PCI Express configuraties
1x4, 2x2, 1x2+2x1, 4x1

Design

Kleur van het product*
Zwart

Design

Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
VESA-montage
Ja
Paneelmontage-interface
75 x 75,100 x 100 mm
Type product*
Mini PC barebone

Prestatie

Processor socket
BGA 1528
Audiochip
Realtek ALC255

Processor speciale functies

Ingebouwde opties beschikbaar
Nee
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Quick Sync Video Technology
Ja
Intel® Clear Video HD Technology (Intel® CVT HD)
Ja
Intel® Turbo Boost Technology
2.0
Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® 64
Ja
Intel® My WiFi Technology (Intel® MWT)
Ja
Idle States
Ja
Enhanced Intel SpeedStep Technology
Ja
Thermal Monitoring Technologies
Ja
Intel® Flex Memory Access
Ja
Intel® Identity Protection Technology (Intel® IPT)
Ja
Intel® Trusted Execution Technology
Nee
Execute Disable Bit
Ja
Intel® TSX-NI
Nee
Intel® Secure Key
Ja
Intel® Stable Image Platform Program (SIPP)
Nee
Intel® OS Guard
Ja
Intel® Clear Video-technologie
Ja
Intel® Virtualization Technology (VT-x)
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84713000

Software

Ondersteunt Windows
Windows 10
Inclusief besturingssysteem
Nee

Energie

Netvoeding
90 W
AC-adapter, uitgangsspanning
19 V
AC-adapter, uitgangsstroom
4,3 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 50 °C
Temperatuur bij opslag
-20 - 60 °C

Gewicht en omvang

Breedte
119,5 mm
Diepte
119,5 mm
Hoogte
46,8 mm

Overige specificaties

ARK ID processor
196451
