Gigabyte GB-BMPD-6005 PC/workstation barebone Zwart N6005 2 GHz

Gigabyte GB-BMPD-6005, Mini PC barebone, DDR4-SDRAM, SATA III, Ethernet LAN, Wi-Fi 5 (802.11ac)

Niet op voorraad

Fabrikant Gigabyte
MPN GB-BMPD-6005
EAN 4719331600846
€ 190,00 excl. BTW

Gigabyte GB-BMPD-6005 PC/workstation barebone Zwart N6005 2 GHz

Intel® Pentium® Silver and Celeron® Processor
BRIX use the newest Intel® Pentium® Silver and Celeron® processors offer amazing video conferencing abilities, faster wireless connectivity, improved overall application and graphics performance, and long battery life. BRIX with Intel Pentium Silver and Celeron processor family delivers unmatched balance of performance, experience and value for education and entry level computing. The platform includes ultra-fast Wi-Fi , 4K media support, next-gen Intel UHD Graphics and improvements in security in your choice of platform and OS at a price point for users who want rich experiences at a great value.

Latest Intel 10nm Pentium Silver/ Celeron Processor Performance
Intel new generation of small processor is much more powerful than before. Thanks new 10nm manufacturing processing and new core/GPU architectures, user can benefit not only performance boost, but also enjoy high-detail of UHD contents never before. Overall system benchmark can be easily over 40% and UP.

The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.0 support for 5 Gb/s transfer speed.

Dual Storage Support
New generation of BRIX can not only support newest PCI-e /SATA based M.2 SSD (1x2280), but also can be loaded with a traditional 2.5” HDD/SSD as well. It allows user to mixed dual storages at same time. Use M.2 SSD for faster boot up / load applications, and use large capacity HDD for all kind of media contents, files, documents without space limitation.

DDR4 2933MHz Support
GIGABYTE BRIX provides a 128-bit memory controller that supports DDR4 at up to 2933MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and high bandwidth interface. The primary advantages of DDR4 over its predecessor, DDR3, include higher module density and lower voltage requirements, coupled with higher data rate transfer speeds.

VESA Support
Bundled with a VESA bracket, the GIGABYTE BRIX™ can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

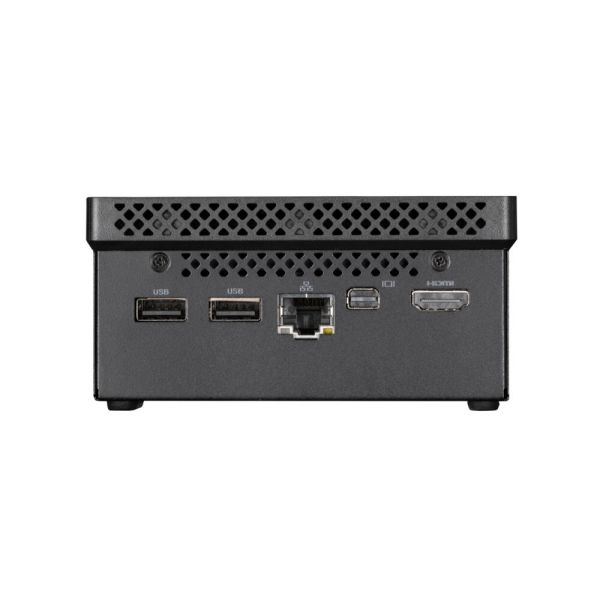

System Overview
GIGABYTE BRIX mini PC with latest Intel 10nm Pentium Silver/ Celeron Processor offering tons useful I/O connectors. It offer up to 4 USB 3.1 ports with 1 newest USB Type-C, HD audio headphone/MIC inputs, plus a convenience HDMI 2.0+ mDP video output allow user to hook up any type of monitor. A gigabit ethernet speed up your internet/intranet connectivity.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Type processor*
Ja
Processorfabrikant
Intel
Processorfamilie
Intel® Pentium® Silver
Processormodel
N6005
Frequentie van processor
2 GHz
Aantal processorkernen
4
Processor aantal threads
4
Maximale turbofrequentie van processor
3,3 GHz
Processor cache
4 MB
Thermal Design Power (TDP)
10 W
CPU configuratie (max)
1

Geheugen

Geheugen slots type*
SO-DIMM
Aantal geheugenslots*
1
Maximum intern geheugen
16 GB
Supported memory clock speeds
2933 MHz
Ondersteunde geheugen types
DDR4-SDRAM

Opslagmedia

Ondersteunde types opslag-drives*
HDD & SSD
Opslagschijf afmetingen ondersteund*
2.5"
Opslag schijf-interface
SATA III

Grafisch

Ingebouwde grafische adapter*
Ja
Grafische adapter-familie
Intel
On-board graphics adapter model
Intel® UHD Graphics

Audio

Ingebouwde luidsprekers*
Nee

Netwerk

Wifi-standaard
Wi-Fi 5 (802.11ac)
Wi-Fi-standaarden
Wi-Fi 5 (802.11ac)
Ethernet LAN*
Ja
Wifi*
Ja
Bluetooth
Ja

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
3
Aantal poortenUSB 3.2 Gen 1 (3.1 Gen 1) Type C
1
Aantal HDMI-poorten*
1
HDMI versie
2.0

Poorten & interfaces

DVI-poort
Ja
Mini DisplayPort kwantiteit
1
Microfoon, line-in ingang
Ja
Hoofdtelefoonuitgangen
1
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluiting voor netstroomadapter
Ja

Design

Kleur van het product*
Zwart
Aan/uitschakelaar
Ja
Bevestigingsmogelijkheid voor kabelslot
Ja
Kabelslot sleuf type
Kensington
VESA-montage
Ja
Paneelmontage-interface
75 x 75 mm
Type product*
Mini PC barebone

Processor speciale functies

Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® 64
Ja
Idle States
Ja
Enhanced Intel SpeedStep Technology
Ja
Intel® Trusted Execution Technology
Nee
Intel® Virtualization Technology (VT-x)
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84713000

Energie

Soort voeding*
Externe AC-adapter
AC-ingangsspanning
100 - 240 V
AC-adapter, uitgangsspanning
19 V
AC-adapter, uitgangsstroom
2,1 A

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 35 °C
Temperatuur bij opslag
-20 - 60 °C

Gewicht en omvang

Breedte
562,2 mm
Diepte
103 mm
Hoogte
116,5 mm
