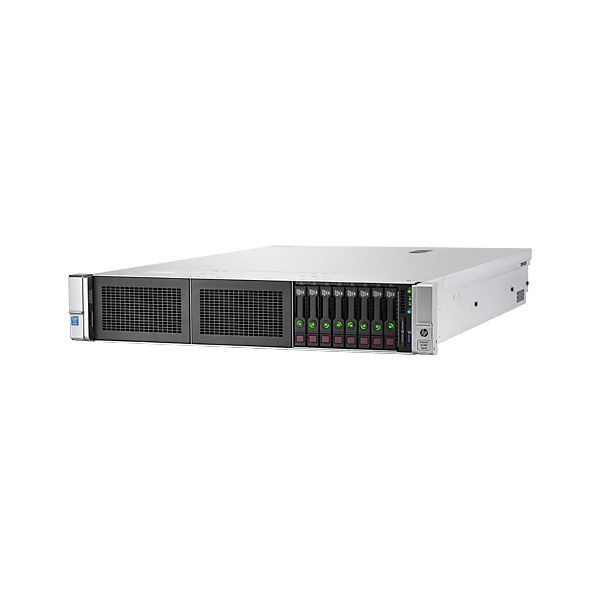

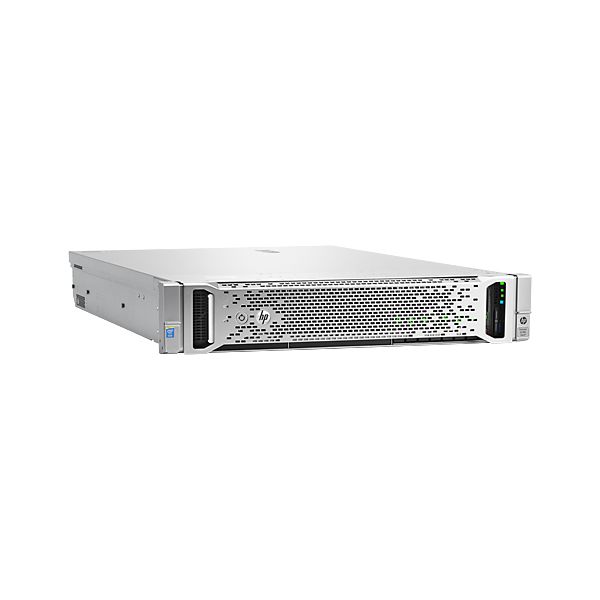

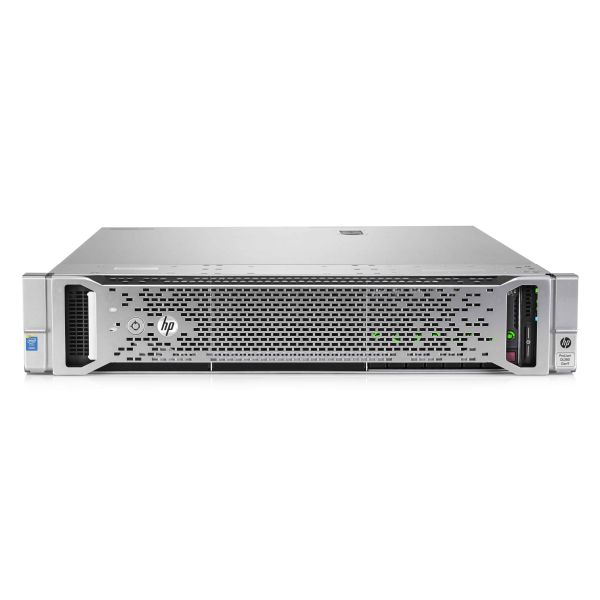

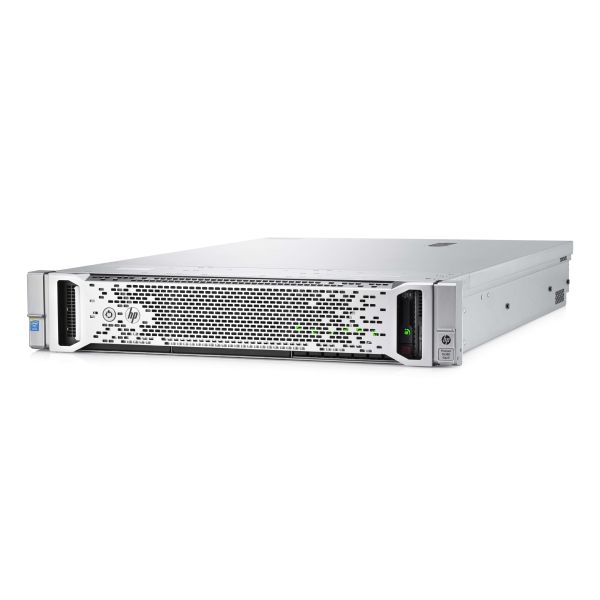

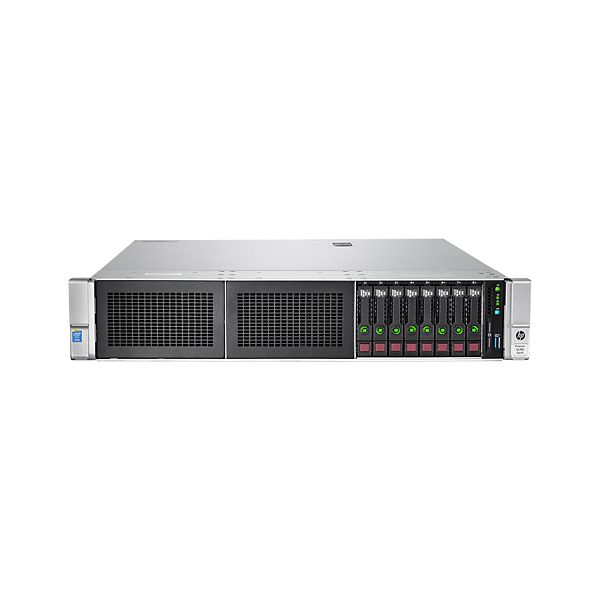

Hewlett Packard Enterprise ProLiant DL380 Gen9 server Rack (2U) Intel® Xeon® E5 v3 E5-2650V3 2,3 GHz 32 GB DDR4-SDRAM 800 W

Hewlett Packard Enterprise ProLiant DL380 Gen9, 2,3 GHz, E5-2650V3, 32 GB, DDR4-SDRAM, 800 W, Rack (2U)

Bel of chat voor info

Fabrikant HP
MPN 752689-B21
EAN 0888182442654
€ 8.087,00 excl. BTW

Hewlett Packard Enterprise ProLiant DL380 Gen9 server Rack (2U) Intel® Xeon® E5 v3 E5-2650V3 2,3 GHz 32 GB DDR4-SDRAM 800 W

What is your server bottleneck...storage, processing, expansion?

The world’s best-selling server [1] just got better. The HP ProLiant DL380 Gen9 Server delivers the latest performance and expandability in the HP 2P rack portfolio. Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, making it ideal for any server environment. Deploy the data center standard.

Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v3 processors with up to 70% [2] performance gain, plus the latest HP DDR4 SmartMemory offering up to 14% [3] performance increase. Additional support for 12 Gb/s SAS, 10GbE NIC with a broad range of graphics and compute options. Manage the DL380 Gen9 Server in any IT environments by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease. Run everything from the most basic to mission critical applications, and can be deployed with confidence.

Flexible Design Makes Your Investment "Future Proof" So It Can Grow as Your Business Needs Expand

• The HP ProLiant DL380 Gen9 Server has a flexible redesigned chassis, including new HP Universal Media Bay configuration options with 8 to 24 Small Form Factor (SFF) and 4 or 12 Large Form Factor (LFF) drive options; with additional rear drive support for expandability and investment protection.


World-class Performance and Industry-leading Energy Efficiency

• The HP ProLiant DL380 Gen9 Server supports industry standard Intel E5-2600v3 processors with up to 18 cores, 12G SAS and HP DDR4 Smart Memory.


Agile Infrastructure Management for Accelerating IT Service Delivery

• With HP DL380 Server, HP OneView provides converged management for automation simplicity across servers, storage and networking.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processorfamilie*
Intel® Xeon® E5 v3
Processormodel*
E5-2650V3
Frequentie van processor*
2,3 GHz
Maximale turbofrequentie van processor
3 GHz
Aantal processorkernen
10
Processor cache
25 MB
Chipset moederbord
Intel C610
Geheugenkanalen ondersteund door processor
Quad
Aantal geïnstalleerde processoren
2
Thermal Design Power (TDP)
105 W
Processor cache type
Smart Cache
Systeembus
9,6 GT/s
Max. aantal SMP-processoren
2
Processor socket
LGA 2011-v3
Processor lithografie
22 nm
Processor aantal threads
20
Processor operating modes
64-bit
Stepping
M1
FSB Parity
Nee
Bus type
QPI
aantal QPI links
2
Codenaam processor
Haswell
Tcase
78,9 °C
Maximaal intern geheugen ondersteund door processor
768 GB
Geheugentypen ondersteund door processor
DDR4-SDRAM
Klokgeheugen-snelheden ondersteund door processor
1600,1866,2133 MHz
Geheugenbandbreedte ondersteund door de processor ( max)
68 GB/s
ECC ondersteund door processor
Ja
Execute Disable Bit
Ja
Idle States
Ja
Thermal Monitoring Technologies
Ja
Maximaal aantal PCI Express-lijnen
40
PCI Express configuraties
x4, x8, x16
Verpakkingsgrootte processor
52.5 x 45 mm
Ondersteunde instructie sets
AVX 2.0
Processorcode
SR1YA
Schaalbaarheid
2S
Physical Address Extension (PAE)
46 Bit
Ingebouwde opties beschikbaar
Nee
Processorserie
Intel Xeon E5-2600 v3
Conflictvrije processor
Nee

Geheugen

Intern geheugen*
32 GB
Intern geheugentype*
DDR4-SDRAM
Geheugenslots
24x DIMM
ECC
Ja
Kloksnelheid geheugen
2133 MHz
Geheugenlayout
2 x 16 GB
Maximum intern geheugen*
384 GB

Opslagmedia

Maximale opslagcapaciteit*
52 TB
HDD interface
SATA, Serial Attached SCSI (SAS)
HDD omvang
2.5"
Maximum aantal HDD's per behuizing
8
RAID support*
Ja
Soorten RAID
0, 1, 5, 10
Soort optische drive*
DVD-RW

Netwerk

Ethernet LAN
Ja
Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten*
4

Poorten & interfaces

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A
3
VGA (D-Sub)poort(en)
2

Uitbreidingsmodules

PCI Express slots versie
3.0

Design

Type behuizing*
Rack (2U)

Software

Inclusief besturingssysteem*
Nee
Compatibele besturingssystemen*
Microsoft Windows Server Canonical Ubuntu Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) Oracle Solaris VMware Citrix XenServer

Processor speciale functies

CPU configuratie (max)
2
Intel® Rapid Storage Technology
Nee
Enhanced Intel SpeedStep Technology
Ja
Intel® Identity Protection Technology (Intel® IPT)
Nee
Intel® Wireless Display (Intel® WiDi)
Nee
Intel® Virtualization Technology for Directed I/O (VT-d)
Ja
Intel® Anti-Theft Technology (Intel® AT)
Nee
Intel® Hyper Threading Technology (Intel® HT Technology)
Ja
Intel® My WiFi Technology (Intel® MWT)
Nee
Intel® Turbo Boost Technology
2.0
Intel® Quick Sync Video Technology
Nee
Intel® InTru™ 3D Technology
Nee
Intel® Clear Video HD Technology (Intel® CVT HD)
Nee
Intel® Insider™
Nee
Intel® Flex Memory Access
Nee
Intel® Smart Cache
Ja
Intel® AES New Instructions (Intel® AES-NI)
Ja
Intel® Trusted Execution Technology
Ja
Intel® Enhanced Halt State
Ja
Intel® VT-x with Extended Page Tables (EPT)
Ja
Intel® Demand Based Switching
Ja
Intel® Secure Key
Ja
Intel® TSX-NI
Nee
Intel® OS Guard
Ja
Intel® Clear Video-technologie
Nee
Intel® Clear Video Technology for Mobile Internet Devices (Intel® CVT for MID)
Nee
Intel® 64
Ja
Versie Intel® Identity Protection Technology
0,00
Versie Intel® Secure Key Technology
1,00
Intel® Virtualization Technology (VT-x)
Ja
Versie Intel® TSX-NI
0,00
Intel® Dual Display Capable Technology
Nee
Intel® FDI Technology
Nee
Intel® Fast Memory Access
Nee
ARK ID processor
81705

Energie

Redundante voeding*
Ja
Netvoeding*
800 W
Aantal hoofdvoedingen
2

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84714100

Gewicht en omvang

Breedte
445,4 mm
Diepte
730,2 mm
Hoogte
87,3 mm
Gewicht
14,8 kg

Technische details

Duurzaamheidscertificaten
ENERGY STAR

Overige specificaties

Grafische adapter
G200eH2
Grafische adapter-familie
Matrox
