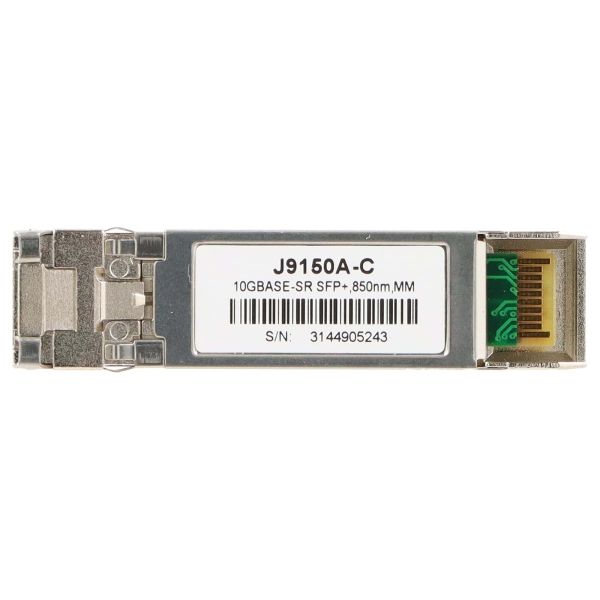

ProLabs J9150A-C netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+ 850 nm

ProLabs J9150A-C, Vezel-optiek, 10000 Mbit/s, SFP+, LC, SR, 300 m

Ruim op voorraad

Fabrikant HP
MPN J9150A-C
EAN 5055989716324
€ 50,00 excl. BTW

ProLabs J9150A-C netwerk transceiver module Vezel-optiek 10000 Mbit/s SFP+ 850 nm

While most optical transceivers are defined by standard bodies or Multi-source Agreements (MSAs), many optical switch and transport OEMs add information in the DOM that require match or the transceiver is not interoperable. ProLabs transceivers are the high-quality, dependable, cost-effective alternative. ProLabs offers all the standard transceiver packages including the code to be interoperable giving you a single source for your transceiver needs.

ProLabs offers an extensive range of optical and copper transceivers to fit your requirements. All transceivers are standards-based and comply with the MSA (Multi-Source Agreement). Transceivers range from 100BASE-FX to 100Gb and cover optical and copper transceivers such as GBIC, SFP, Xenpak, X2, XFP, SFP+, QSFP+, CFP and QSFP28.

ProLabs transceivers are manufactured utilising the highest quality components available. Our commitment to quality means we produce a consistent, standardised product, purpose-built for compatibility with today’s top Original Equipment Manufacturer (OEM) specification.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Soort aansluiting*
SFP+
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
SFP-zendernorm
SR
Maximaal bereik
300 m
Golflengte
850 nm
Tx vermogen (min)
-7 dBmW
Tx vermogen (max)
-1 dBmW

Kenmerken

Kleur van het product
Zilver

Energie

Maximaal voltage
3,3 V

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C

Gewicht en omvang

Breedte
45 mm
Diepte
20 mm
Hoogte
115 mm
Gewicht
32 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)

Overige specificaties

RX sensitiviteit
-12,5 dB

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
