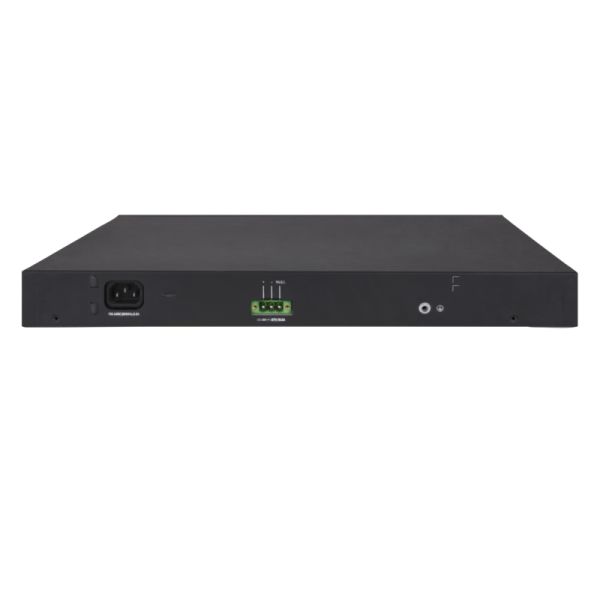

Hewlett Packard Enterprise OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

Hewlett Packard Enterprise OfficeConnect 1950 24G 2SFP+ 2XGT PoE+, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Nog slechts 8 beschikbaar

Fabrikant HP
MPN JG962A#ABB
EAN 0888182695203
€ 470,00
€ 353,00 excl. BTW

Hewlett Packard Enterprise OfficeConnect 1950 24G 2SFP+ 2XGT PoE+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grijs

HP 1950 Switches are smart web-managed Gigabit switches with 10G uplinks, for small business customers needing advanced high-performance connections. The series has two standard models and two PoE+ models, 24 and 48 Gigabit ports, each with two 10GBASE-T ports and two 10G SFP+ high-bandwidth ports.

The switches deliver true-stacking, allowing up to four devices to be logically administered as a single entity. They support Layer 3 static routing on IPv4 and IPv6. Other advanced features include ACLs, 802.1X, STP, RSTP, and MSTP. Limited lifetime warranty covers unit, fans and power supplies.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Meer informatie

Conditie HP Renew

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
24
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
2
Console port
RJ-45

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
10G support*
Ja
Koperen ethernetbekabelingstechnologie
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Ja
Datastroombeheer
Ja
Broadcast stormbeheer
Ja
Rate limiting
Ja
Auto MDI/MDI-X
Ja
Spanning tree protocol
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
128 Gbit/s
Throughput
95,2 Mpps
MAC-adrestabel*
16384 entries
Latentie (10-100 Mbps)
5 µs
Latentie (1 Gbps)
5 µs
Latentie (10 Gbps)
1,5 µs
Jumbo Frames ondersteuning
Ja
Packet buffergeheugen
1,5 MB

Beveiliging

DHCP-functies
DHCP client
Access Control List (ACL)
Ja
IGMP snooping
Ja

Beveiliging

SSH/SSL support
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
1U
Kleur van het product
Grijs

Prestatie

Virtual stacking (units)
4
Type geheugen
SDRAM
Intern geheugen
1024 MB
Flash memory
128 MB

Energie

Vermogenstoevoer inclusief*
Ja
AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Vermogensverbruik (max)
425 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
370 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
440 mm
Diepte
360 mm
Hoogte
44 mm
Gewicht
6 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
