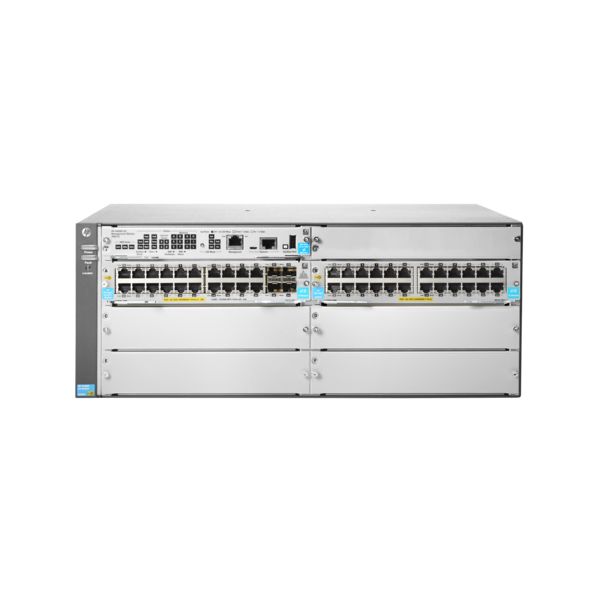

Hewlett Packard Enterprise 5406R 44GT PoE+ & 4-port SFP+ (No PSU) v3 zl2 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Grijs

Hewlett Packard Enterprise 5406R 44GT PoE+ & 4-port SFP+ (No PSU) v3 zl2, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 4U

Nog slechts 4 beschikbaar

Fabrikant HP
MPN JL003A
EAN 0888182604373
€ 8.934,00 excl. BTW

Hewlett Packard Enterprise 5406R 44GT PoE+ & 4-port SFP+ (No PSU) v3 zl2 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 4U Grijs

The HP 5400R zl2 Switch Series is an industry leading mobile campus access solution with HP Smart Rate multi-gigabit ports for high speed connectivity and bandwidth for next wave 802.11ac devices. It brings enterprise-class resiliency and innovative flexibility and scalability to converged campus networks.

Robust virtualization with HP AllianceOne solutions, hitless failover, QoS and security with full L3 features and flexible connectivity including 40 Gigabit Ethernet ports and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beheerfuncties

Switch type*
Managed
Switch-laag
L3
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
44
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF
4
Compatibele geheugenkaarten
SD

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3u
10G support*
Ja
Full duplex
Ja
IP routing
Ja
Routing entries
10000
Auto MDI/MDI-X
Ja
Auto-sensing
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
960 Gbit/s
Throughput
571,4 Mpps
MAC-adrestabel*
64000 entries
Latentie (1 Gbps)
2,8 µs
Latentie (10 Gbps)
1,8 µs
Jumbo Frames ondersteuning
Ja

Beveiliging

DHCP-functies
DHCP server
Access Control List (ACL)
Ja
IGMP snooping
Ja
SSH/SSL support
Ja

Design

Rack-montage*
Ja
Stapelbaar*
Ja
Vormfactor
4U
Kleur van het product
Grijs

Prestatie

Type processor
Ja
Processormodel
QorIQ P2020
Frequentie van processor
1200 MHz
Type geheugen
DDR3-SDRAM
Intern geheugen
4096 MB
Flash memory
16 MB
Geluidsniveau
44 dB

Energie

Vermogenstoevoer inclusief*
Nee
AC-ingangsspanning
110 - 240 V
AC-ingangsfrequentie
50 - 60 Hz

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent

Gewicht en omvang

Breedte
444,5 mm
Diepte
450,9 mm
Hoogte
175,3 mm
Gewicht
12,8 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
