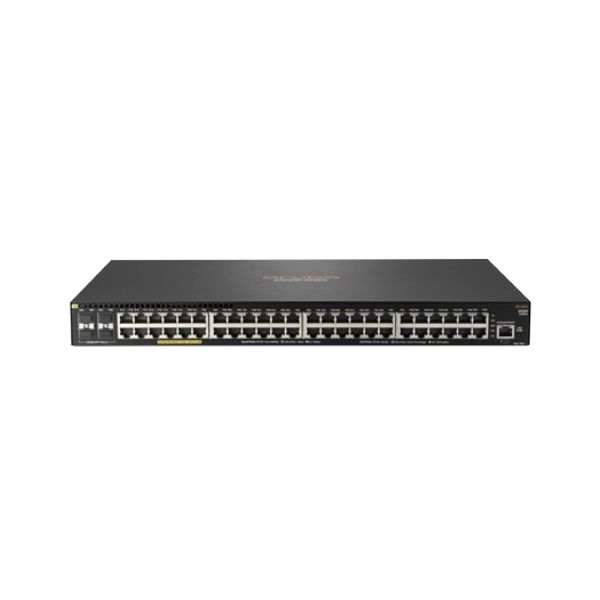

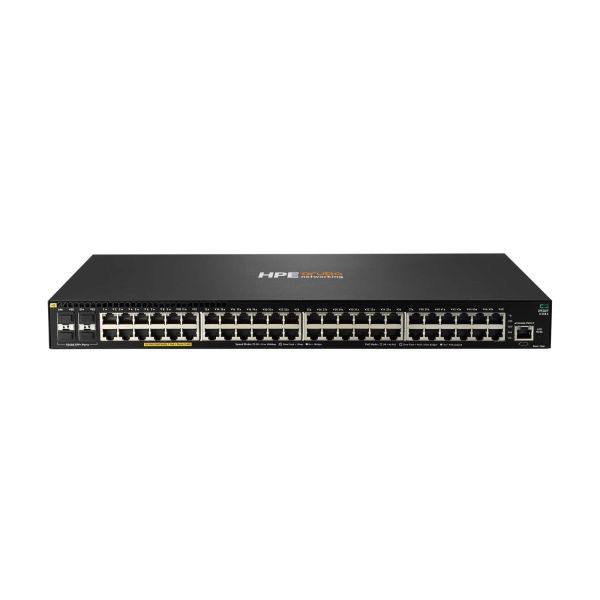

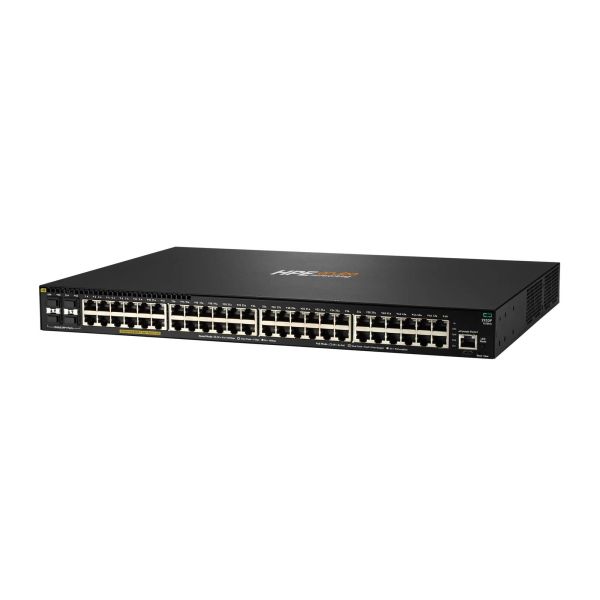

Aruba, a Hewlett Packard Enterprise company 2930F Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

Aruba, a Hewlett Packard Enterprise company 2930F, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack-montage, 1U

Ruim op voorraad

Fabrikant HP
MPN JL558A#ABB
EAN 0190017219677
€ 2.498,00
€ 1.992,00 excl. BTW

Aruba, a Hewlett Packard Enterprise company 2930F Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Zwart

The Aruba 2930F Switch Series is designed for customers creating smart digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These convenient Layer 3 network switches include built-in uplinks and power so are simple to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. A powerful Aruba ProVision ASIC delivers performance, robust feature support and value with programmability
for the latest applications. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access
OSPF routing, Dynamic Segmentation, robust QoS, RIP routing, and IPv6 with no software licensing required. The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning. The robust Layer 3 feature set includes a limited lifetime warranty.
  • Aruba Layer 3 switch series with VSF stacking, static, RIP and Access OSPF Routing, Dynamic Segmentation, ACLs, and robust QoS
  • Supports advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
  • Convenient built-in 1GbE or 10GbE uplinks and up to 740 W PoE+
  • Software defined ready with REST APIs and OpenFlow support
  • Simple deployment with Zero Touch Provisioning

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Meer informatie

Staat HP Renew

Specificaties

Beheerfuncties

Switch type*
Managed
Quality of Service (QoS)
Ja
Web-gebaseerd management
Ja
System event log
Ja

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
48
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)
Aantal moduleslots SPF+
4
Console port
RJ-45/micro-USB

Netwerk

Netwerkstandaard*
IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
10G support*
Ja

Data-uitwisseling

Switchingcapaciteit*
176 Gbit/s
Throughput
112 Mpps
MAC-adrestabel*
32786 entries
Latentie (1 Gbps)
3,8 µs
Latentie (10 Gbps)
1,6 µs

Design

Rack-montage*
Ja
Vormfactor
1U
Kleur van het product
Zwart

Prestatie

Type processor
Ja
Processormodel
ARM Cortex-A9
Frequentie van processor
1016 MHz

Prestatie

Type geheugen
DDR3-SDRAM
Flash memory
4000 MB
Geluidsniveau
55,1 dB

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
Stroom
9.2/ 4.9 A
Stroomverbruik (typisch)
49,9 W
Vermogensverbruik (max)
980 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Totaal Power over Ethernet (PoE)-budget
740 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 40 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
15 - 95 procent
Luchtvochtigheid bij opslag
15 - 95 procent
Warmtedissipatie
420,9 BTU/h

Gewicht en omvang

Breedte
442,5 mm
Diepte
32 mm
Hoogte
43,9 mm
Gewicht
4,79 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
