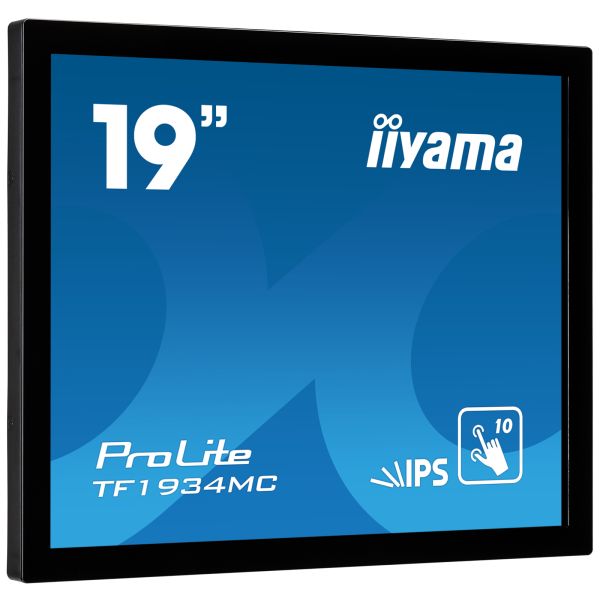

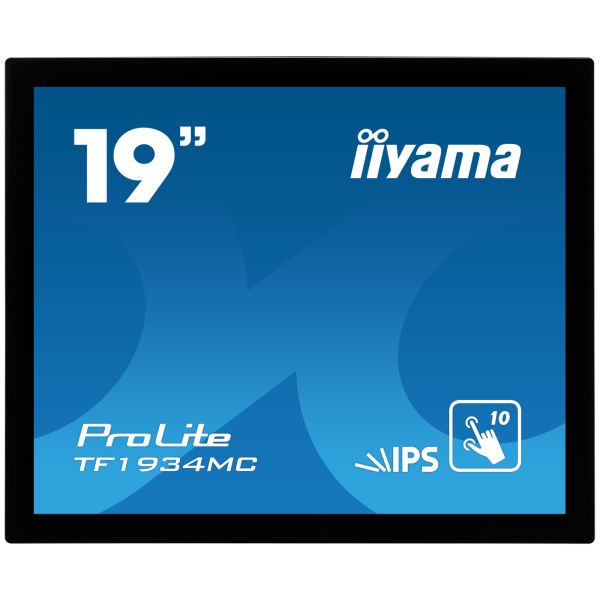

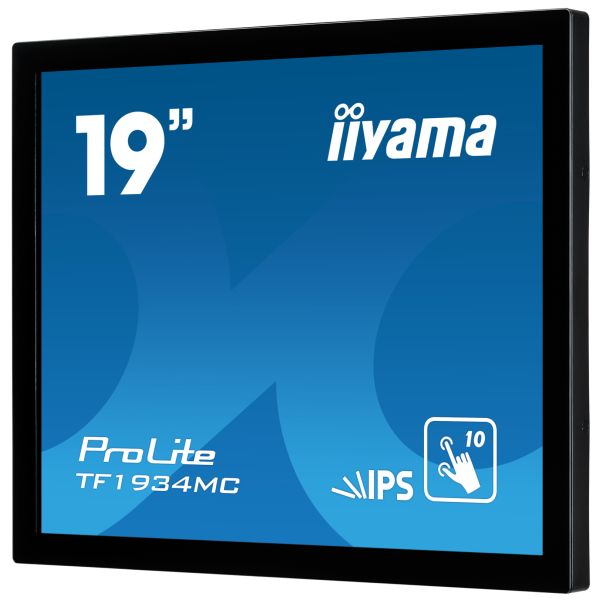

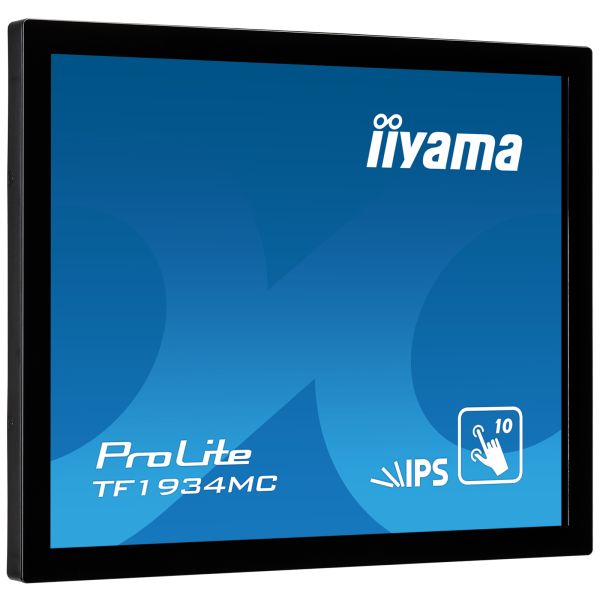

iiyama ProLite TF1934MC-B7X computer monitor 48,3 cm (19") 1280 x 1024 Pixels SXGA LED Touchscreen Zwart

iiyama ProLite TF1934MC-B7X, 48,3 cm (19"), 1280 x 1024 Pixels, SXGA, LED, 14 ms, Zwart

Ruim op voorraad

Fabrikant Iiyama
MPN TF1934MC-B7X
EAN 4948570118403
€ 449,00 excl. BTW

iiyama ProLite TF1934MC-B7X computer monitor 48,3 cm (19") 1280 x 1024 Pixels SXGA LED Touchscreen Zwart

10pt touch Open Frame monitor with IPS panel and touch through glass function
ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets (OMK1-1) making it an ideal solution for kiosk integrators and Instore Retail.

TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

ANTI-FINGERPRINT COATING
This special Nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen.

IPS TECHNOLOGY
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.

SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
  • anti-fingerprint coating, touch through-glass
  • IP65 (front)
  • OSD key lock

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Beeldscherm

Beeldschermdiagonaal*
48,3 cm (19")
Resolutie*
1280 x 1024 Pixels
HD type*
SXGA
Oorspronkelijke beeldverhouding*
5:4
Display technologie*
LED
Soort paneel*
IPS
Backlight type
LED
Touchscreen*
Ja
Touchscreen technologie
Projected capacitive-systeem
Touch technologie
Multi-touch
Responstijd
14 ms
Beeldscherm vorm*
Flat
Ondersteunde grafische resoluties
1280 x 1024 (SXGA)
Beeldverhouding
5:4
Contrast ratio (dynamisch)
1000:1
Kijkhoek, horizontaal
178°
Kijkhoek, verticaal
178°
Beeldscherm, aantal kleuren*
16.78 miljoen kleuren
Pixel pitch
0,294 x 0,294 mm
Frequentiebereik horizontaal
31,4 - 80 kHz
Grootte beeld (horizontaal)
30,1 cm
Grootte beeld (verticaal)
37,6 cm
Grootte beeld (diagonaal)
48 cm
Schermdiameter in centimeters
48 cm
Helderheid
350 cd/m²
LED backlight
Ja

Prestatie

NVIDIA G-SYNC*
Nee
AMD FreeSync*
Nee

Multimedia

Ingebouwde camera*
Nee
Ingebouwde microfoon
Nee

Design

Kleur van het product*
Zwart
Internationale veiligheidscode (IP)
IP65

Design

Glas dikheid
6 mm
Certificering
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead

Poorten & interfaces

VGA (D-Sub)poort(en)
1
HDMI*
Ja
Aantal HDMI-poorten
1
Aantal DisplayPorts
1
HDCP
Ja

Ergonomie

VESA-montage*
Ja
Paneelmontage-interface
100 x 100 mm
Ophangsysteem voor aan de muur
Ja
On Screen Display (OSD)
Ja
On Screen Display (OSD)-talen
Duits, Engels, Spaans, Frans, Italiaans, Japans
Aantal On Screen Display-talen
7

Energie

Energie-efficiëntieklasse (SDR)*
F
Energieverbruik (SDR) per 1000 uur*
18 kWu
Stroomverbruik (typisch)*
21 W
Stroomverbruik (in standby)*
1,5 W
Stroomverbruik (indien uit)
1,5 W
Soort voeding
DC
Energie-efficiëntieschaal
A tot G

Gewicht en omvang

Breedte ( zonder voet )
41,6 cm
Diepte ( zonder voet )
4,65 cm
Hoogte (zonder voet )
34,4 cm
Gewicht (zonder voet)
4,4 kg

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85285210

Overige specificaties

Effectieve beelddiameter
376,5 x 301,1 mm
Verbinding met pc
Ja
