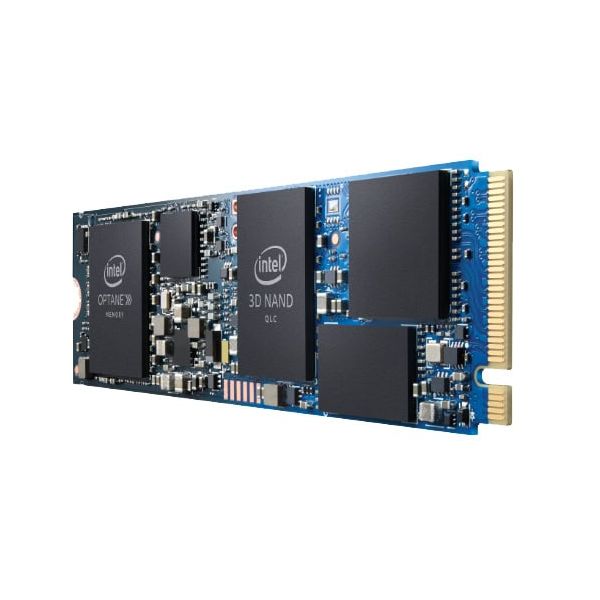

Intel Optane HBRPEKNX0101A internal solid state drive M.2 256 GB PCI Express 3.0 3D XPoint + QLC 3D NAND NVMe

Intel Optane HBRPEKNX0101A, 256 GB, M.2

Ruim op voorraad (levering verwacht binnen 3 dagen)

Fabrikant Intel
MPN HBRPEKNX0101A01
EAN 0675901705882
€ 106,00
€ 96,00 excl. BTW

Intel Optane HBRPEKNX0101A internal solid state drive M.2 256 GB PCI Express 3.0 3D XPoint + QLC 3D NAND NVMe

Enhanced Power Loss Data Protection

Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.

Temperature Monitoring and Logging

Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.

End-to-End Data Protection

End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.

Intel® Rapid Start Technology

Intel® Rapid Start Technology allows quick system resumes from the hibernate state.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
M.2
SSD capaciteit*
256 GB
Interface*
PCI Express 3.0
Type geheugen*
3D XPoint + QLC 3D NAND
NVMe*
Ja
Component voor*
PC/notebook
Leeslatentie
8 µs
Schrijflatentie
30 µs
End-to-End Data Protection
Ja
Enhanced Power Loss Data Protection technology
Ja
SSD temperatuur bewaking
Ja
Temperatuurbewaking en -registratie
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^15 bits read
Mean time between failures (MTBF)
1600000 uur
SSD ARK ID
189614

Energie

Stroomverbruik (lezen)
5,3 W
Stroomverbruik (schrijven)
5,3 W
Stroomverbruik (idle)
0,012 W

Brand-specifieke functies

Intel® Rapid Start Technology
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C

Eisen aan de omgeving

Maximale temperatuur (in bedrijf)
70 °C
Trillingen, in bedrijf
2,17 G
Trillingen bij opslag
3,13 G
Schokbestendigheid
1000 G
Schokbestendigheid (buiten gebruik)
1500 G
Schok in/buiten gebruik
1000 G / 0.5 ms and 1500 G / 0.5 ms

Gewicht en omvang

Breedte
80 mm
Hoogte
22 mm
Gewicht
10 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
8471706000

Overige specificaties

Lanceringsdatum
04/10/2019
URL productsamenvatting
https://www.intel.com/content/www/us/en/products/docs/memory-storage/optane-memory/optane-memory-h10-solid-state-storage-brief.html
Random schrijven (8 GB span)
150000 IOPS
SSD-uithoudingsrating
75 TBW
SSD-stroomverbruik (inactief)
L1.2 : <12mW
Sequentiële leessnelheid
1450 MB/s
Sequentiële schrijfsnelheid
650 MB/s
Status
Launched
Random lezen (8 GB span)
230000 IOPS
