Intellinet 508193 netwerk media converter 10000 Mbit/s Zwart

Intellinet 508193, 10000 Mbit/s, IEEE 802.3u, 10 Gigabit Ethernet, 10,100,1000,1200,2500,5000,10000 Mbit/s, Volledig, Half, SFP+

Ruim op voorraad

Fabrikant Intellinet
MPN 508193
EAN 0766623508193
€ 344,00 excl. BTW

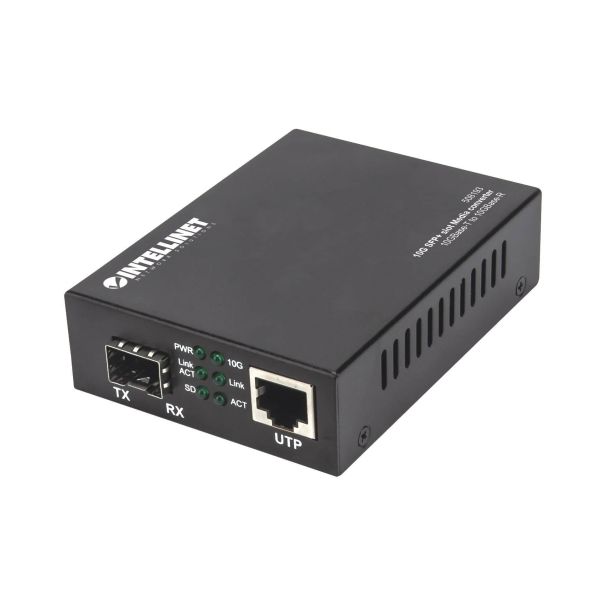

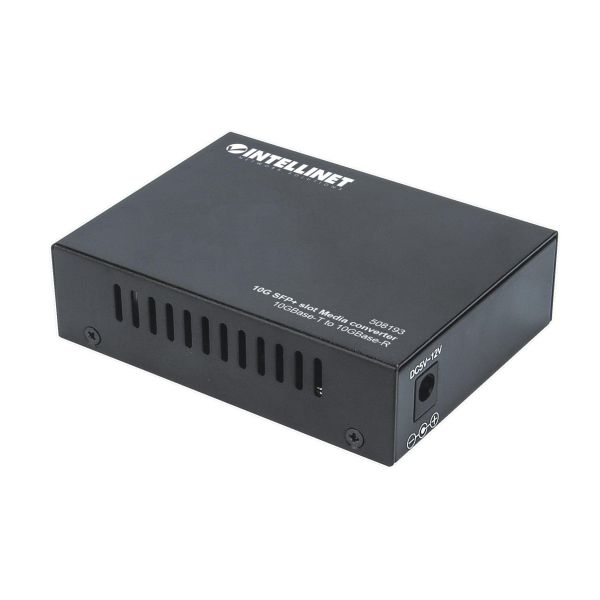

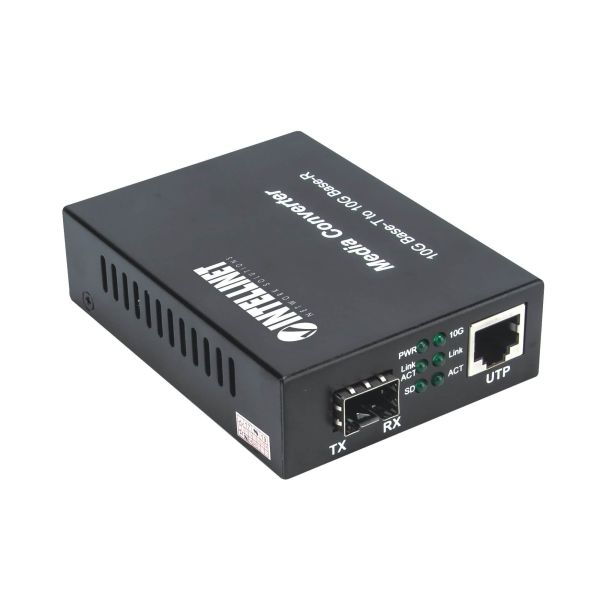

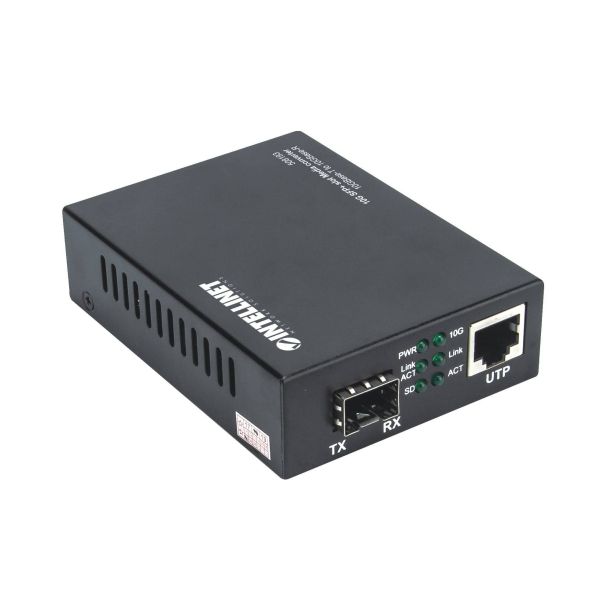

Intellinet 508193 netwerk media converter 10000 Mbit/s Zwart

The Intellinet Network Solutions 10GBase-T to 10GBase-R Media Converter offers the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and Fibre media. And with a super-fast 10 Gbps connection, network speed stays constant for high-bandwidth data transfers._x000D_
_x000D_
Expand The size of an existing network._x000D_
_x000D_
The 10GBase-T to 10GBase-R Media Converter Provides fibre connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers._x000D_
_x000D_
Enhance the distance between networking devices._x000D_
_x000D_
Connecting the converter to fibre segments further extends distances between network nodes, offering increased spatial and distance options for networks where none existed before._x000D_
_x000D_
Cabling Flexibility_x000D_
_x000D_
Network managers can install fibre cabling anywhere within a network without changing the arrangement of their copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rackmountable chassis, providing much-needed flexibility for networks.
  • One 10 GB RJ45 port — maximum distance of 100 m (300 ft.)
  • One 10 GB SFP+ port
  • Supports IEEE802.3u, 10GBase-T and 10GBase-FL
  • Supports full-duplex mode or half-duplex mode operation with autonegotiation

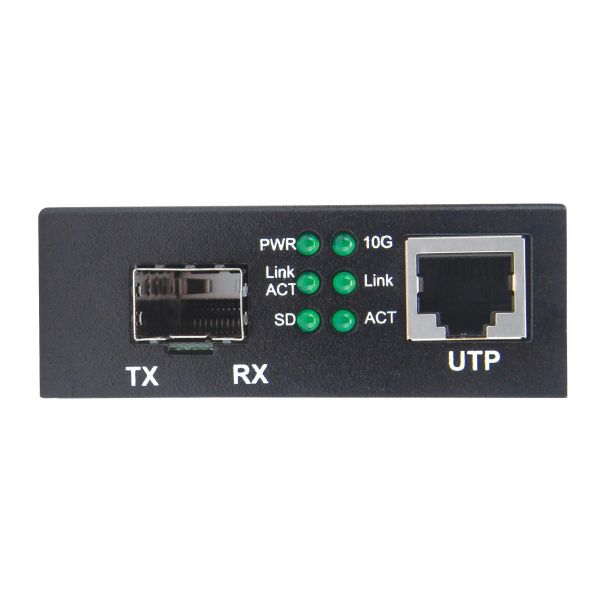

  • Status LEDs for power and Link/TX for both ports

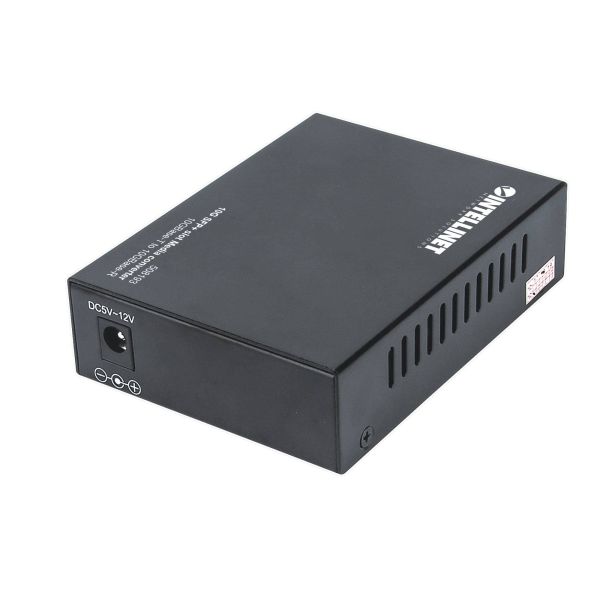

  • External 12 VDC power adapter
  • Three-year warranty

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard
IEEE 802.3u
Ethernet interface type
10 Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,1200,2500,5000,10000 Mbit/s
Auto-negotiation
Ja
Duplex systeem
Volledig, Half

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SFP+

Prestatie

Maximaal bereik*
100 m

Design

Intern*
Nee
LED-indicatoren
Activiteit, Link
Kleur van het product
Zwart
Materiaal behuizing
Metaal

Energie

Ingangsspanning
12 V
Stroom
0.5 A
Vermogensverbruik (max)
5 W
Externe adapter
Ja

Gewicht en omvang

Breedte
70 mm
Diepte
95 mm
Hoogte
25 mm
Gewicht
200 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-10 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 80 procent

Inhoud van de verpakking

Gebruikershandleiding
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
