Intellinet 508346 netwerk media converter 1000 Mbit/s 1310 nm Single-mode Zwart

Intellinet 508346, 1000 Mbit/s, 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-LX, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, Volledig, Half, Cat5e

Nog 2 beschikbaar (bel voor reservering)

Fabrikant Intellinet
MPN 508346
EAN 0766623508346
€ 137,00 excl. BTW

Intellinet 508346 netwerk media converter 1000 Mbit/s 1310 nm Single-mode Zwart

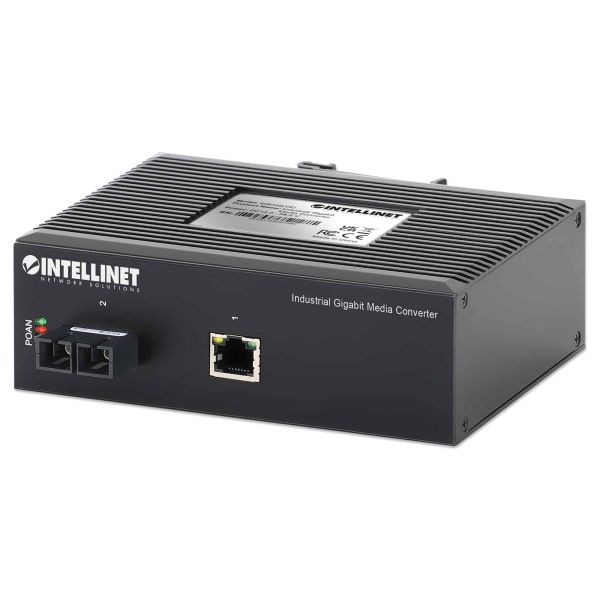

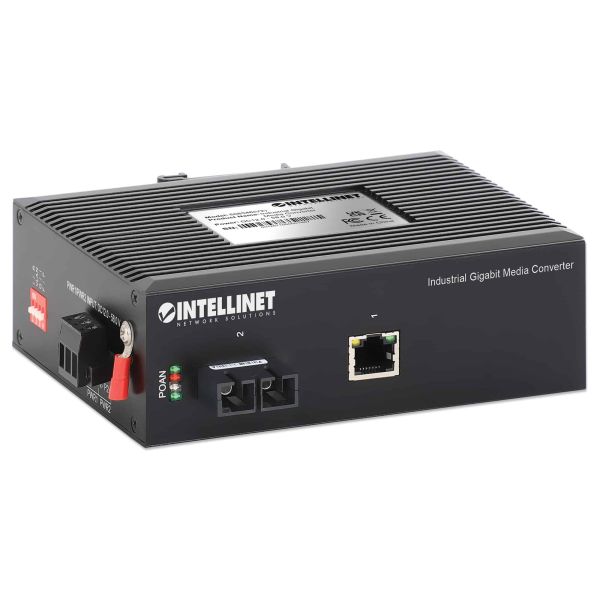

Industrial Media Converter - expand your existing network in harsh industrial environments
The Intellinet Network Solutions Gigabit Industrial Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. It provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.

Equipped even for challenging environment conditions
With its rugged, protective metal housing, the converter operates reliably and quietly, even in extreme temperatures from -40 – 75℃ (-40 – 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this converter is ideal for IoT applications in Industry 4.0 and more.

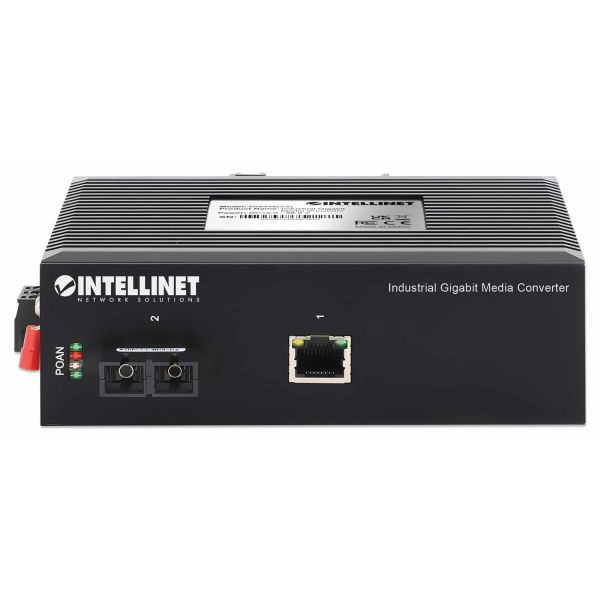

  • One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
  • One 1000Base-LX fiber SC single-mode port supporting a maximum distance of 20 km (12.4 mi.)
  • IP40 slim-type metal housing to withstand harsh industrial conditions

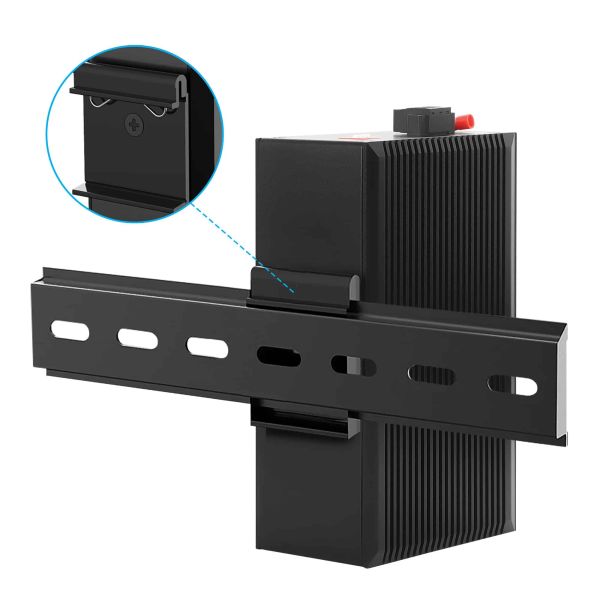

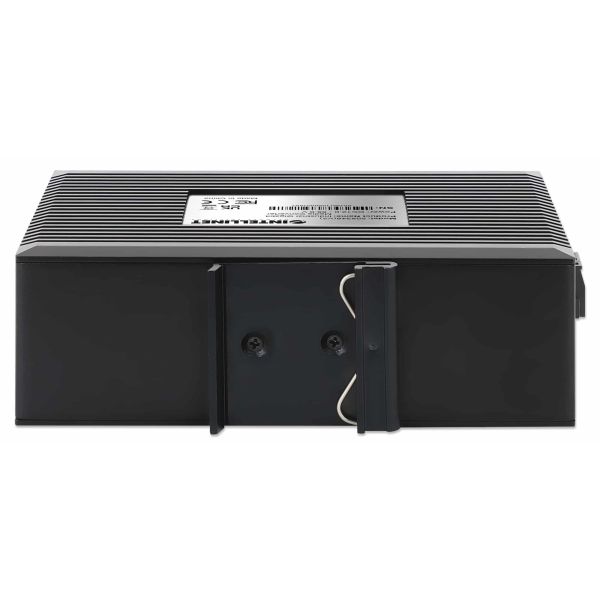

  • Option for DIN-rail installation

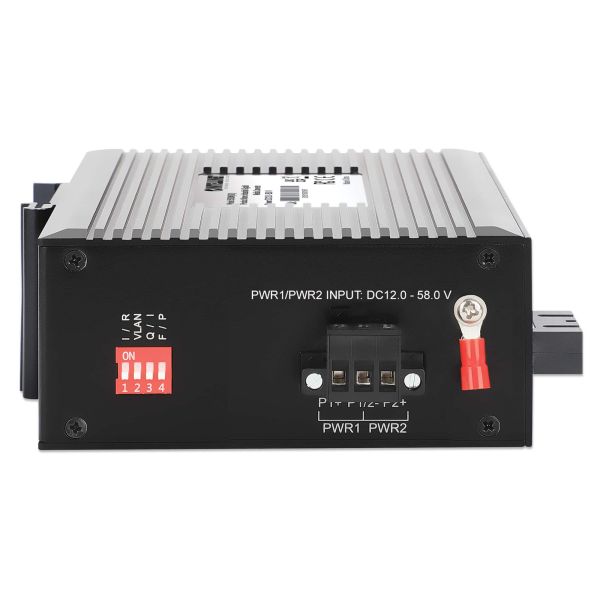

  • Two redundant DC inputs (12 - 58 V) with I/O terminal block
  • Requires industrial power supply (not included)
  • Port surge protection up to 6 kV
  • Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
  • Wavelength: 1310 nm
  • Supports full-duplex and half-duplex modes with autonegotiation
  • Wide operating temperature: -40 - 75℃ (-40 - 167°F)
  • Supports 8k MAC address entries with Auto-learning and Auto-aging
  • Buffer memory of 1 MByte
  • Supports jumbo frames up to 10 kBytes
  • Fanless design for silent operation
  • Fully NDAA-compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Converter input interface
10Base-T, 100Base-TX, 1000Base-TX
Converter output interface
1000Base-LX
Netwerkstandaard
IEEE 802.3, IEEE 802.3u, IEEE 802.3z
Jumbo Frames ondersteuning
Ja
Jumbo frames
10000
Auto-negotiation
Ja
Duplex systeem
Volledig, Half
Ondersteundende kabel types
Cat5e

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
1
Vezel-optische connector*
SC
Klemmenblokpoort
Ja

Prestatie

Maximaal bereik*
20000 m
Golflengte*
1310 nm
Draad modus structuur
Single-mode
Vezelkabel diameters ondersteund
8/125,8.3/125,8.7/125,10/125 µm
Tx vermogen (min)
-9 dBmW
Tx vermogen (max)
-3 dBmW
Buffergrootte
1000 KB

Design

Intern*
Nee
LED-indicatoren
Ja
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Internationale veiligheidscode (IP)
IP40
DIN rail bevestiging
Ja

Energie

Spanning
12 - 58 V

Gewicht en omvang

Breedte
104 mm
Diepte
143 mm
Hoogte
48 mm
Gewicht
600 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Verpakking

Breedte verpakking
160 mm
Diepte verpakking
185 mm
Hoogte verpakking
65 mm
Gewicht verpakking
620 g

Inhoud van de verpakking

Gebruikershandleiding
Ja

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
RoHS, Federal Communications Commission (FCC), NDAA, UKCA, CE

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
340 mm
(Buitenste) hoofdverpakking lengte
420 mm
(Buitenste) hoofdverpakking hoogte
350 mm
(Buitenste) hoofdverpakking brutogewicht
12,7 kg
Hoeveelheid per (buitenste) hoofdverpakking
20 stuk(s)

Overige specificaties

MAC-adrestabel
8192 entries
