Intellinet 508544 netwerk media converter 850 nm Multimode

Intellinet 508544, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, Volledig, Half, Cat5e, UTP/STP

Nog 12 beschikbaar

Fabrikant Intellinet
MPN 508544
EAN 0766623508544
€ 84,00 excl. BTW

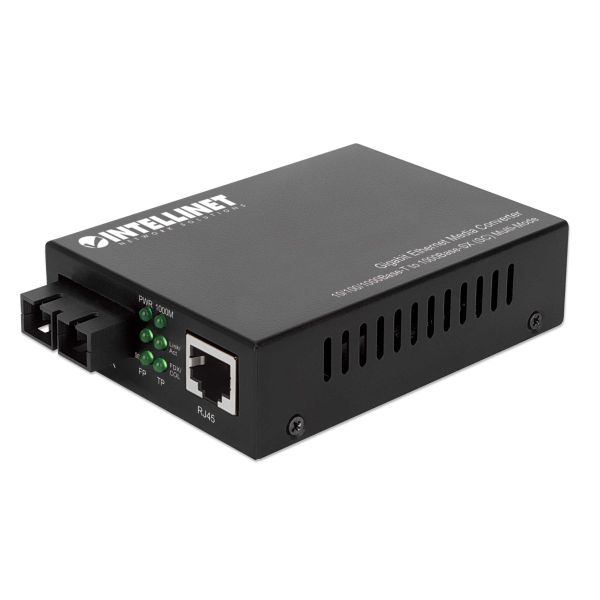

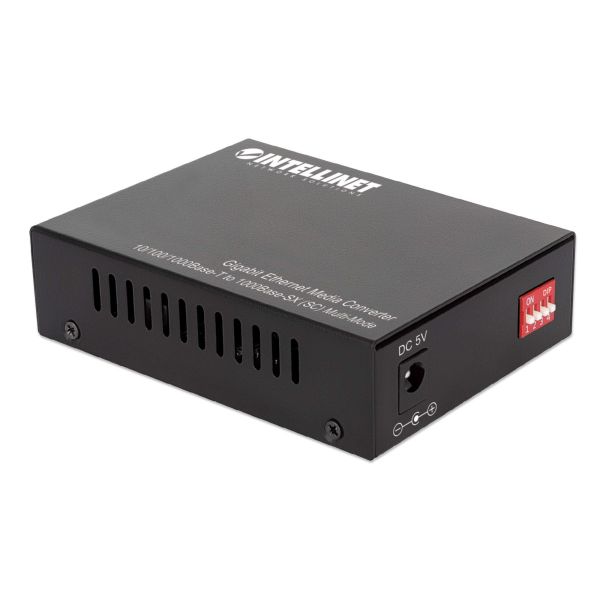

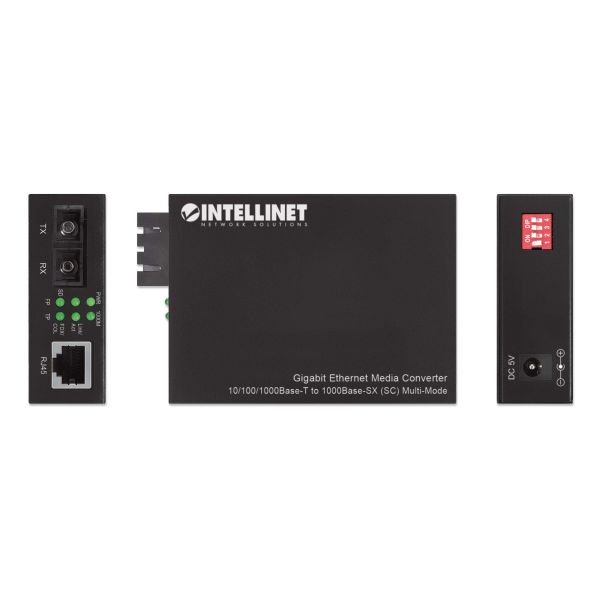

Intellinet 508544 netwerk media converter 850 nm Multimode

Media Converter with Gigabit Ethernet - Expand the size of an existing network
The Intellinet Network Solutions Gigabit Ethernet Media Converter offers the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. It offers maximum flexibility with 10/100/1000Base-TX and auto-negotiation. Now, migration or expansion of existing networks can be achieved with minimum cost and complexity.

More connectivity options
The converter is completely transparent to the network, so the network performs exactly the way it did before, only now it can support both copper and fiber media. The Gigabit Ethernet Media Converter provides fiber connectivity to Ethernet segments, allowing for even greater networking expansion between extended workgroups. It also provides building-to-building connectivity without the cost and disruption associated with installing additional routers.

Distance extension between networking devices
Connecting the converter to fiber segments further extends distances between network nodes, offering increased spatial and distance options for networks where none existed before.

Greater cabling flexibility
Network managers can install fiber cabling anywhere within a network without changing the arrangement of their copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several Gigabit Ethernet Media Converters can be simultaneously installed into a 19" rackmountable chassis (available from Intellinet Network Solutions), providing much-needed flexibility for networks.
  • One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
  • One 1000Base-SX fiber SC multi-mode port supporting a maximum distance of 550 m (1,800 ft.)
  • Supports full-duplex and half-duplex modes with autonegotiation
  • Link Fault Passthrough (LFP) function for easier network maintenance
  • QoS (Quality of Service) bandwidth management
  • IEEE 802.1Q VLAN tagging compliant
  • Cut-through and store-and-forward switching architecture
  • Wavelength: 850 nm
  • Supports jumbo frames up to 9.2 kBytes

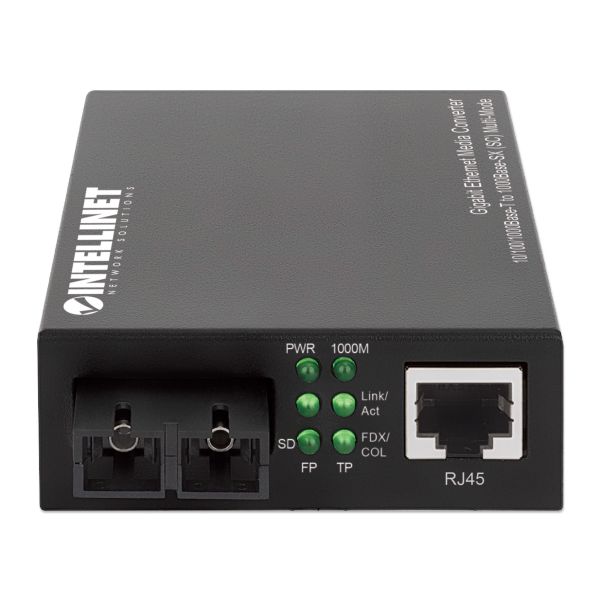

  • Status LEDs for power and Link/TX on both ports

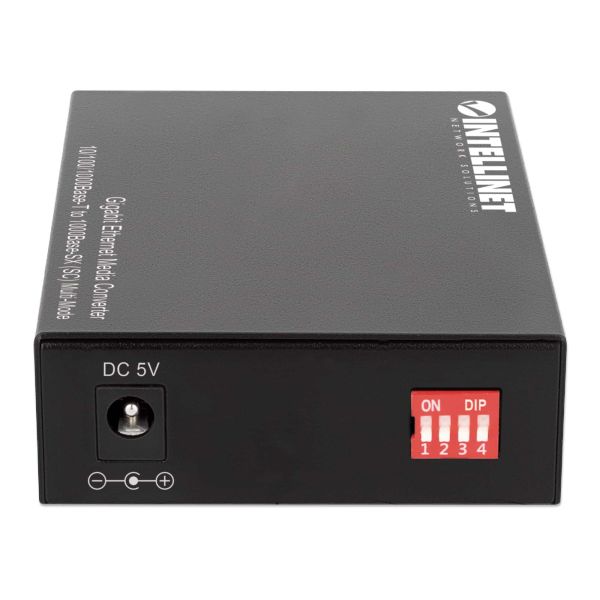

  • External 5 VDC power adapter
  • Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356
  • Fully NDAA-compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Netwerkstandaard
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Jumbo Frames ondersteuning
Ja
Jumbo frames
9,2
VLAN=ondersteuning
Ja
Auto-negotiation
Ja
Duplex systeem
Volledig, Half
Ondersteundende kabel types
Cat5e
Ondersteunde netwerkprotocollen
UTP/STP
Link Fault Pass-through (LFP)
Ja
Quality of Service (QoS)
Ja

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Fibre channel-poorten
2
Vezel-optische connector*
SC

Prestatie

Maximaal bereik*
550 m
Golflengte*
850 nm
Draad modus structuur
Multimode
Vezelkabel diameters ondersteund
50/125,62.5/125 µm
Tx vermogen (min)
-9 dBmW

Prestatie

Tx vermogen (max)
-3 dBmW

Design

Intern*
Nee
LED-indicatoren
LAN, Link, Stroom, Signaalsterkte
Materiaal behuizing
Metaal
Certificering
FCC Class B, CE, RoHS, UKCA, NDAA

Energie

Externe adapter
Ja

Gewicht en omvang

Breedte
94 mm
Diepte
70 mm
Hoogte
26 mm

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Inhoud van de verpakking

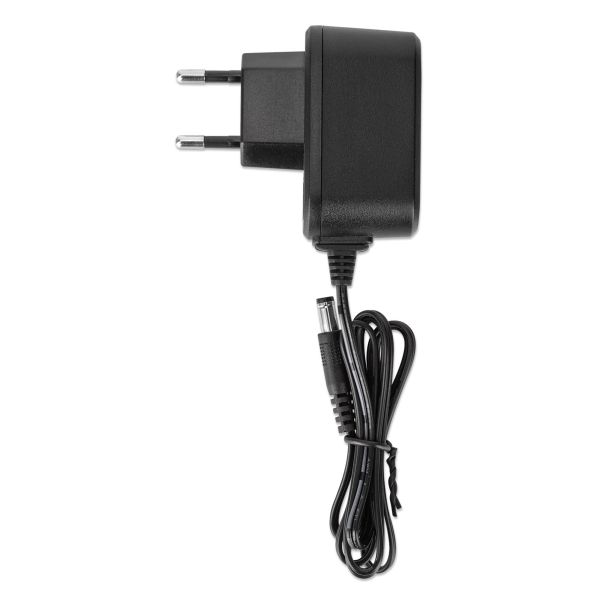

Inclusief AC-adapter
Ja
Gebruikershandleiding
Ja
Snelle installatiehandleiding
Ja

Technische details

Garantieperiode
3 jaar
