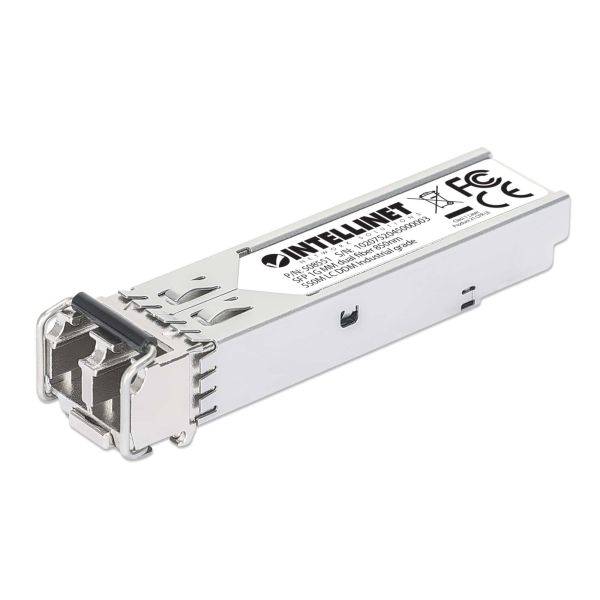

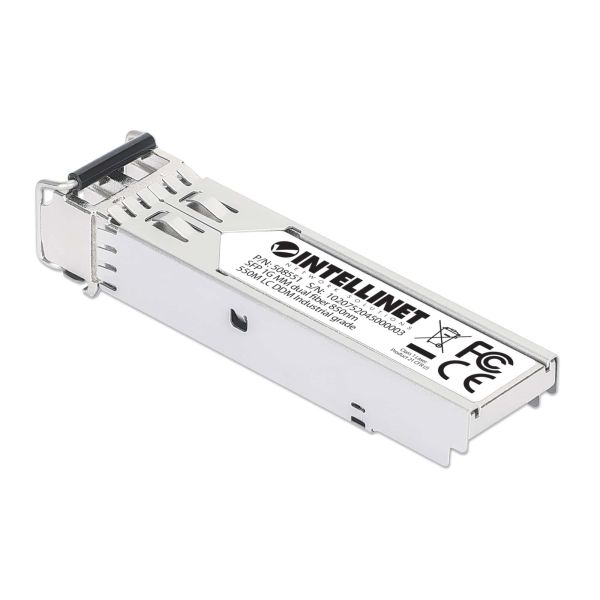

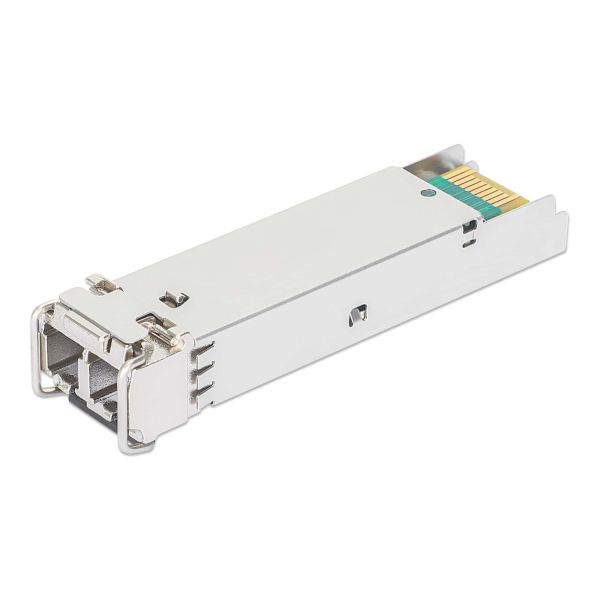

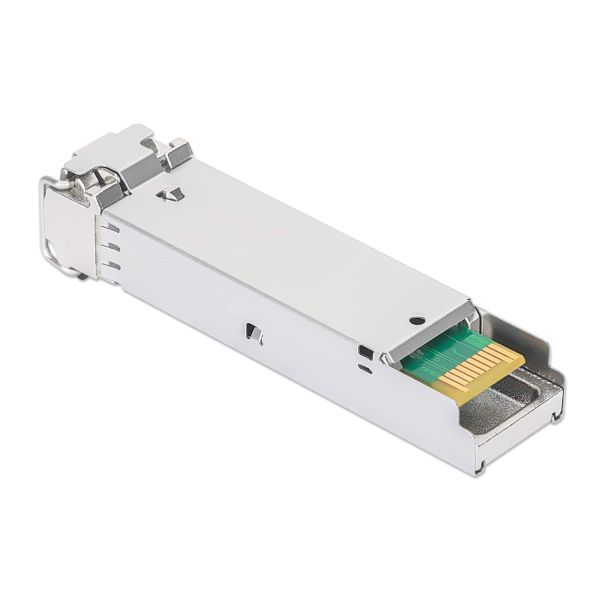

Intellinet 508551 netwerk transceiver module Vezel-optiek 1000 Mbit/s SFP 850 nm

Intellinet 508551, Vezel-optiek, 1000 Mbit/s, SFP, LC, 50/125,62.5/125 µm, SX

Ruim op voorraad

Fabrikant Intellinet
MPN 508551
EAN 0766623508551
€ 12,00 excl. BTW

Intellinet 508551 netwerk transceiver module Vezel-optiek 1000 Mbit/s SFP 850 nm

Industrial SFP Module — handles extreme temps, MSA compatible
The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this SFP module's metal housing reduces electromagnetic interference and increases its durability.

Small Size for High-Density Fiber Connections
The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections.

Multi-vendor Compatible
Compatibility in your network is everything, and this SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other Multi Source Agreement (MSA) compliant SFP enabled switch. It is designed, programmed and tested to work with compatible switches and routers from Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more.

Hot-pluggable
There's no need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy to make adjustments to your network that allow your business to keep pace with the changing demands of the market.

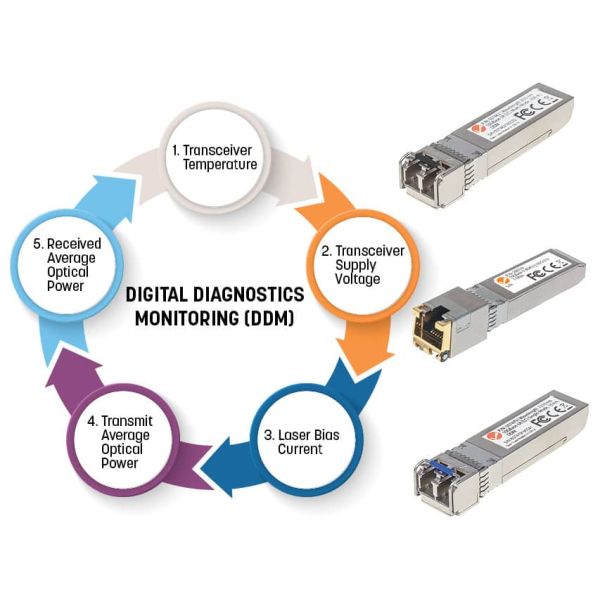

Digital Diagnostics Monitoring (DDM)
This transceiver supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). That gives the user the ability to monitor parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage, in real time.

Equipped even for challenging environment conditions
With its rugged, protective metal housing, the transceiver operates reliably, even in extreme temperatures from -40 - 75℃ (-40 - 167°F).
  • MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specs)
  • Data transfer rate: 1000 Mbps
  • One 1000Base-SX multi-mode fiber LC duplex port
  • Distance support: up to 550 m
  • Wavelength: 850 nm
  • Equivalent to the Cisco GLC-SX-MM transceiver
  • SFP standard form factor
  • Supports digital diagnostics monitoring (DDM)
  • Wide operating temperature: -40 - 75°C (-40 - 167°F)
  • Low EMI due to fully metallic housing
  • Supports hot-plugging
  • Fully NDAA-compliant

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Prestatie

SFP transceiver type*
Vezel-optiek
Maximale overdrachtssnelheid van gegevens*
1000 Mbit/s
Soort aansluiting*
SFP
Multi-mode glasvezelkabel (MMF) ondersteund
Ja
Vezel-optische connector
LC
Vezelkabel diameters ondersteund
50/125,62.5/125 µm
SFP-zendernorm
SX
Maximaal bereik
550 m
Golflengte
850 nm
Tx vermogen (min)
-9 dBmW
Tx vermogen (max)
-3 dBmW
Link budget
9 dB
Netwerkstandaard
IEEE 802.3z
Fiber ethernet cabling technologie
1000BASE
Duplex systeem
Volledig
Digital Diagnostics Monitoring (DDM)
Ja

Kenmerken

Kleur van het product
Zilver
Materiaal behuizing
Metaal
Hot-plug ondersteuning
Ja
Merkcompatibiliteit
MSA Compliant

Energie

Maximaal voltage
3,3 V
Stroomverbruik (typisch)
1 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-40 - 75 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent

Gewicht en omvang

Breedte
14 mm
Diepte
57 mm
Hoogte
12 mm
Gewicht
20 g

Verpakking

Aantal producten inbegrepen
1 stuk(s)
Breedte verpakking
56 mm
Diepte verpakking
120 mm
Hoogte verpakking
24 mm
Gewicht verpakking
50 g
Type verpakking
Doos

Technische details

Naleving van duurzaamheid
Ja
Duurzaamheidscertificaten
CE, Federal Communications Commission (FCC), NDAA, RoHS, UKCA

Logistieke gegevens

(Buitenste) hoofdverpakking breedte
200 mm
(Buitenste) hoofdverpakking lengte
310 mm
(Buitenste) hoofdverpakking hoogte
250 mm
(Buitenste) hoofdverpakking brutogewicht
2,6 kg
Hoeveelheid per (buitenste) hoofdverpakking
48 stuk(s)
