Intellinet 561624 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

Intellinet 561624, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

Ruim op voorraad

Fabrikant Intellinet
MPN 561624
EAN 0766623561624
€ 136,00 excl. BTW

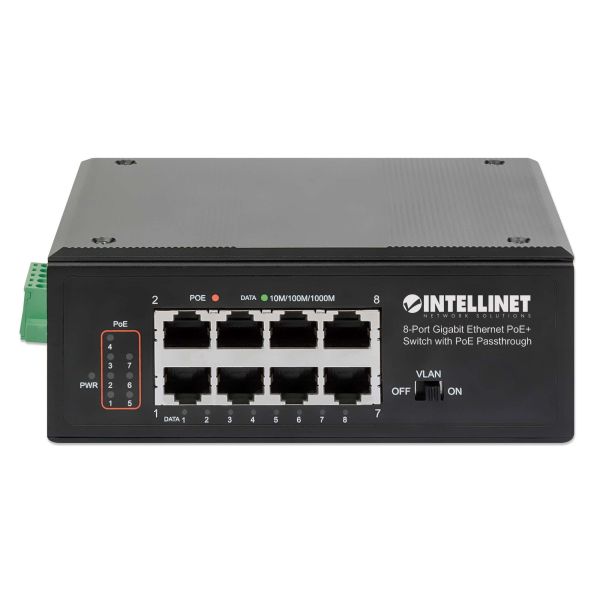

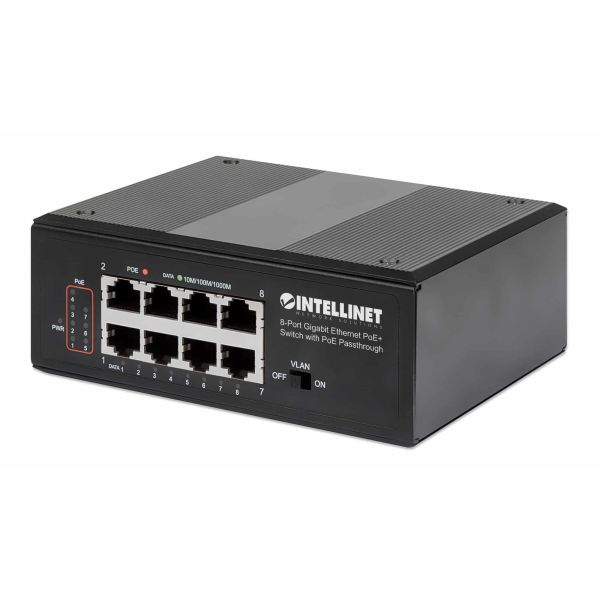

Intellinet 561624 netwerk-switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Zwart

The PoE Passthrough Industrial Switch — Save installation costs with PoE and get the most out each PoE connection
The Intellinet Network Solutions 8-Port Gigabit Ethernet PoE+ Switch with PoE Passthrough is designed to take power from a PoE switch or injector and pass both data and electrical power to PoE-compatible devices via network cables. Its PD port even supports power input from the latest Ultra PoE sources, easily handling up to 95 W. Equipped with eight Gigabit Ethernet ports, this switch can power up to seven wireless LAN access points and bridges, VoIP phones or IP video cameras and deliver network speeds up to 1,000 Mbps without an external power adapter.

Usable as a PoE extender
Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using the PoE Passthrough Switch this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls. This Switch can also accept power through a DC power adapter or an industrial power supply, providing up to 120 W to compatible devices.

Ideal for harsh industrial environments
With its rugged, protective metal housing, the switch operates reliably and quietly, even in extreme temperatures from -20 to 75℃ (-4 – 167°F). In combination with its DIN-rail mounting option and two safe redundant DC power inputs with plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.
  • Supports up to 95 W power input from a PoE injector or switch
  • Provides up to seven PoE network devices with power and data
  • Doubles the connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
  • Powered via PoE, DC power adapter or industrial power supply (no power supply is included with this product)
  • PoE power budget up to 120 watts (depending on the power supply used)
  • Saves installation costs by delivering data and power over existing network cables
  • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
  • Power output up to 30 watts per port
  • Grounding point to protect equipment from external electrical surges

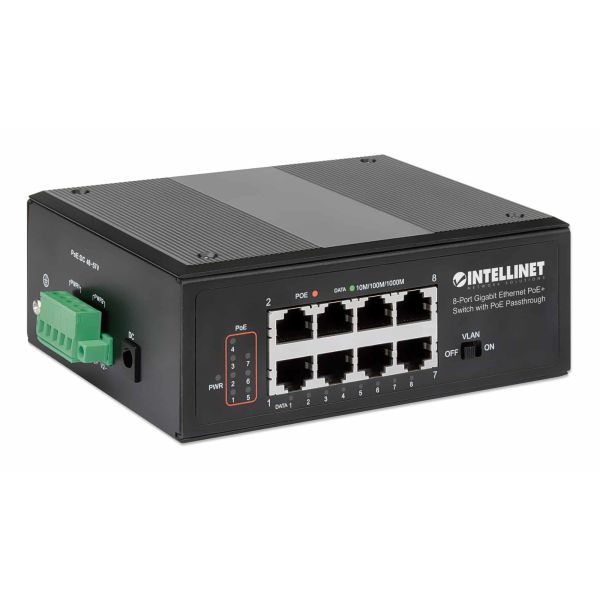

  • Two redundant DC inputs (48 – 57 V) with I/O terminal block
  • Port surge protection up to 6 kV
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (e.g., wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection

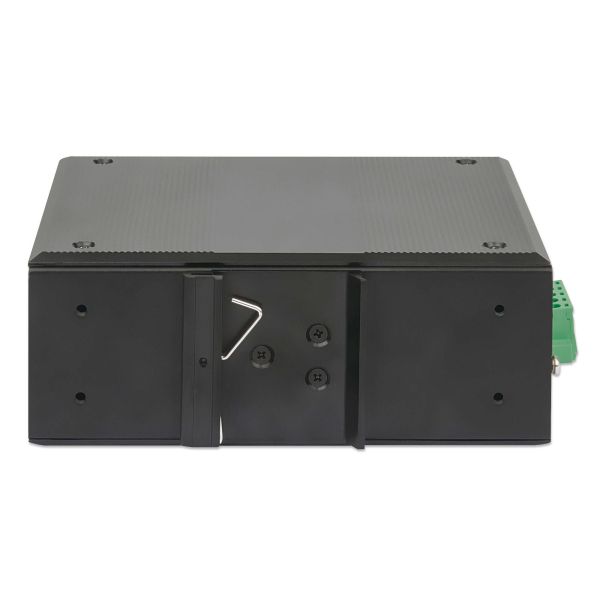

  • Option for DIN-rail installation
  • Rated for shock (IEC 60068-2-27), freefall (IEC 60068-2-32) and vibration (IEC 60068-2-6)
  • Wide operating temperature: -20 – 75℃ (-4 – 167°F)
  • On/off switch to toggle VLAN
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • 16 Gbps switch fabric
  • Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • Supports 4k MAC address entries with Auto-Learning and Auto-Aging
  • Supports jumbo frames up to 9.2 kBytes
  • Store and forward switching architecture
  • Supports IEEE 802.3x flow control on full duplex and backpressure on half duplex
  • LEDs for power, link/activity and PoE
  • Fanless design ideal for silent operation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Aantal basis-switching RJ-45 Ethernet-poorten*
8
Type basis-switching RJ-45 Ethernet-poorten*
Gigabit Ethernet (10/100/1000)

Netwerk

Netwerkstandaard*
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support*
Nee
Ondersteundende kabel types
Cat5e
Full duplex
Ja
Datastroombeheer
Ja
Auto MDI/MDI-X
Ja
Auto-sensing
Ja
MAC-adres zelflerende functie
Ja
MAC-adres zelfverouderende functie
Ja
VLAN=ondersteuning
Ja

Data-uitwisseling

Switchingcapaciteit*
16 Gbit/s
MAC-adrestabel*
4000 entries
Store-and-forward
Ja
Jumbo Frames ondersteuning
Ja
Jumbo frames
9200
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps

Design

Kleur van het product
Zwart
LED-indicatoren
Activiteit, Link, Power over Ethernet (PoE), Stroom
DIN rail bevestiging
Ja

Design

Certificering
FCC B, CE, RoHS

Prestatie

Fanloos
Ja

Energie

AC-ingangsspanning
100 - 240 V
AC-ingangsfrequentie
50 - 60 Hz
DC voltage input
48 - 57 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
Ja
Vermogen per poort Power over Ethernet (PoE)
30 W
Totaal Power over Ethernet (PoE)-budget
120 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-20 - 75 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 90 procent

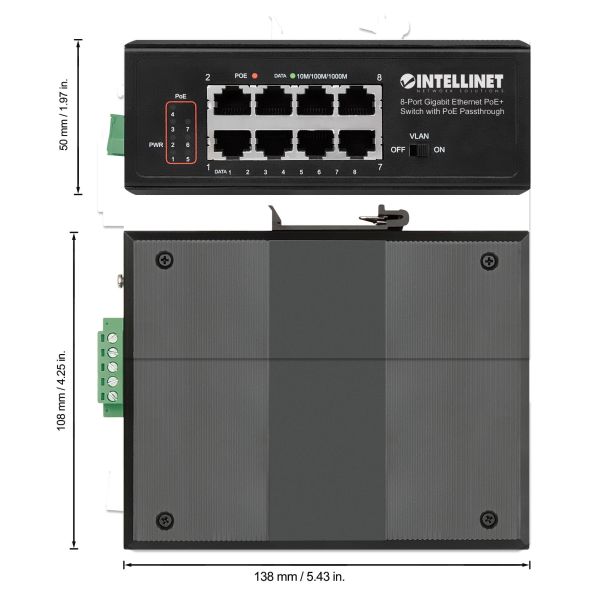

Gewicht en omvang

Breedte
138 mm
Diepte
108 mm
Hoogte
50 mm
Gewicht
673 g

Verpakking

Gebruiksaanwijzing
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
