Kingston Technology FURY KF556R36RBK8-256 geheugenmodule 256 GB 8 x 32 GB DDR5 5600 MHz ECC

Kingston Technology FURY KF556R36RBK8-256, 256 GB, 8 x 32 GB, DDR5, 5600 MHz, 288-pin DIMM, Zwart

Nog slechts 6 beschikbaar

Fabrikant Kingston
MPN KF556R36RBK8-256
EAN 0740617335552
€ 1.432,00 excl. BTW

Kingston Technology FURY KF556R36RBK8-256 geheugenmodule 256 GB 8 x 32 GB DDR5 5600 MHz ECC

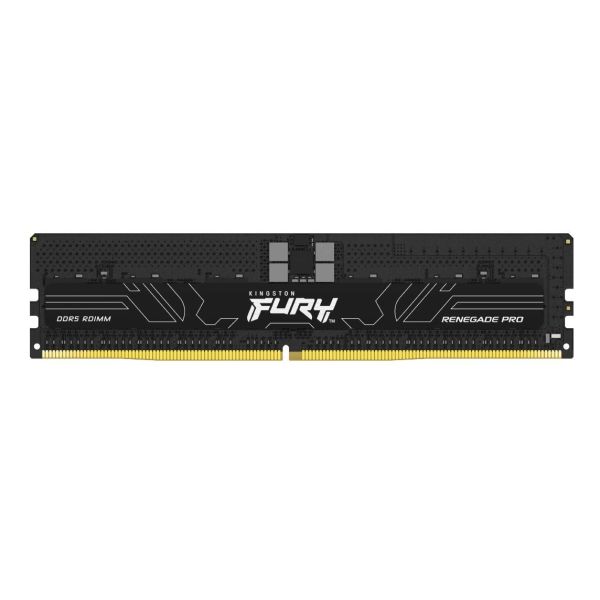

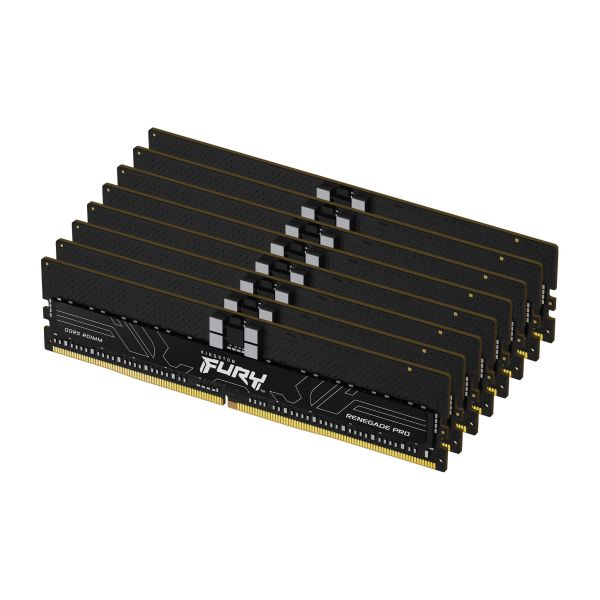

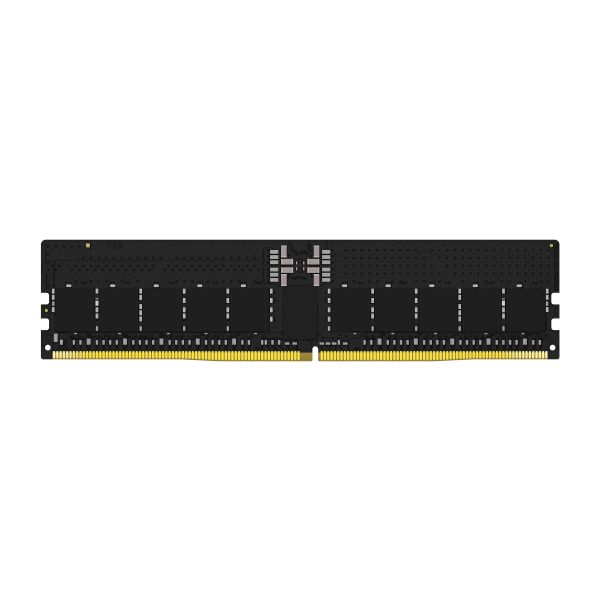

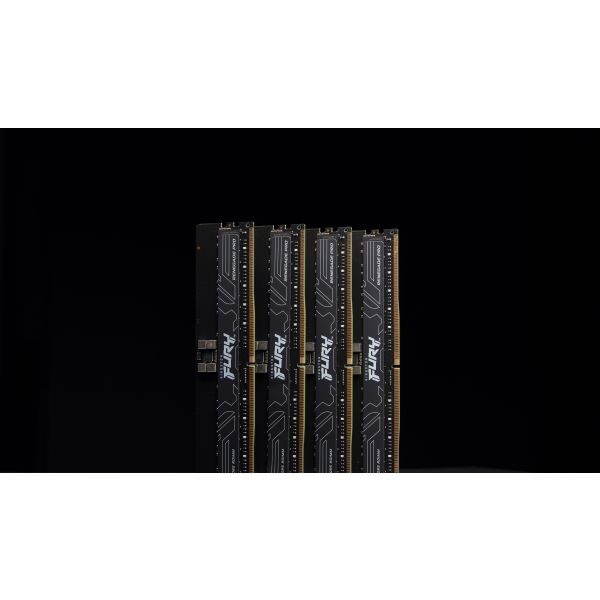

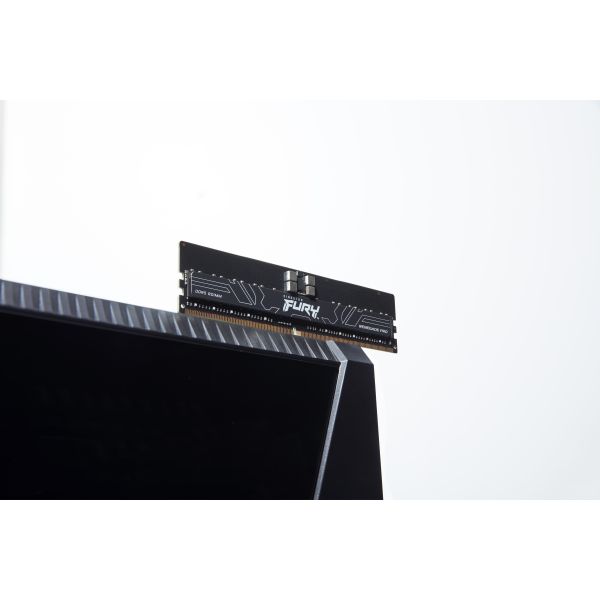

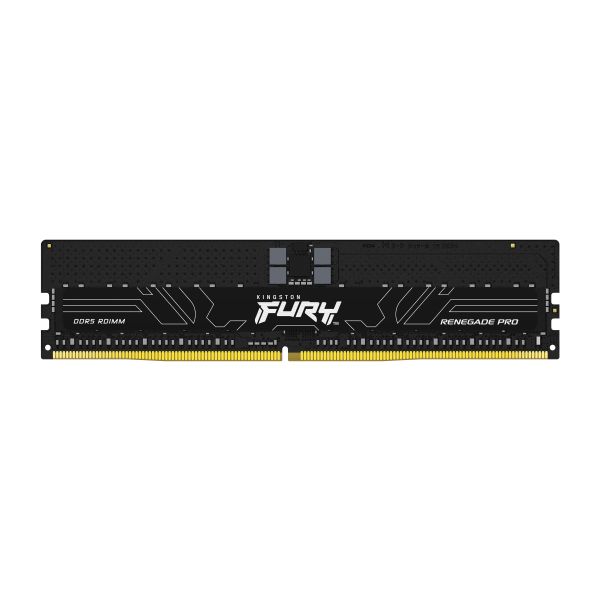

Kingston FURY KF556R36RBK8-256 is a kit of eight 4G x 80-bit (32GB) DDR5-5600 CL36 SDRAM (Synchronous DRAM) 1Rx4, ECC memory module, based on twenty 4G x 4-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is
256GB. Each module has been tested to run at DDR5-5600 at a low latency timing of 36-38-38 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • x80 ECC (x40, 2 independent I/O sub channels)
  • 32 internal banks
  • Hard/Soft Post Package Repair
  • Sideband access with I3C/I2C
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Registered (buffered)
On-Die ECC
Ja
CAS-latentie
36
Intern geheugen*
256 GB
Geheugenlayout (modules x formaat)*
8 x 32 GB
Intern geheugentype*
DDR5
Kloksnelheid geheugen*
5600 MHz
Component voor*
PC
Geheugen form factor*
288-pin DIMM
ECC*
Ja
Geheugen rangschikking
4
Geheugen voltage
1.25 V
Duur row cycle
48 ns
Duur vernieuwen row cycle
295 ns
Duur row active
32 ns
Rij pre oplaadtijd (TRP)
16

Kenmerken

Intel® Extreme Memory Profile (XMP)
Ja
Intel Extreme Memory Profile (XMP) versie
3.0
SPD profiel
Ja
Programmeerspanning (VPP)
1,8 V
Kleur van het product
Zwart
Type koeling
Koelplaat
JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 95 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS
Bevat geen
Halogeen

Gewicht en omvang

Hoogte
31,2 mm
