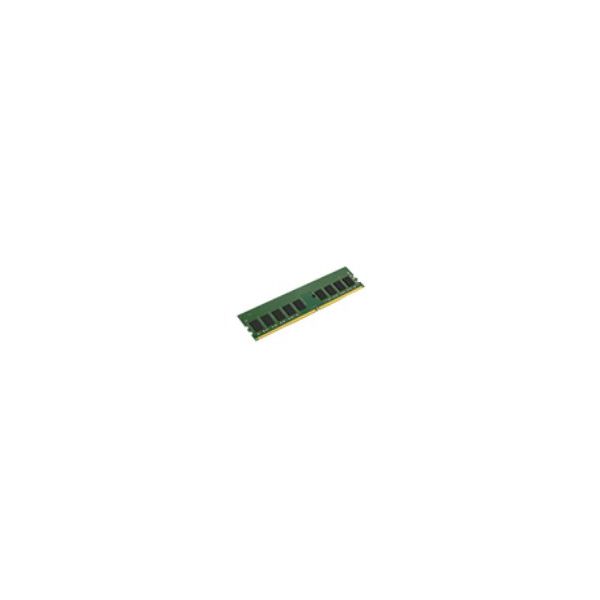

Kingston Technology KSM32ES8/8HD geheugenmodule 8 GB 1 x 8 GB DDR4 3200 MHz ECC

Kingston Technology KSM32ES8/8HD, 8 GB, 1 x 8 GB, DDR4, 3200 MHz, 288-pin DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KSM32ES8/8HD
EAN 0740617312218
€ 55,00 excl. BTW

Kingston Technology KSM32ES8/8HD geheugenmodule 8 GB 1 x 8 GB DDR4 3200 MHz ECC

Kingston's KSM32ES8/8HD is a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
  • Power Supply: VDD = 1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP = 2.5V Typical
  • VDDSPD = 2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Single-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • Temperature sensor with integrated SPD
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Registered (buffered)
CAS-latentie
22
Intern geheugen*
8 GB
Geheugenlayout (modules x formaat)*
1 x 8 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Component voor*
Pc/server
Geheugen form factor*
288-pin DIMM
ECC*
Ja
Geheugen rangschikking
1
Geheugen voltage
1.2 V
Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns
SPD profiel
Ja

Kenmerken

Land van herkomst
Taiwan
JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS
Bevat geen
Halogeen

Gewicht en omvang

Breedte
133,3 mm
Hoogte
31,2 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
