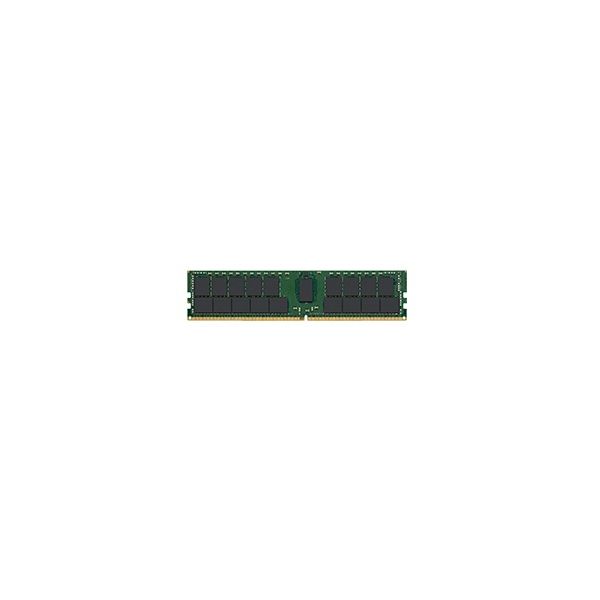

Kingston Technology KSM32RD4/64MFR geheugenmodule 64 GB 1 x 64 GB DDR4 3200 MHz ECC

Kingston Technology KSM32RD4/64MFR, 64 GB, 1 x 64 GB, DDR4, 3200 MHz, 288-pin DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KSM32RD4/64MFR
EAN 0740617328745
€ 214,00 excl. BTW

Kingston Technology KSM32RD4/64MFR geheugenmodule 64 GB 1 x 64 GB DDR4 3200 MHz ECC

Kingston Server Premier DDR4 3200MT/s 64GB ECC Registered DIMM DIMM / 64GB / DDR4 / non-ECC
  • 16 internal banks
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Registered (buffered)
CAS-latentie
22
Intern geheugen*
64 GB
Geheugenlayout (modules x formaat)*
1 x 64 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Component voor*
Pc/server
Geheugen form factor*
288-pin DIMM
ECC*
Ja
Geheugen rangschikking
2
Geheugen voltage
1.2 V
Module configuration
8192M x 72
Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns

Kenmerken

SPD profiel
Ja
Programmeerspanning (VPP)
2,5 V
Loden behuizing
Goud
JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Gewicht en omvang

Breedte
133,3 mm
Hoogte
18,8 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
