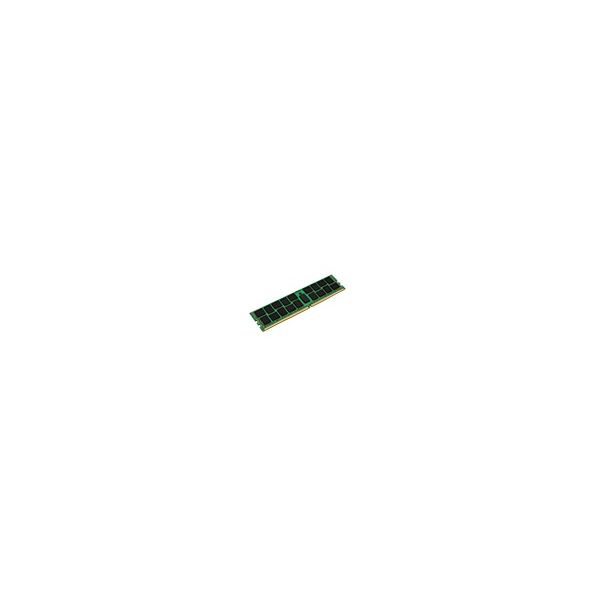

Kingston Technology KSM32RS8/8HDR geheugenmodule 8 GB 1 x 8 GB DDR4 3200 MHz ECC

Kingston Technology KSM32RS8/8HDR, 8 GB, 1 x 8 GB, DDR4, 3200 MHz, 288-pin DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KSM32RS8/8HDR
EAN 0740617308129
€ 37,00 excl. BTW

Kingston Technology KSM32RS8/8HDR geheugenmodule 8 GB 1 x 8 GB DDR4 3200 MHz ECC

Kingston's KSM32RS8/8HDR is a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
  • Power Supply: VDD = 1.2V
  • VDDQ = 1.2V
  • VPP = 2.5V
  • VDDSPD = 2.41V to 2.75V
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
  • the banks in the same or different bank group accesses are available
  • Data transfer rates: PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Registered (buffered)
CAS-latentie
22
Intern geheugen*
8 GB
Geheugenlayout (modules x formaat)*
1 x 8 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Component voor*
Pc/server
Geheugen form factor*
288-pin DIMM
ECC*
Ja
Geheugen rangschikking
1
Geheugen voltage
1.2 V
Module configuration
1024M x 72

Kenmerken

Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns
Programmeerspanning (VPP)
2,5 V
Land van herkomst
Taiwan
JEDEC-standaard
Ja

Gewicht en omvang

Breedte
133,3 mm
Hoogte
31,2 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
