Kingston Technology KSM32SES8/16HC geheugenmodule 16 GB DDR4 3200 MHz ECC

Kingston Technology KSM32SES8/16HC, 16 GB, DDR4, 3200 MHz, 260-pin SO-DIMM

Ruim op voorraad

Fabrikant Kingston
MPN KSM32SES8/16HC
EAN 0740617325799
€ 61,00 excl. BTW

Kingston Technology KSM32SES8/16HC geheugenmodule 16 GB DDR4 3200 MHz ECC

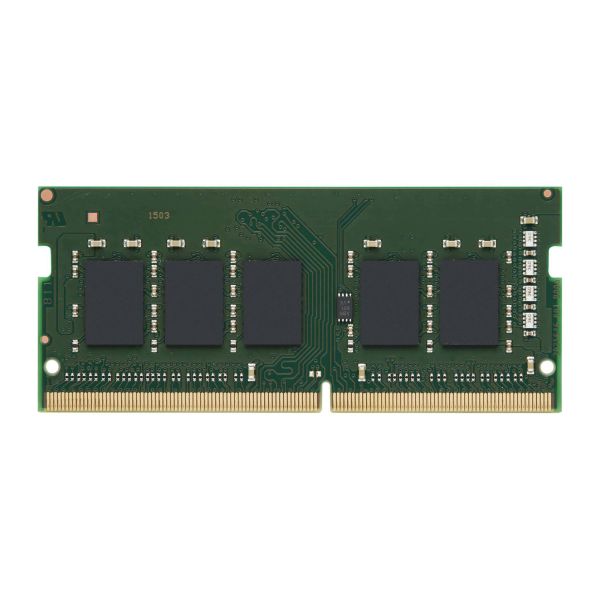

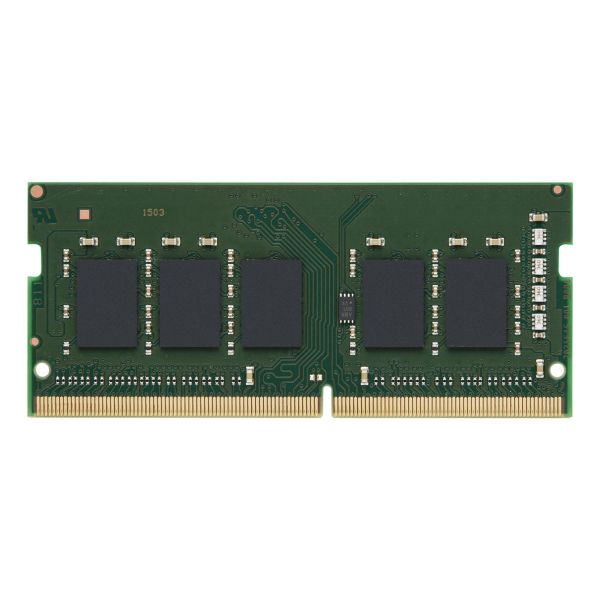

Kingston's KSM32SES8/16HC is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM uses gold contact fingers.

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
On-Die ECC
Ja
CAS-latentie
22
Intern geheugen*
16 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Geheugen form factor*
260-pin SO-DIMM
ECC*
Ja
Geheugen rangschikking
1
Geheugen voltage
1.2 V
Module configuration
2048M x 72
Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns

Kenmerken

SPD profiel
Ja
Programmeerspanning (VPP)
2,5 V
Backlight
Nee
JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Ondersteunde data-overdrachtsnelheden
PC4-3200, PC4-2933, PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
