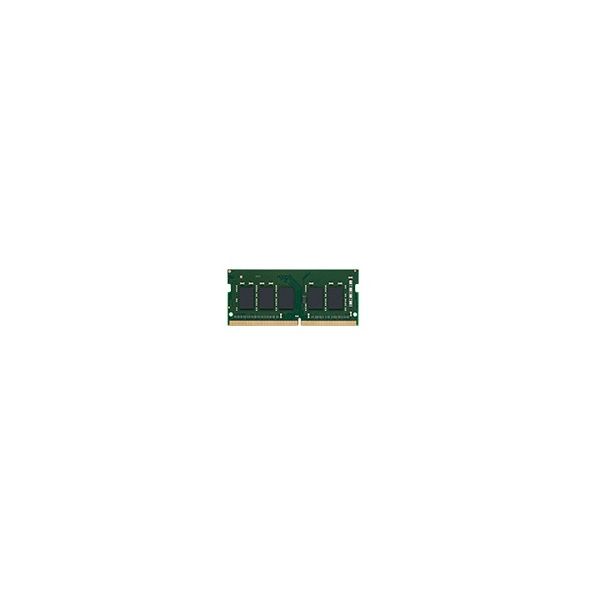

Kingston Technology KSM32SES8/16MF geheugenmodule 16 GB 1 x 16 GB DDR4 3200 MHz ECC

Kingston Technology KSM32SES8/16MF, 16 GB, 1 x 16 GB, DDR4, 3200 MHz, 260-pin SO-DIMM

Niet op voorraad

Fabrikant Kingston
MPN KSM32SES8/16MF
EAN 0740617328394
€ 54,00 excl. BTW

Kingston Technology KSM32SES8/16MF geheugenmodule 16 GB 1 x 16 GB DDR4 3200 MHz ECC

Kingston's KSM32SES8/16MF is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 260-pin SODIMM
uses gold contact fingers.
  • Functionality and operations comply with the DDR4 SDRAM datasheet
  • 16 internal banks
  • Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
  • Bi-Directional Differential Data Strobe
  • 8 bit pre-fetch
  • Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
  • Supports ECC error correction and detection
  • On-Die Termination (ODT)
  • Temperature sensor with integrated SPD
  • This product is in compliance with the RoHS directive
  • Per DRAM Addressability is supported
  • Internal Vref DQ level generation is available
  • Write CRC is supported at all speed grades
  • CA parity (Command/Address Parity) mode is supported

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

Type gebufferd geheugen
Unregistered (unbuffered)
CAS-latentie
22
Intern geheugen*
16 GB
Geheugenlayout (modules x formaat)*
1 x 16 GB
Intern geheugentype*
DDR4
Kloksnelheid geheugen*
3200 MHz
Component voor*
Notebook
Geheugen form factor*
260-pin SO-DIMM
ECC*
Ja
Geheugen rangschikking
1
Geheugen voltage
1.2 V
Module configuration
2048M x 72
Duur row cycle
45,75 ns
Duur vernieuwen row cycle
350 ns
Duur row active
32 ns
SPD profiel
Ja

Kenmerken

Programmeerspanning (VPP)
2,5 V
Loden behuizing
Goud
JEDEC-standaard
Ja

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 85 °C
Temperatuur bij opslag
-55 - 100 °C

Duurzaamheid

Duurzaamheidscertificaten
RoHS
Bevat geen
Halogeen

Gewicht en omvang

Breedte
69,6 mm
Diepte
3,7 mm
Hoogte
30 mm

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020
