Lenovo 01GR250 netwerkkaart Fiber 25000 Mbit/s
Lenovo 01GR250, Bedraad, PCI Express, Fiber, 25000 Mbit/s, Groen
Nog 2 beschikbaar (bel voor reservering)
Fabrikant
Lenovo
MPN
01GR250
EAN
0889488421626
€ 173,00
excl. BTW
€ 173,00
excl. BTW
excl. BTW
Lenovo 01GR250 netwerkkaart Fiber 25000 Mbit/s
ConnectX-4 from Mellanox is a family of high-performance and low-latency Ethernet and InfiniBand adapters. The ConnectX-4 Lx EN adapters are available in 40 Gb and 25 Gb Ethernet speeds and the ConnectX-4 Virtual Protocol Interconnect (VPI) adapters support either InfiniBand or Ethernet.
These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.

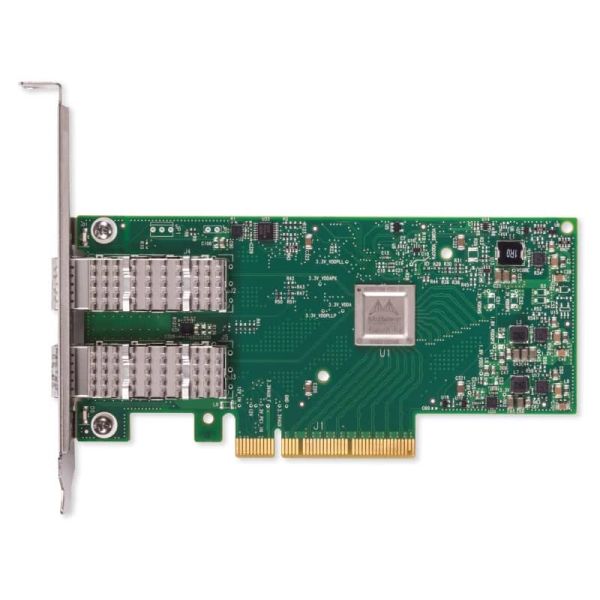

The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).
These adapters address virtualized infrastructure challenges, delivering best-in-class performance to various demanding markets and applications. Providing true hardware-based I/O isolation with unmatched scalability and efficiency, achieving the most cost-effective and flexible solution for Web 2.0, Cloud, data analytics, database, and storage platforms.
The following figure shows the Mellanox ConnectX-4 2x100GbE/EDR IB QSFP28 VPI Adapter (the standard heat sink has been removed in this photo).
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
Vezel-optische connector
SFP28
PCI versie
3.0
PCI Card form factor
Full-height (low-profile)
Netwerk
Maximale overdrachtssnelheid van gegevens*
25000 Mbit/s
Netwerkstandaard*
IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3az
Design
Component voor*
Server
Kleur van het product
Groen
Intern*
Nee
Design
Veiligheid
CB, cTUVus, CE
Certificering
CE, FCC, VCCI, ICES, RCM
Minimale systeemeisen
Compatibele besturingssystemen
Microsoft Windows Server 2012 (no SR-IOV support)
Microsoft Windows Server 2012 R2
Microsoft Windows Server 2016
Red Hat Enterprise Linux 6 Server x64 Edition, U7
Red Hat Enterprise Linux 7, U2
SUSE LINUX Enterprise Server 11 for AMD64/EM64T, SP4**
SUSE LINUX Enterprise Server 12, SP1**
VMware ESXi 5.5, U3*
VMware ESXi 6.0, U2*
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Duurzaamheid
Duurzaamheidscertificaten
RoHS
Verpakking
Aantal
1
Logistieke gegevens
Code geharmoniseerd systeem (HS)
85176990
