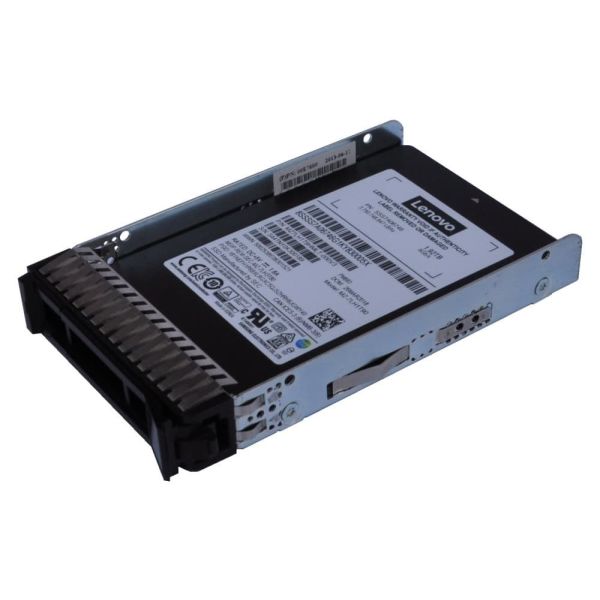

Lenovo 4XB7A10197 internal solid state drive 2.5" 960 GB SATA III

Lenovo 4XB7A10197, 960 GB, 2.5", 550 MB/s, 6 Gbit/s

Niet op voorraad

Fabrikant Lenovo
MPN 4XB7A10197
EAN 0889488468997
€ 724,00 excl. BTW

Lenovo 4XB7A10197 internal solid state drive 2.5" 960 GB SATA III

The Lenovo ThinkSystem PM883 Entry SATA 6Gb solid-state drives (SSDs) in capacities ranging from 240 GB to 7.86 TB are general-purpose SSDs based on the Samsung PM883 platform. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

This product guide provides essential presales information to understand the PM883 Entry SATA SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
  • Low cost, read-intensive SSD from Samsung
  • 2.5-inch industry standard form factor with hot-swap tray
  • 6 Gbps SATA interface
  • Advanced ECC Engine and End-to-End Data Protection
  • Samsung 32 layer V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND
  • Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
  • Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T)
  • Dynamic Thermal Guard Protection protects the SSD from overheating by automatically controlling the speed of the CPU relative to its core temperature

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Kenmerken

SSD-vormfactor*
2.5"
SSD capaciteit*
960 GB
Interface*
SATA III
NVMe*
Nee
Component voor*
Server/werkplaats
Overdrachtssnelheid
6 Gbit/s
Leessnelheid
550 MB/s
Schrijfsnelheid
520 MB/s
Random read (4KB)
98000 IOPS
Random write (4KB)
25000 IOPS
Leeslatentie
120 µs
Schrijflatentie
40 µs
Hot-swap
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Mean time between failures (MTBF)
2000000 uur
Endurance rating (voor 5 jaar)
0,8 GB/dag
TBW-classificatie
1366
Certificering
UL, TUV, FCC, CE Mark, C-Tick Mark, BSMI, KCC

Energie

Stroomverbruik (lezen)
2,3 W
Stroomverbruik (schrijven)
3,1 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 85 procent
Trillingen, in bedrijf
2,17 G
Schokbestendigheid
1500 G
Maximale hoogte, in gebruik
3050 m

Gewicht en omvang

Breedte
133 mm
Diepte
174 mm
Hoogte
63 mm
Gewicht
433 g

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84717070
