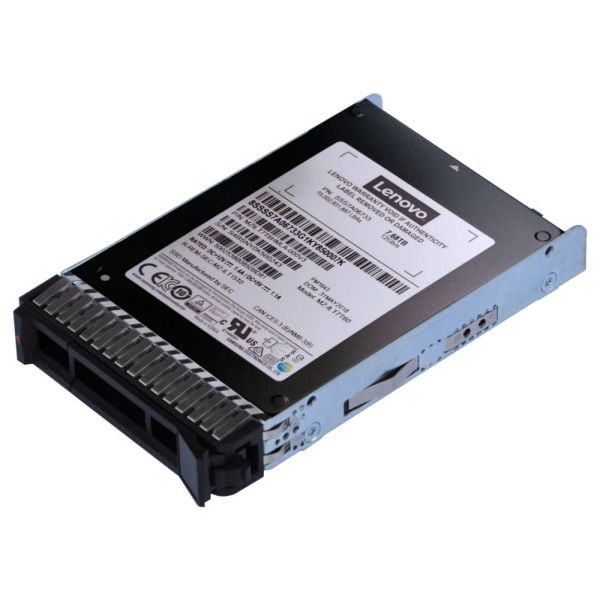

Lenovo 4XB7A17055 internal solid state drive 2.5" 7680 GB SAS V-NAND TLC
Lenovo 4XB7A17055, 7680 GB, 2.5", 12 Gbit/s
Niet op voorraad
Fabrikant
Lenovo
MPN
4XB7A17055
EAN
0889488510924
€ 4.485,00
excl. BTW
€ 4.485,00
excl. BTW
excl. BTW
Lenovo 4XB7A17055 internal solid state drive 2.5" 7680 GB SAS V-NAND TLC
The PM1643a Entry SAS 12Gb solid-state drives (SSDs) from Lenovo provide high-performance, reliable storage solutions for high-capacity enterprise applications. Designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.
This product guide provides essential presales information to understand the PM1643a Entry SAS 12Gb SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
This product guide provides essential presales information to understand the PM1643a Entry SAS 12Gb SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Kenmerken
SSD-vormfactor*
2.5"
SSD capaciteit*
7680 GB
Interface*
SAS
Type geheugen*
V-NAND TLC
NVMe*
Nee
Component voor*
Server/werkplaats
Hardware encryptie*
Nee
Overdrachtssnelheid
12 Gbit/s
Random read (4KB)
230000 IOPS
Random write (4KB)
90000 IOPS
Willekeurige latentie - lezen (tot)
130 µs
Willekeurige latentie - schrijven (tot)
45 µs
Leeslatentie
240 µs
Schrijflatentie
220 µs
S.M.A.R.T. support
Ja
Hot-swap
Ja
Uncorrectable Bit Error Rate (UBER)
< 1 per 10^17 bits read
Mean time between failures (MTBF)
2000000 uur
Certificering
UL
TUV
FCC
IC
CB
CE Mark
C-Tick Mark
BSMI (Taiwan)
KCC (Korea EMI)
VCCI
Energie
Stroomverbruik (lezen)
9 W
Stroomverbruik (schrijven)
12 W
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 70 °C
Temperatuur bij opslag
-40 - 85 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Trillingen bij opslag
20 G
Schokbestendigheid (buiten gebruik)
1500 G
Maximale hoogte, in gebruik
4572 m
Technische details
Duurzaamheidscertificaten
RoHS
Gewicht en omvang
Breedte
70 mm
Diepte
100 mm
Hoogte
15 mm
Gewicht
158 g
