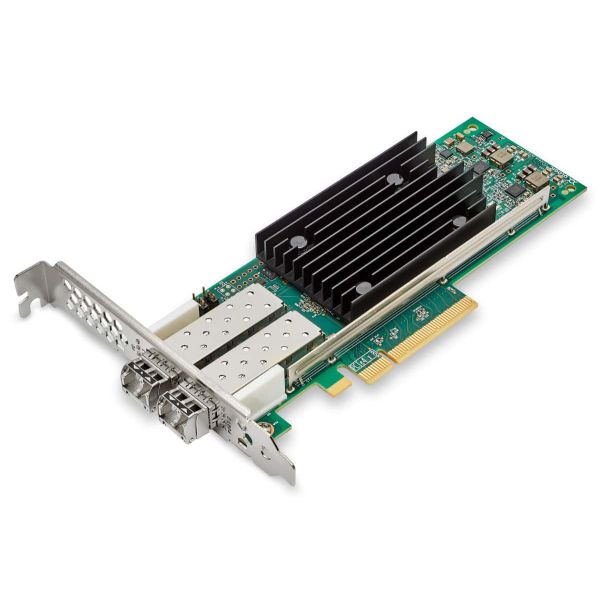

Lenovo 4XC7A08276 netwerkkaart Intern Fiber 32000 Mbit/s
Lenovo 4XC7A08276, Intern, Bedraad, PCI Express, Fiber, 32000 Mbit/s
Ruim op voorraad
Fabrikant
Lenovo
MPN
4XC7A08276
EAN
0889488511594
€ 1.529,00
excl. BTW
€ 1.529,00
excl. BTW
excl. BTW
Lenovo 4XC7A08276 netwerkkaart Intern Fiber 32000 Mbit/s
The QLogic 2770 Series 32 Gb Fibre Channel (FC) Host Bus Adapters (HBAs) are Generation 6 (Gen 6) FC adapters for Lenovo ThinkSystem servers. These adapters offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. With performance of up to 1 million I/O operations per second (IOPS) per port, these adapters can be used to support all-flash arrays (AFAs) -- Fibre Channel storage systems comprised completely of high-speed solid-state drives.
This product guide describes the QLogic 2770 Series HBAs for Lenovo servers and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
This product guide describes the QLogic 2770 Series HBAs for Lenovo servers and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Poorten & interfaces
Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
Vezel-optische connector
SFP+
PCI versie
4.0
Netwerk
Maximale overdrachtssnelheid van gegevens*
32000 Mbit/s
Full duplex
Ja
Design
Component voor*
Server
Intern*
Ja
Antenne
Nee
Design
Certificering
UL 60950-1
CSA C22.2
TUV EN60950-1
TUV IEC 60950-1
CB Certified
FCC Rules, CFR Title 47, Part 15, Subpart Class A
Industry Canada, ICES-003: Class A
EN55032
EN55024
EN61000-3-2
EN61000-3-3
Japan VCCI: Class A
New Zealand and Australia AS/NZS: Class A
Korea KC-RRA Class A
Taiwan BSMI CNS 13438
Minimale systeemeisen
Ondersteunt Windows
Ja
Ondersteunt Linux
Ja
Eisen aan de omgeving
Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-20 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
10 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent
Gewicht en omvang
Breedte
168 mm
Diepte
69 mm
