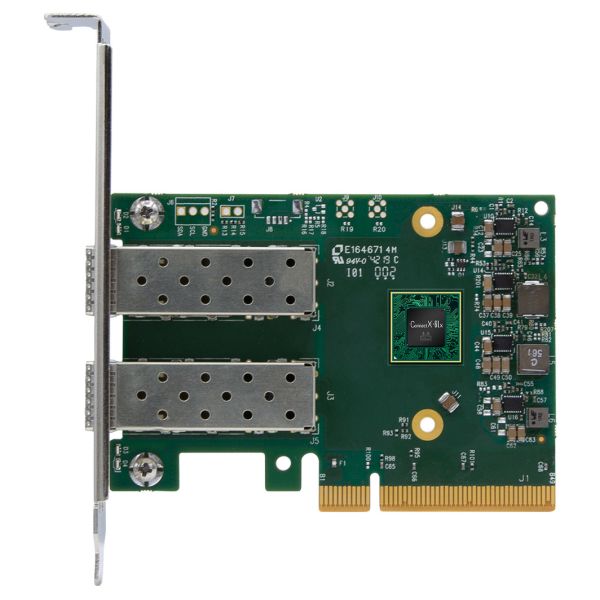

Lenovo 4XC7A62580 netwerkkaart Intern Fiber

Lenovo 4XC7A62580, Intern, Bedraad, PCI Express, Fiber

Ruim op voorraad

Fabrikant Lenovo
MPN 4XC7A62580
EAN 0889488542611
€ 437,00 excl. BTW

Lenovo 4XC7A62580 netwerkkaart Intern Fiber

The ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 Ethernet Adapters are high performance 25Gb Ethernet network adapters that offer multiple network offloads including RoCE v2, NVMe over Ethernet and Open vSwitch.

This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ConnectX-6 Lx adapters and consider their use in IT solutions.
  • High performance with line speed message rate of 75Mpps
  • Advanced RoCE
  • ASAP2 - Accelerated Switching and Packet Processing
  • Overlay tunneling accelerations
  • Stateful rule checking for connection tracking
  • Hardware Root-of-Trust and secure firmware update
  • Best-in-class PTP performance
  • ODCC compatible

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Connectiviteitstechnologie*
Bedraad
Hostinterface*
PCI Express
Interface*
Fiber
Fibre channel-poorten
2
Vezel-optische connector
SFP

Netwerk

Netwerkstandaard*
IEEE 1588v2, IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3by

Design

Component voor*
Server/werkplaats
Intern*
Ja

Design

Antenne
Nee
Certificering
CB / cTUVus / CE CE / FCC / VCCI / ICES / RCM RoHS

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
0 - 90 procent

Gewicht en omvang

Breedte
96 mm
Hoogte
69 mm
