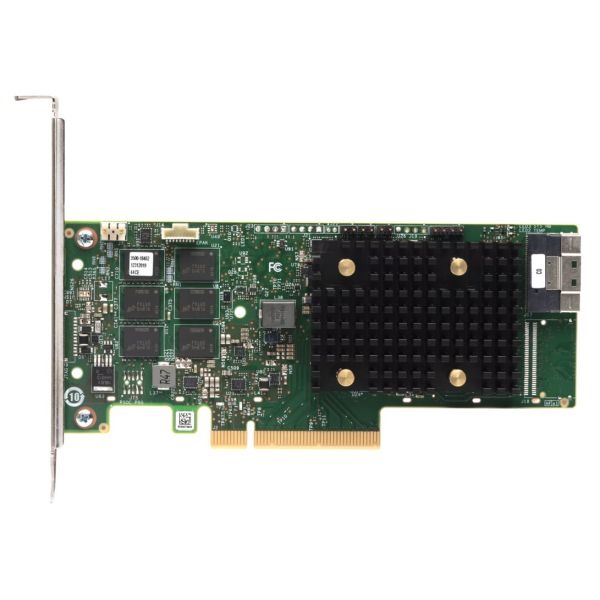

Lenovo 4Y37A09728 RAID controller PCI Express x8 4.0 12 Gbit/s

Lenovo 4Y37A09728, SAS, SATA, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, JBOD, 12 Gbit/s, Broadcom SAS3908

Ruim op voorraad

Fabrikant Lenovo
MPN 4Y37A09728
EAN 0889488526505
€ 1.325,00
€ 1.043,00 excl. BTW

Lenovo 4Y37A09728 RAID controller PCI Express x8 4.0 12 Gbit/s

The RAID 940 Series adapters all have a PCIe 4.0 host interface which doubles the bandwidth between the server and the adapter, compared to the previous generation RAID 930 adapters. This improves overall performance of the storage subsystem by supporting up to 3 million IOPS (JBOD mode) and up to 3 million IOPS in RAID (random reads).

RAID on Chip-based controllers such as the RAID 940 adapters have a dedicated processor that offloads all RAID functions from the server's CPU. With hardware acceleration for RAID 5 and 6 operations plus up to 8 GB dedicated memory for caching, the 940-8i, 16i and 32i offer the ultimate performance for ThinkSystem servers.
  • PCIe 4.0 x8 host interface, also compatible with a PCIe 3.0 host interface
  • 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9560 adapter family
  • 4GB or 8GB of integrated flash-backed cache
  • RAID 940-8i supports up to eight internal SAS or SATA drives

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Ondersteunde opslagstationinterfaces*
SAS, SATA
Hostinterface*
PCI Express x8
PCI Express slots versie
4.0
Interne SAS-poorten
8
Aantal Internal SATA ports
8

Prestatie

Soorten RAID*
0, 1, 5, 6, 10, 50, 60, JBOD

Prestatie

Overdrachtssnelheid
12 Gbit/s
Chipset
Broadcom SAS3908
JBOD-functie
Ja
S.M.A.R.T. support
Ja

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733080
