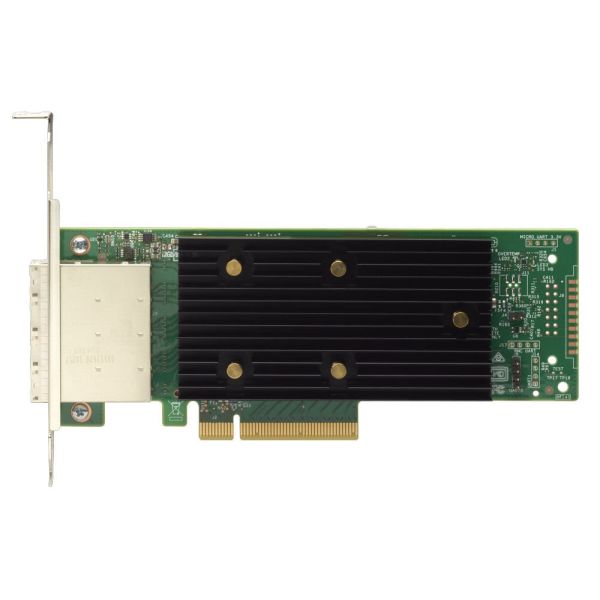

Lenovo 7Y37A01091 interfacekaart/-adapter Intern SAS, SATA

Lenovo 7Y37A01091, PCIe, SAS, SATA, Volledige hoogte / Laag profiel, PCIe 3.0, Zwart, Groen, FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe...

Nog 1 beschikbaar (bel voor reservering)

Fabrikant Lenovo
MPN 7Y37A01091
EAN 0889488433520
€ 719,00 excl. BTW

Lenovo 7Y37A01091 interfacekaart/-adapter Intern SAS, SATA

The Lenovo ThinkSystem 430-8e and 430-16e SAS/SATA 12Gb HBAs are high performance host bus adapters for external storage connectivity in ThinkSystem servers. The 430-8e provides two x4 external mini-SAS HD connectors with eight lanes of 12 Gbps SAS. The 430-16e provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
  • PCIe 3.0 x8 host interface
  • 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
  • PCI low profile, half-length form factor
  • External 12 Gbps SAS/SATA ports:
  • 430-8e: 8 SAS/SATA ports
  • 430-16e: 16 SAS/SATA ports
  • Connectivity for up to 512 external SAS or SATA drives (future planned support for an upper limit of 1024 drives)
  • Up to 12 Gbps throughput per port
  • Supports 12, 6, or 3 Gbps SAS speeds
  • Supports 6 or 3 Gbps SATA speeds
  • External x4 HD Mini-SAS connectors (SFF-8644):
  • 430-8e: 2 external connectors
  • 430-16e: 4 external connectors
  • Support for external storage systems and tape backup units
  • High performance architecture with very deep queue depth
  • Advanced power management support
  • Support for SSP, SMP, STP, and SATA protocols
  • End-to-End CRC with Advanced Error Reporting
  • Spread Spectrum Clocking for EMI reductions
  • Supports 512e, 512n and 4K (when available) formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Poorten & interfaces

Hostinterface*
PCIe
Output interface*
SAS, SATA
Uitbreidingskaart vormfactor
Volledige hoogte / Laag profiel
Uitbreidingskaartstandaard
PCIe 3.0
Externe mini-SAS-HD-poorten
4

Design

Intern*
Ja
Kleur van het product
Zwart, Groen
Certificering
FCC Part 15 Class A Australia/New Zealand (AS/NZS CISPR 22) Canada (ICES-003 Class B) Europe (EN55022/EN55024) Japan (VCCI V-3) Korea (RRA no 2013-24 & 25) WEEE EN/IEC/UL 60950 Taiwan (CNS 13438) USA (FCC 47 CFR part 15 Subpart B class B)

Kenmerken

Data transfer snelheid (max)
12000 Gbit/s

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
10 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve vochtigheid in bedrijf (V-V)
20 - 90 procent
Luchtvochtigheid bij opslag
5 - 95 procent

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
84733020

Overige specificaties

Compatibele besturingssystemen
Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 12 with XEN VMware vSphere ESXi 6.0 VMware vSphere ESXi 6.5
Compatibiliteit
SR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
