LevelOne GVT-0500 netwerk media converter 10000 Mbit/s Zwart

LevelOne GVT-0500, 10000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, 10,100,1000,10000 Mbit/s, 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T, 10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 10GBASE-ZR

Ruim op voorraad

Fabrikant LevelOne
MPN GVT-0500
EAN 4015867209301
€ 186,00 excl. BTW

LevelOne GVT-0500 netwerk media converter 10000 Mbit/s Zwart

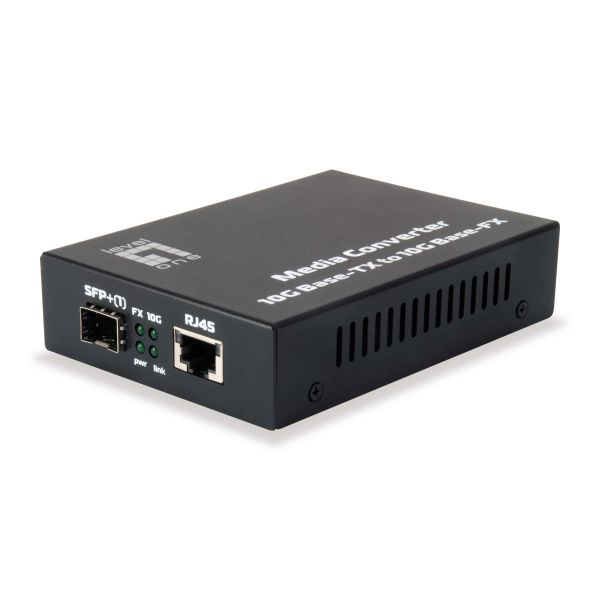

The LevelOne GVT-0500 is a powerful 10 Gigabit media converter which, in combination with the optional available LevelOne SFP+ modules, converts optical into electrical signals, supports optical signal equilibrium amplification, clock extraction and optical regeneration. It uses WDM (DWDM/CWDM) technology, which can transmit data signals over a long distance in a single fiber in simple or multiple ways. On existing network infrastructure, the GVT-0500 can quickly improve transmission capacity and expand bandwidth. At the same time, it is a cost-efficent and highly cost-effective solution for managing and operating the system. It is also optimized for ease of operation and maintenance.
  • 9K jumbo frames to increase data transfer rates
  • Supports low-time lag transmission
  • Supports ITU-T DWDM/CWDM wavelengths
  • Hot-swappable
  • Quick and easy installation

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Maximale overdrachtssnelheid van gegevens*
10000 Mbit/s
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000,10000 Mbit/s
Koperen ethernetbekabelingstechnologie
10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T
Fiber ethernet cabling technologie
10GBASE-ER, 10GBASE-LR, 10GBASE-SR, 10GBASE-ZR
Jumbo Frames ondersteuning
Ja
Jumbo frames
9000
Auto MDI/MDI-X
Ja
Duplex systeem
Volledig
Ondersteundende kabel types
Cat6a

Poorten & interfaces

Connectiviteitstechnologie
Bedraad
Aantal Ethernet LAN (RJ-45)-poorten
1
Vezel-optische connector*
SFP

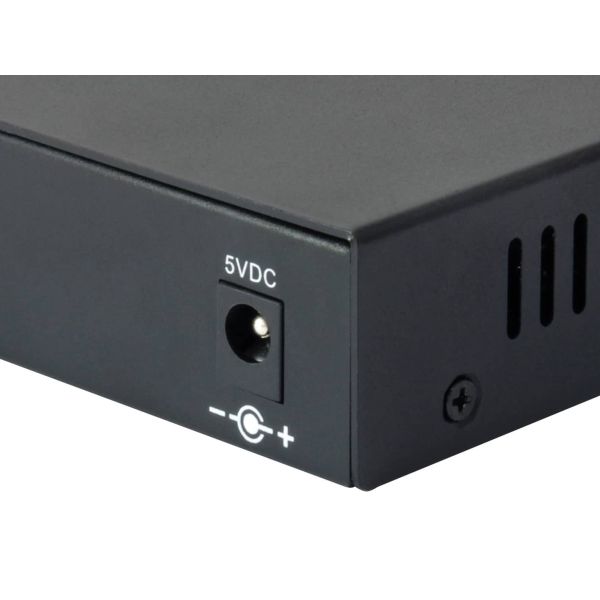

Aansluiting voor netstroomadapter
Ja

Prestatie

Maximaal bereik*
100 m
Mean time between failures (MTBF)
50000 uur

Design

Intern*
Nee
LED-indicatoren
Activiteit, Link, Stroom
Kleur van het product
Zwart
Materiaal behuizing
Metaal
Land van herkomst
China
Certificering
CE

Energie

Ingangsspanning
5 V

Energie

Stroom
3 A
Stroomverbruik (typisch)
1,2 W

Beheerfuncties

Hot-swap
Ja

Gewicht en omvang

Breedte
115 mm
Diepte
85 mm
Hoogte
25 mm
Gewicht
300 g

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
-10 - 55 °C
Temperatuur bij opslag
-40 - 75 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 90 procent

Verpakking

Breedte verpakking
230 mm
Diepte verpakking
150 mm
Hoogte verpakking
85 mm
Gewicht verpakking
700 g
Type verpakking
Doos

Inhoud van de verpakking

Inclusief AC-adapter
Ja
Snelle installatiehandleiding
Ja

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85176990
