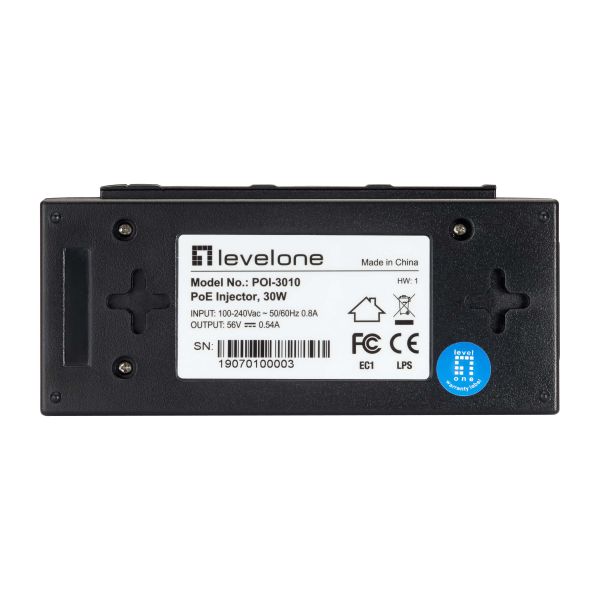

LevelOne POI-3010 PoE adapter & injector Fast Ethernet, Gigabit Ethernet 52 V

LevelOne POI-3010, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Zwart, 100 m, Power over Ethernet (PoE), Stroom

Ruim op voorraad

Fabrikant LevelOne
MPN POI-3010
EAN 4015867221815
€ 75,00 excl. BTW

LevelOne POI-3010 PoE adapter & injector Fast Ethernet, Gigabit Ethernet 52 V

The LevelOne POI-3010 is a single port, high power PoE PSE solution for remote PoE PD devices. Generating up to 30W , the POI-3010 supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backward compatible to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11ac access points. For all the function featured in POI-3010, people can get the benefit of flexible network installation at lower cost and less downtime. It also provides a high-bandwidth pipe to the network.
  • IEEE 802.3af/at PoE PSE with 30W power budget
  • Auto-detection and protection of non-standard PoE devices
  • Unique interlocking feature for easy installation
  • 10/100/1000Mbps wire speed transmission and reception

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Netwerk

Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN, data-overdrachtsnelheden
10,100,1000 Mbit/s
Power over Ethernet (PoE)
Ja
Netwerkstandaard
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u

Kenmerken

Kleur van het product
Zwart
Ophangsysteem voor aan de muur
Ja
Plug and play
Ja
Spanningsbeveiliging
Ja
Maximale afstand
100 m
LED-indicatoren
Power over Ethernet (PoE), Stroom
Pintoewijzing & polariteit
1/2 (+), 3/6 (-)
Certificering
FCC Part 15, CE

Poorten & interfaces

Aantal Ethernet LAN (RJ-45)-poorten
2

Energie

Stroom via Ethernet (PoE)*
52 V
AC-adapter ingangsspanning
100 - 240 V
AC-adapterfrequentie
50/60 Hz
Stroom
0.8 A
Output current
0,6 A
Vermogensverbruik (max)
30 W
Vermogen per poort Power over Ethernet (PoE)
30 W

Eisen aan de omgeving

Bedrijfstemperatuur (T-T)
0 - 45 °C
Relatieve vochtigheid in bedrijf (V-V)
5 - 95 procent
Temperatuur bij opslag
0 - 70 °C
Luchtvochtigheid bij opslag
5 - 95 procent

Gewicht en omvang

Breedte
143 mm
Diepte
51 mm
Hoogte
38 mm
Gewicht
350 g

Verpakking

Breedte verpakking
210 mm
Diepte verpakking
125 mm
Hoogte verpakking
55 mm
Gewicht verpakking
400 g
Type verpakking
Doos

Inhoud van de verpakking

Aantal producten inbegrepen
1 stuk(s)
Inclusief netsnoer
Ja
Snelle installatiehandleiding
Ja

Technische details

Duurzaamheidscertificaten
RoHS

Logistieke gegevens

Code geharmoniseerd systeem (HS)
85044095
