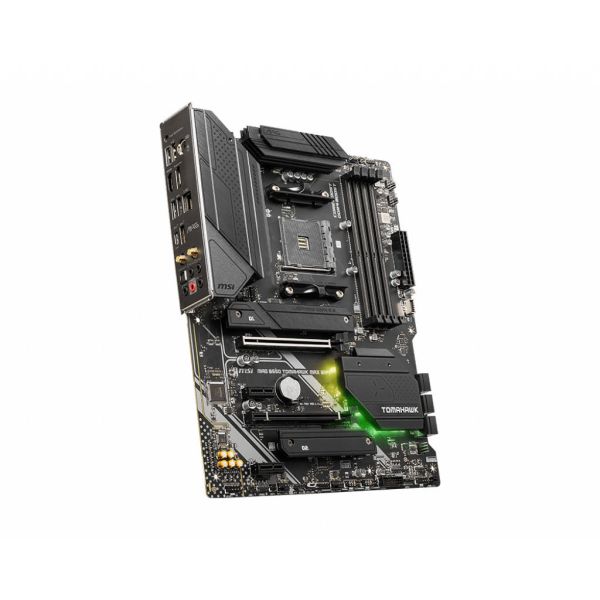

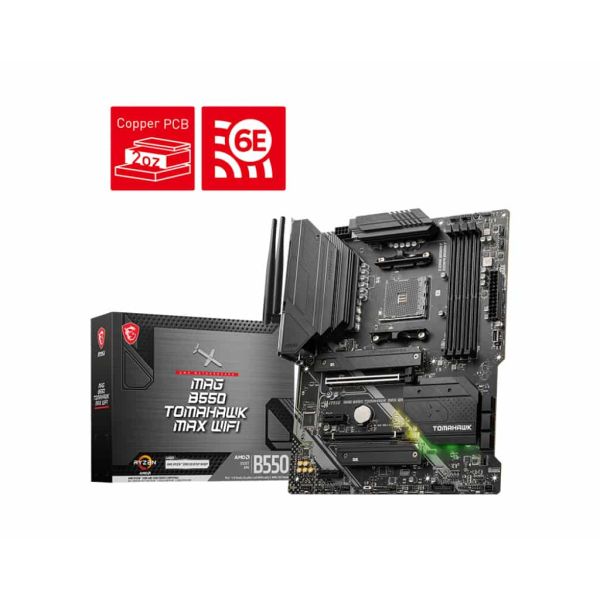

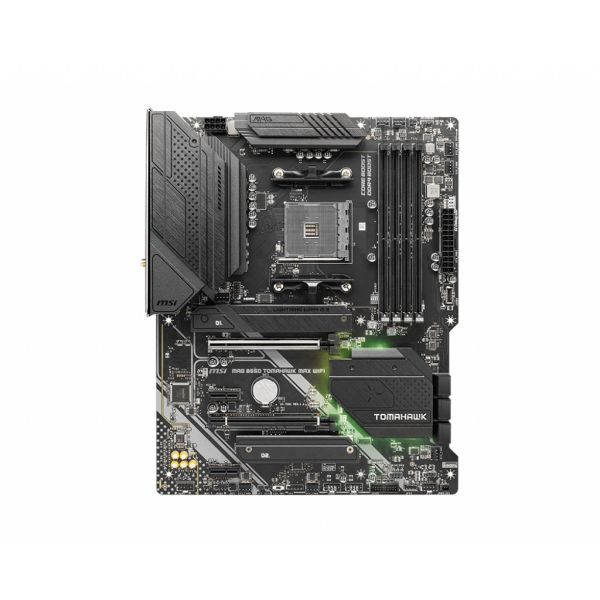

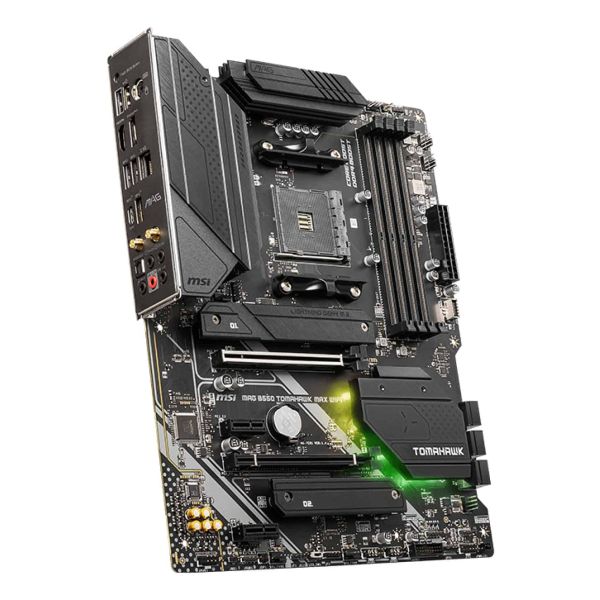

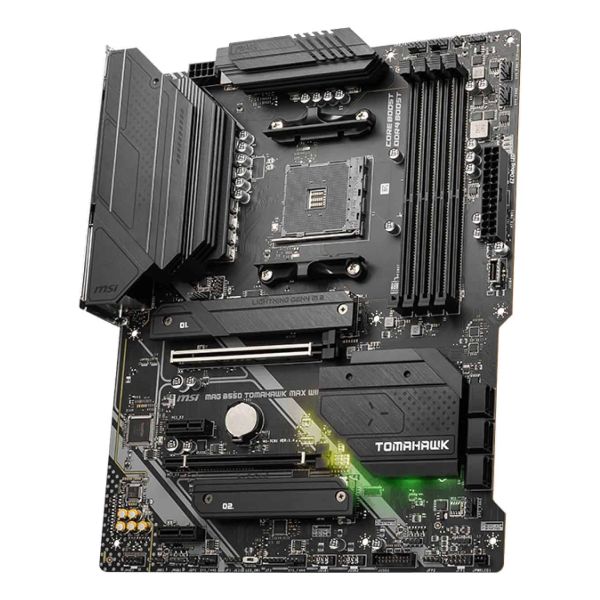

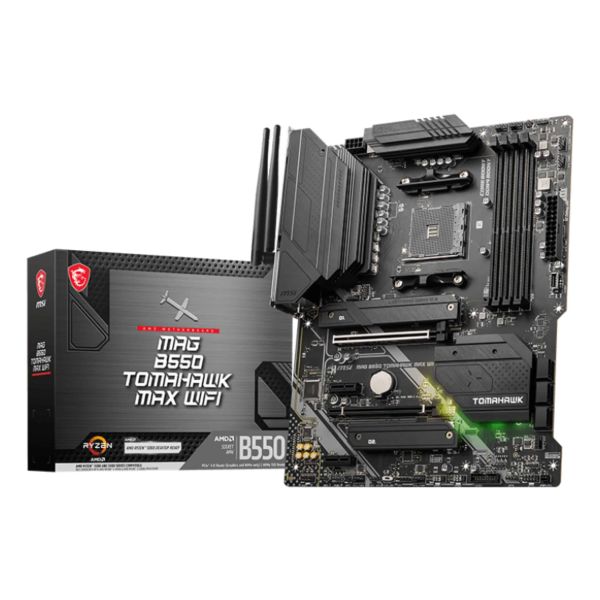

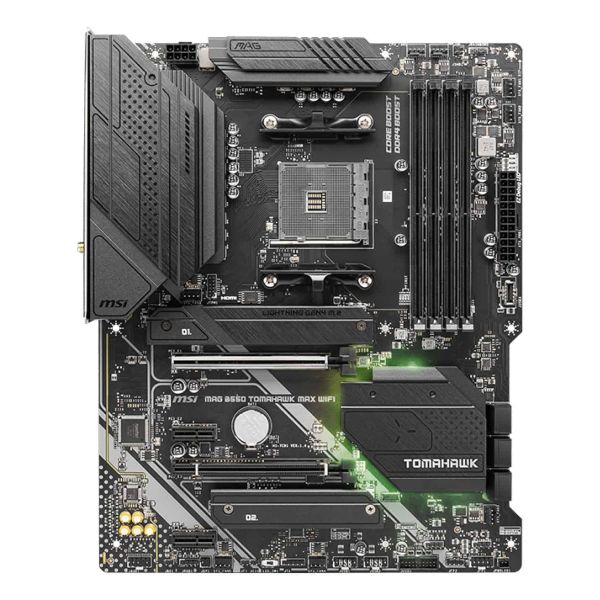

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX

MSI MAG B550 TOMAHAWK MAX WIFI, AMD, Socket AM4, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd..., DDR4-SDRAM, 128 GB, DIMM

Ruim op voorraad

Fabrikant MSI
MPN 7C94-043R
EAN 4719072957957
€ 154,00 excl. BTW

MSI MAG B550 TOMAHAWK MAX WIFI AMD B550 Socket AM4 ATX

Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

  • Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
  • Supports DDR4 Memory, up to 5100+(OC) MHz
  • Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
  • Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience
  • Enhanced Power Design: 10+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost
  • 2.5G LAN with LAN Manager and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Pre-installed I/O Shield: Better EMI protection and more convenience for installation
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM4
Compatibele processors*
3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9
Max. aantal SMP-processoren
1

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC
Ja
Non-ECC
Ja
Supported memory clock speeds
1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4533,4600,4733,5100 MHz
Maximum intern geheugen*
128 GB
Niet gebufferd geheugen
Ja

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
SATA III
Soorten RAID
0, 1, 10

Grafisch

Maximum geheugen grafische adapter
16000 MB
Ondersteuning voor parallel processing*
2-Way CrossFireX
Maximum resolutie
4096 x 2160 Pixels

Interne aansluitingen

USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
6
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
Aansluitingen voor behuizingsventilatoren
6
Chassis intrusion aansluiting
Ja
TPM connector
Ja
12V vermogen-connector
Ja
RGB LED-aansluitrail
Ja

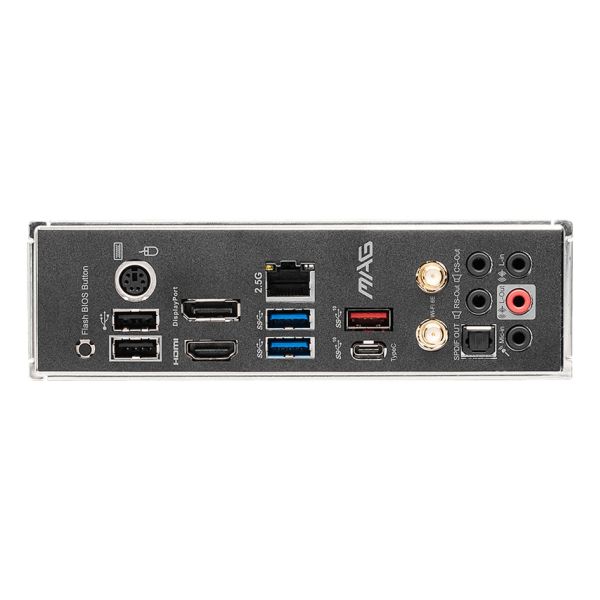

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2

Aansluitingen achterzijde

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1
Aantal Ethernet LAN (RJ-45)-poorten*
2
PS/2 poort(en)
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1
S/PDIF-uitgang
Ja
Digitale audio, optische uitgang
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
LAN controller
Realtek RTL8111H, Realtek RTL8125B
Wifi*
Nee

Kenmerken

Chipset moederbord*
AMD B550
Audiochip
Realtek ALC1200
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
AMD
Aantal montagegaten
9
Ondersteunt Windows
Windows 10 x64

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
2

BIOS

Clear CMOS jumper
Ja

Gewicht en omvang

Breedte
305 mm
Diepte
244 mm

Inhoud van de verpakking

Meegeleverde kabels
SATA
Meegeleverde drivers
Ja
