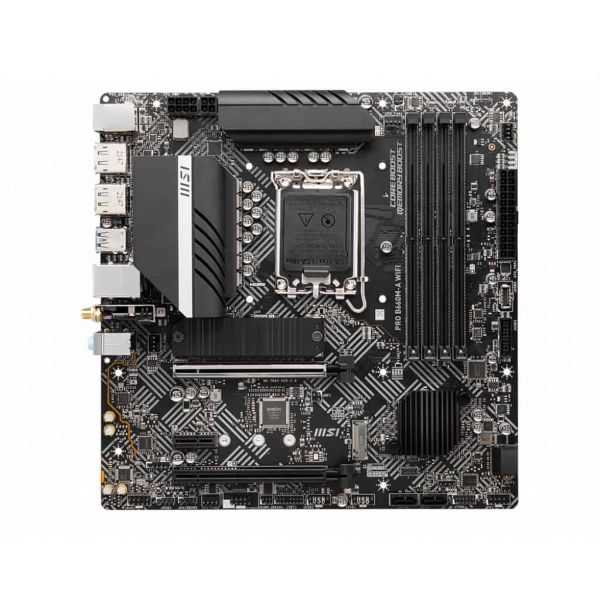

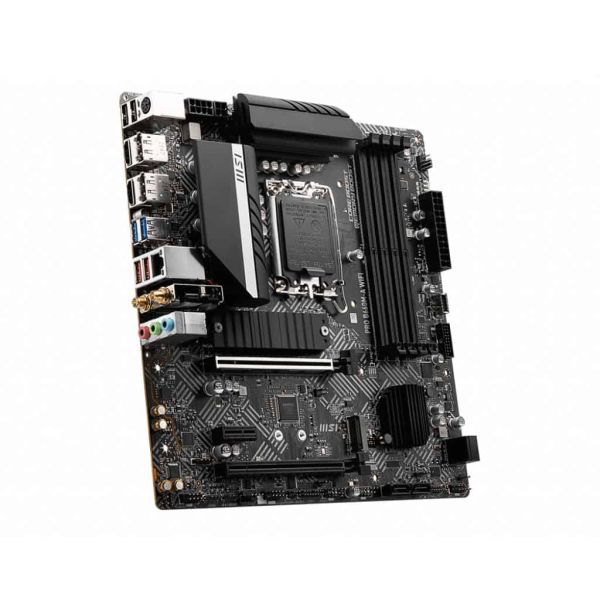

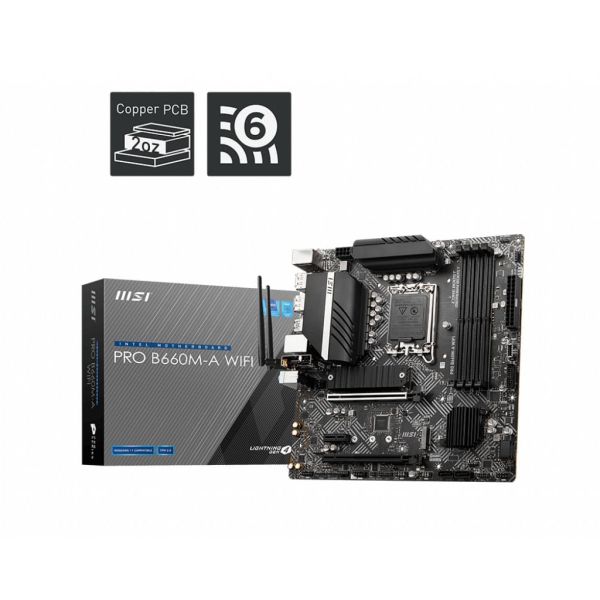

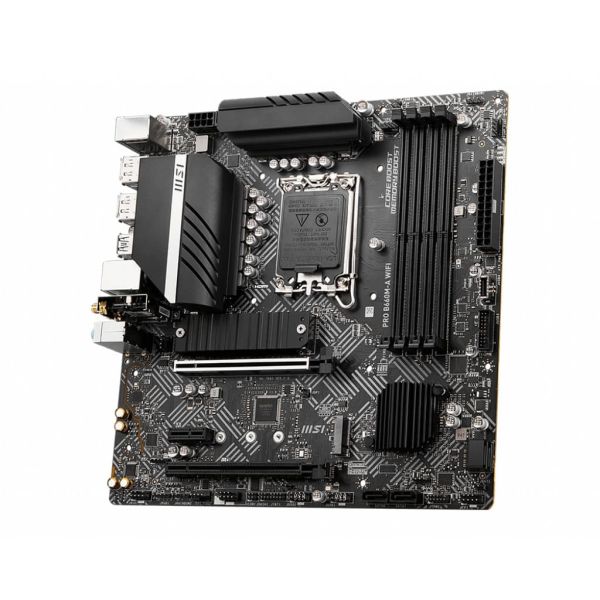

MSI PRO B660M-A WIFI moederbord Intel B660 LGA 1700 micro ATX
MSI PRO B660M-A WIFI, Intel, LGA 1700, Intel® Core™ i9, LGA 1700, DDR5-SDRAM, 128 GB
Niet op voorraad
Fabrikant
MSI
MPN
7D43-006R
EAN
4719072942755
€ 267,00
excl. BTW
€ 267,00
excl. BTW
excl. BTW
MSI PRO B660M-A WIFI moederbord Intel B660 LGA 1700 micro ATX
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6200+(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.
Specificaties
Processor
Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Core™ i9
Supported processor sockets
LGA 1700
Geheugen
Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800 MHz
Maximum intern geheugen*
128 GB
Opslag-controllers
Ondersteunde types opslag-drives
SSD
Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10
Grafisch
Ondersteuning voor parallel processing*
Niet ondersteund
DirectX versie
12.0
Interne aansluitingen
USB 2.0 aansluitingen*
2
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
TPM connector
Ja
12V vermogen-connector
Ja
Aansluitingen achterzijde
Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aansluitingen achterzijde
Aantal HDMI-poorten*
2
Aantal DisplayPorts
2
Netwerk
Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 6 (802.11ax)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Ja
Bluetooth-versie
5.2
Kenmerken
Chipset moederbord*
Intel B660
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
micro ATX
Moederbord chipset familie*
Intel
Ondersteunt Windows
Windows 10, Windows 11
Uitbreidingsmodules
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
2
BIOS
BIOS type*
EFI AMI
Clear CMOS jumper
Ja
Systeem Management BIOS (SMBIOS) versie
3.2
Logistieke gegevens
Code geharmoniseerd systeem (HS)
84733020
Gewicht en omvang
Breedte
244 mm
Diepte
244 mm
Inhoud van de verpakking
Meegeleverde kabels
SATA
Meegeleverde drivers
Ja
