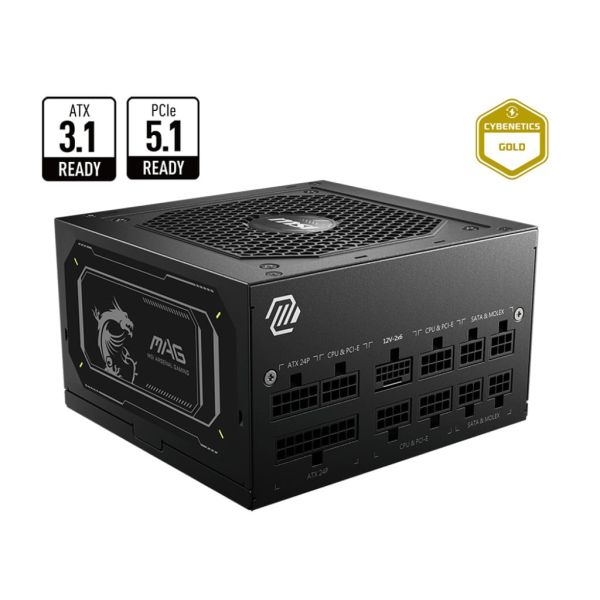

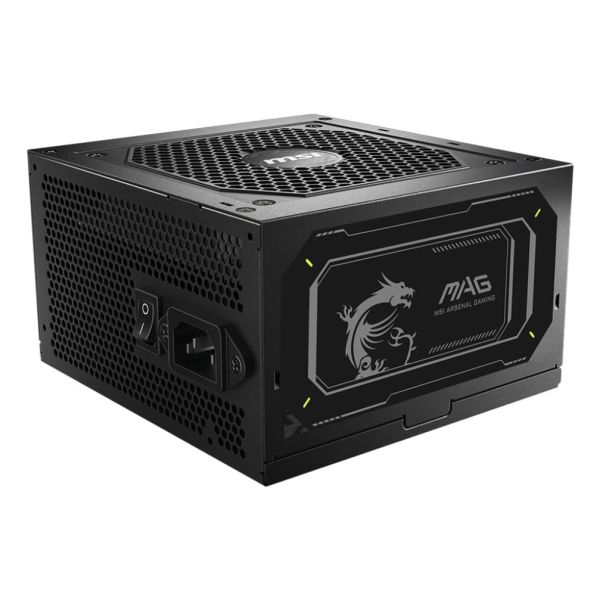

MSI MAG A750GL PCIE5 II power supply unit 750 W 20+4 pin ATX ATX Zwart

MSI MAG A750GL PCIE5 II, 750 W, 100 - 240 V, 47 - 63 Hz, Actief, 110 W, 744 W

Ruim op voorraad

Fabrikant MSI
MPN MAG A750GL PCIE5 I
EAN 4711377246705
€ 115,00 excl. BTW

MSI MAG A750GL PCIE5 II power supply unit 750 W 20+4 pin ATX ATX Zwart

MSI PSU MAG A750GL PCIE5 II

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Energie

Totaal vermogen*
750 W
AC-ingangsspanning*
100 - 240 V
AC-ingangsfrequentie
47 - 63 Hz
Power Factor Correctie (PFC) type
Actief
Gecombineerd vermogen (+3.3V)
110 W
Gecombineerd vermogen (+12V)
744 W
Gecombineerd vermogen (+5V)
110 W
Gecombineerd vermogen (-12V)
3,6 W
Gecombineerd vermogen(+5Vsb)
12,5 W
Max huidige output (+3.3V)
20 A
Max huidige output(+12V)
62 A
Max huidige output (+5V)
20 A
Max huidige output (-12V)
0,3 A
Max huidige output (+5Vsb)
2,5 A
Efficientie
90 procent
Stroomspanning bescherming
Overstroom, Te hoog vermogen, Overspanning, Oververhitting, Kortsluiting, Onder spanning

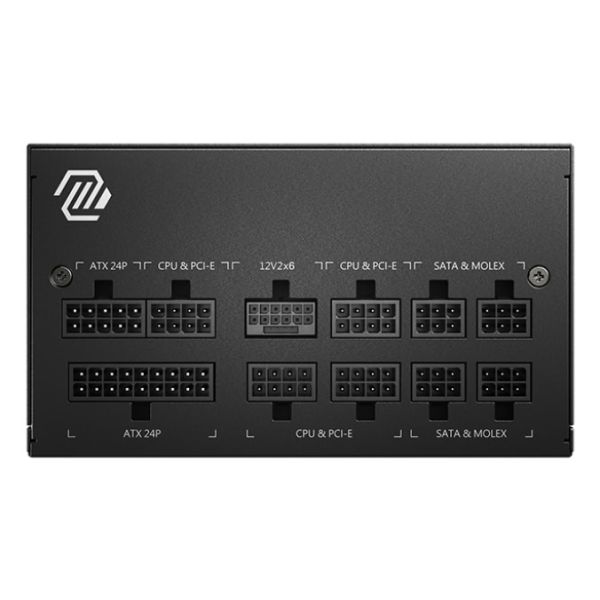

Poorten & interfaces

Motherboard power connector*
20+4 pin ATX
Lengte stroomkabel moederbord
60 cm
Aantal SATA power connectors
8
Lengte SATA-stroomkabel
150,500 mm
Peripheral (Molex) power connectors (4-pin)*
4
Lengte stroomkabel randapparaat (Molex)
500 mm
EPS-voedingsconnector (4+4 pin)
Ja

Poorten & interfaces

PCI Express power connectors (6+2 pin)
3
PCI Express-voedingsconnectoren (16-pins)
1
CPU power connector (4+4 pin)
Ja

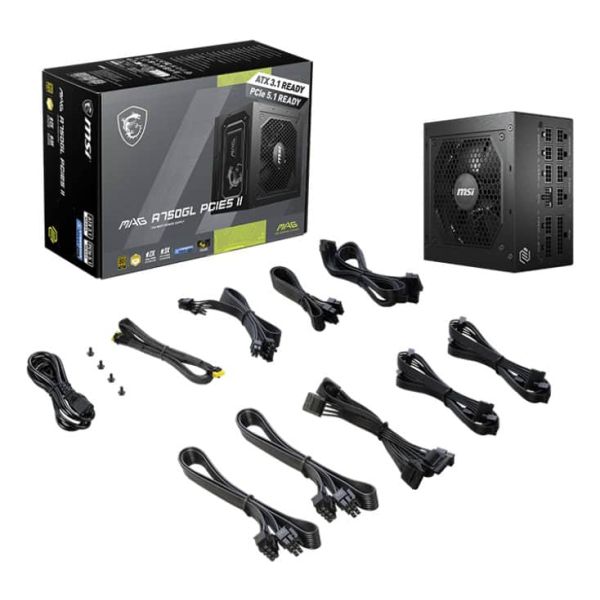

Bekabelingstype
Volledig modulair

Prestatie

80 PLUS certificatie*
80 PLUS Gold
Bedoeld voor*
PC
Vormfactor van de voeding (PSU)*
ATX
ATX version
3.1
Bearing technologie
FDB

Design

Kleur van het product
Zwart
Type koeling
Actief

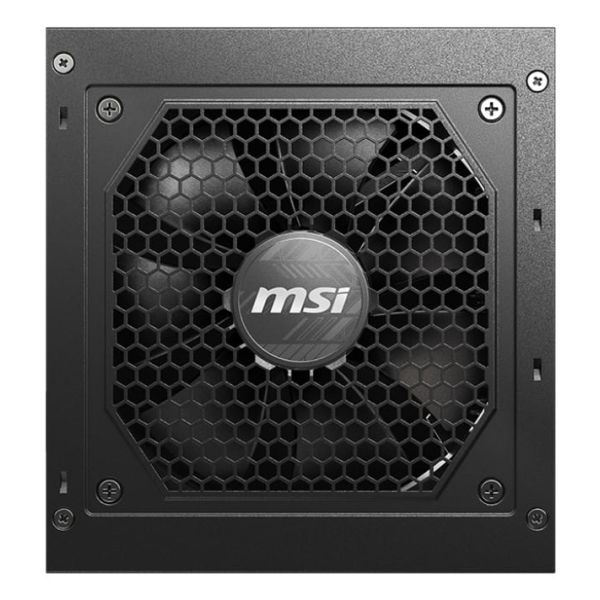

Ventilator diameter
12 cm
Aantal ventilatoren
1 ventilator(en)
Aan/uitschakelaar
Ja

Gewicht en omvang

Breedte
150 mm
Diepte
140 mm
Hoogte
86 mm

Verpakking

Type verpakking
Doos
