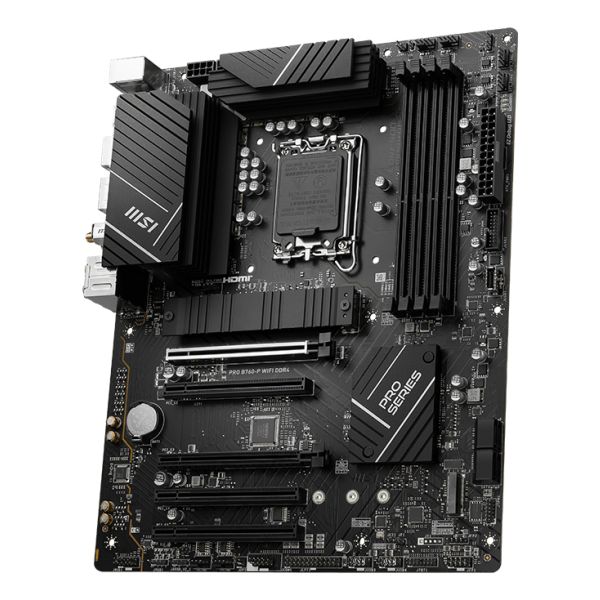

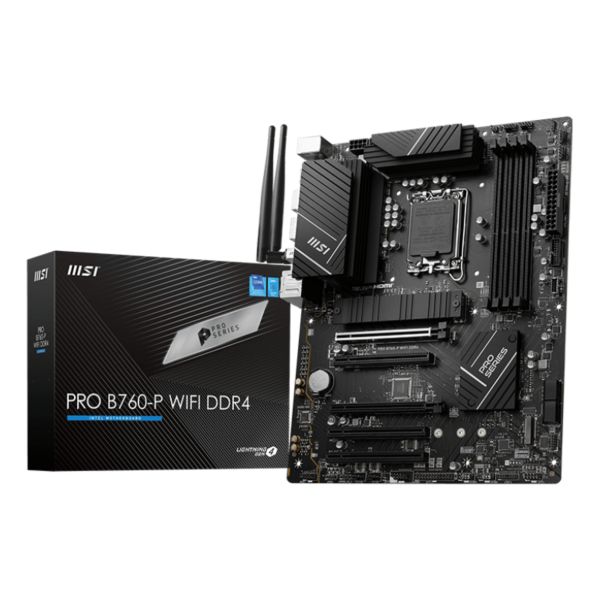

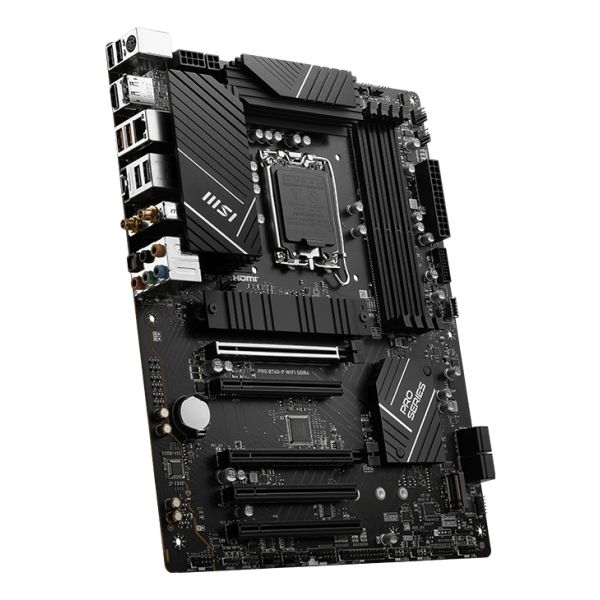

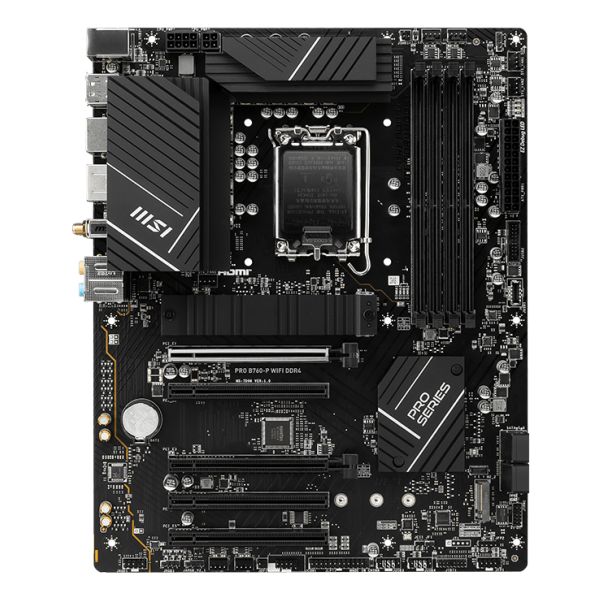

MSI PRO B760-P WIFI DDR4 moederbord LGA 1700 ATX

MSI PRO B760-P WIFI DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR4-SDRAM, 128 GB

Nog 20 beschikbaar

Fabrikant MSI
MPN PRO B760-P WIFI DDR4
EAN 4711377028363
€ 200,00 excl. BTW

MSI PRO B760-P WIFI DDR4 moederbord LGA 1700 ATX

MSI P yta g wna PRO B760-P WIFI DDR4 s1700 4DDR4 DP/HDMI ATX

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
Intel
Processor socket*
LGA 1700
Compatibele processors*
Intel® Celeron®, Intel® Pentium® Gold
Max. aantal SMP-processoren
1
Supported processor sockets
LGA 1700

Geheugen

Ondersteunde geheugen types*
DDR4-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
Non-ECC
Ja
Supported memory clock speeds
2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz
Ondersteunde geheugenkloksnelheid (max)
5333 MHz
Maximum intern geheugen*
128 GB

Opslag-controllers

Ondersteunde opslagstationinterfaces*
M.2, SATA III
RAID support
Ja
Soorten RAID
0, 1, 5, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
4
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Aansluiting voor audiopaneel aan voorzijde
Ja
Voorpaneel-connector
Ja
ATX Power connector (24-pin)
Ja
Aansluiting voor CPU koeler
Ja
TPM connector
Ja
RGB LED-aansluitrail
Ja

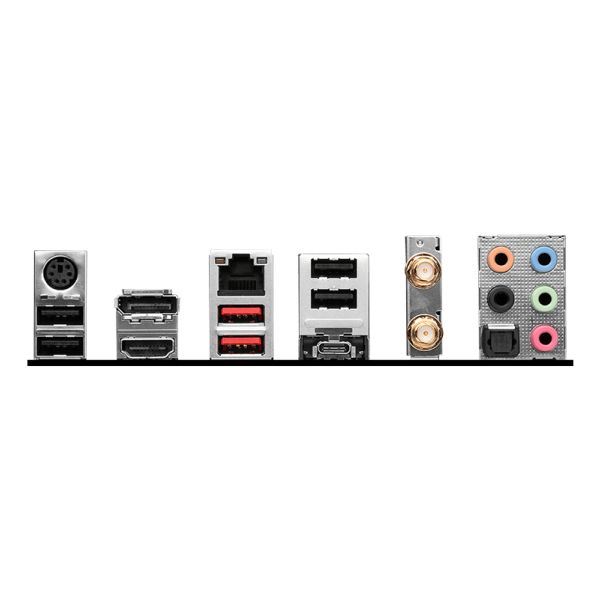

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
2
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
2
Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
Aantal DisplayPorts
1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Bluetooth
Ja

Kenmerken

Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
Intel
Type stroombron
ATX
Ondersteunt Windows
Windows 10, Windows 11

Uitbreidingsmodules

PCI Express x1 (Gen 3.x) slots
2

BIOS

BIOS type*
UEFI AMI
Grootte BIOS-geheugen
256 Mbit
Systeem Management BIOS (SMBIOS) versie
3.5

Gewicht en omvang

Breedte
243,8 mm
Diepte
304,8 mm
