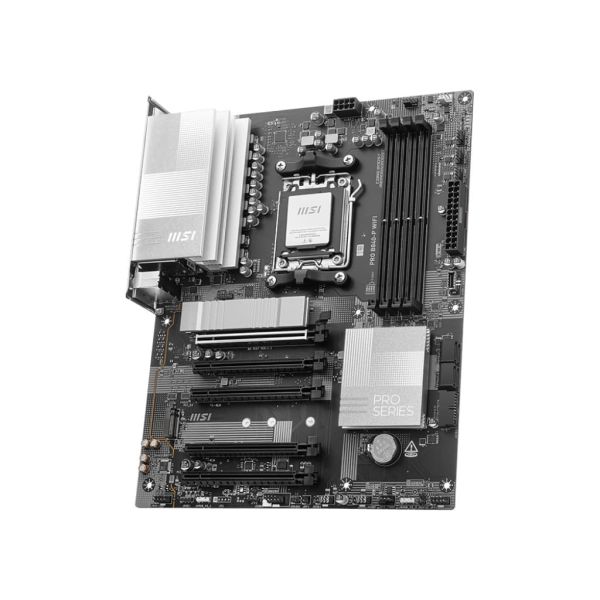

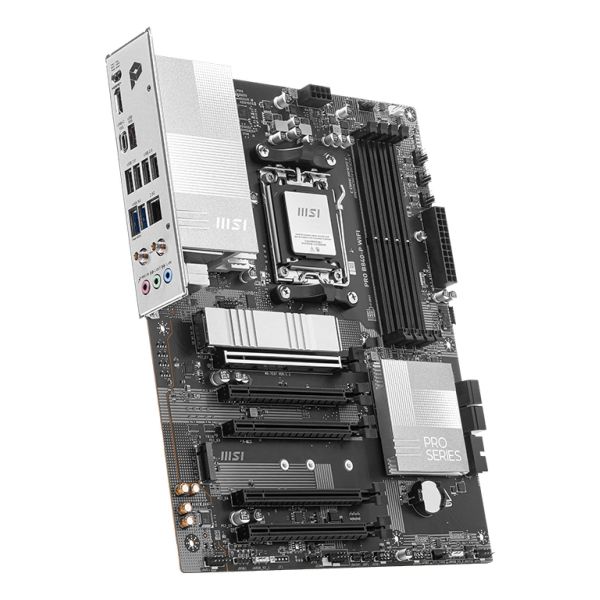

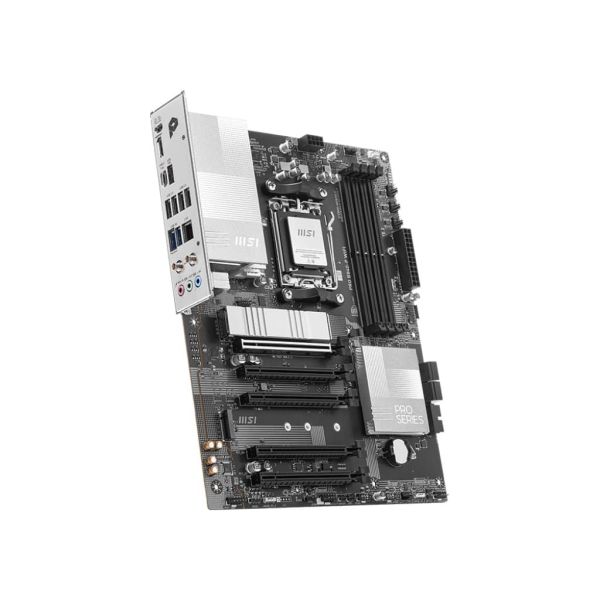

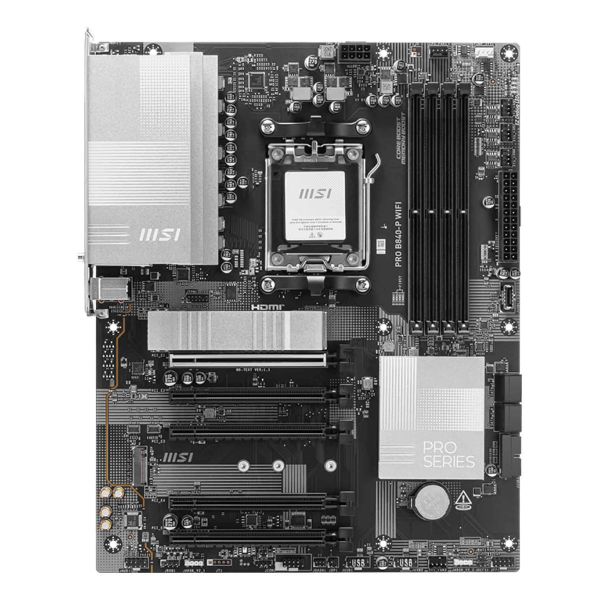

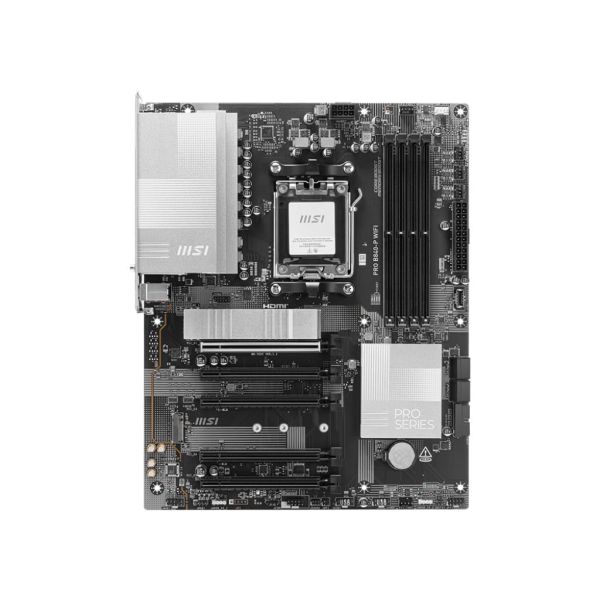

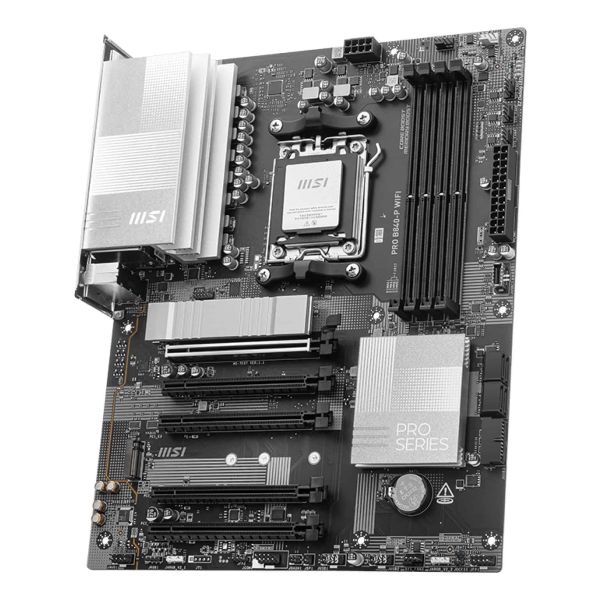

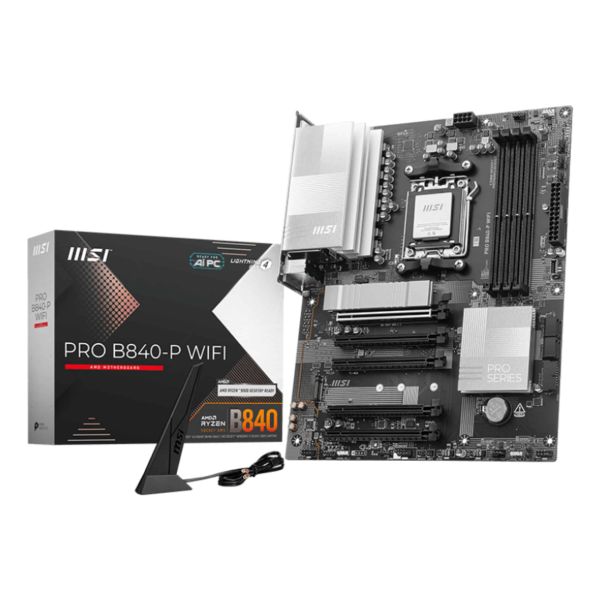

MSI PRO B840-P WIFI moederbord AMD B840 Socket AM5 ATX

MSI PRO B840-P WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256 GB, DDR5-SDRAM

Nog slechts 7 beschikbaar

Fabrikant MSI
MPN PRO B840-P WIFI
EAN 4711377286596
€ 150,00 excl. BTW

MSI PRO B840-P WIFI moederbord AMD B840 Socket AM5 ATX

MSI AM5 PRO B840-P WIFI (ext)

Disclaimer
Beat-it.nl is niet verantwoordelijk voor eventuele fouten in de documentatie van producten.

Specificaties

Processor

Processorfabrikant*
AMD
Processor socket*
Socket AM5
Compatibele processors*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Maximaal intern geheugen ondersteund door processor
256 GB

Geheugen

Ondersteunde geheugen types*
DDR5-SDRAM
Aantal geheugenslots*
4
Geheugen slots type
DIMM
Geheugen kanaal
Dubbelkanaals
ECC-compatibiliteit
Niet-ECC
Supported memory clock speeds
4800,5600,8000 MHz
Ondersteunde geheugenkloksnelheid (max)
8000 MHz
Maximum intern geheugen*
256 GB

Opslag-controllers

Ondersteunde types opslag-drives
HDD & SSD
Ondersteunde opslagstationinterfaces*
M.2, Micro SATA III
Maximum aantal HDD's per behuizing
4
Aantal storage drives ondersteund
6
RAID support
Ja
Soorten RAID
0, 1, 10

Interne aansluitingen

USB 2.0 aansluitingen*
4
USB 3.2 Gen 1 (3.1 Gen 1)-aansluitingen*
2
USB 3.2-connectoren (3.1 Gen 2)*
1
Aantal SATA III connectors*
4
Totaal aantal SATA-connectoren
4
Aantal CPU-ventilatoraansluitingen
1
Aansluitingen voor behuizingsventilatoren
5
Aantal waterpompaansluitingen
1
RGB LED-aansluitrail
Ja
Aantal RGB LED-pinheaders
3

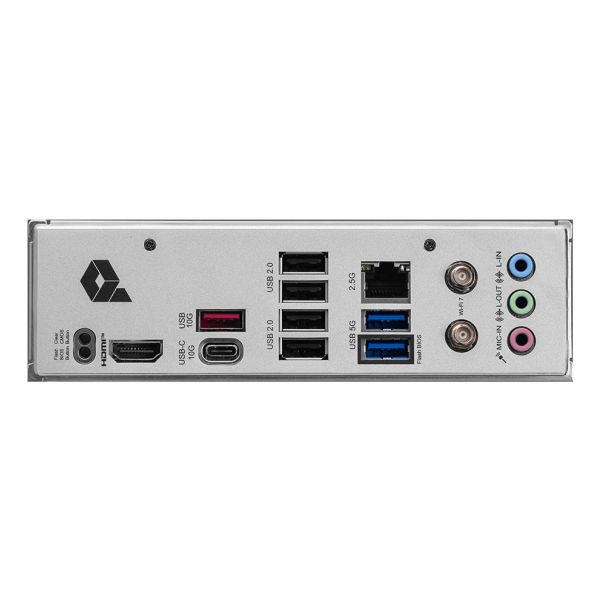

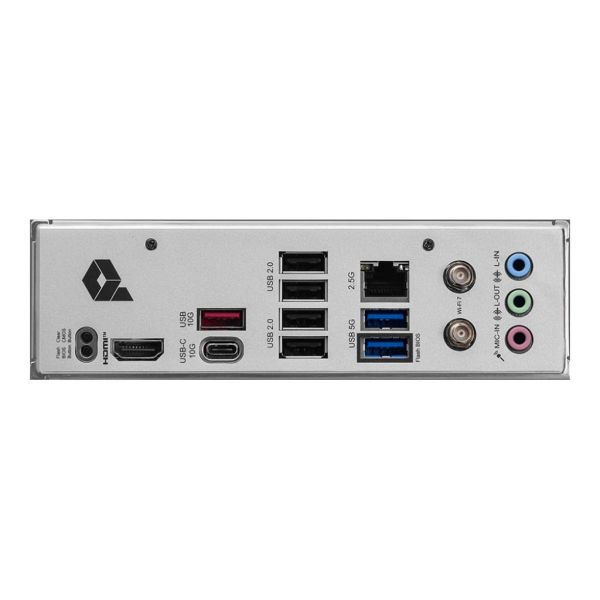

Aansluitingen achterzijde

Aantal USB 2.0-poorten*
4
Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A*
2
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type A*
1
Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C*
1

Aansluitingen achterzijde

Aantal Ethernet LAN (RJ-45)-poorten*
1
Aantal HDMI-poorten*
1
HDMI versie
2.1

Netwerk

Ethernet LAN
Ja
Ethernet interface type
2.5 Gigabit Ethernet
Wifi*
Ja
Wifi-standaard
Wi-Fi 7 (802.11be)
Wi-Fi-standaarden
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Ja
Bluetooth-versie
5.4

Kenmerken

Chipset moederbord*
AMD B840
Audiochip
Realtek ALC897
Audio-uitgangskanalen*
7.1 kanalen
Kleur van het product
Zwart
Component voor*
PC
Moederbord form factor*
ATX
Moederbord chipset familie*
AMD
Ondersteunt Windows
Windows 11 x64

Uitbreidingsmodules

PCI Express x16 (Gen 3.x) slots
4
PCI Express x16 (Gen 4.x) sleuven
1
Aantal M.2 (M) slots
2
1e M.2 grootste sleutelgrootte
2280
1e M.2 hoogste PCI Express-generatie
4.0
2e M.2 grootste sleutelgrootte
22110
2e M.2 hoogste PCI Express-generatie
4.0

BIOS

BIOS type*
UEFI AMI
ACPI version
6.5
Systeem Management BIOS (SMBIOS) versie
3.7

Gewicht en omvang

Breedte
243,8 mm
Diepte
304,8 mm
